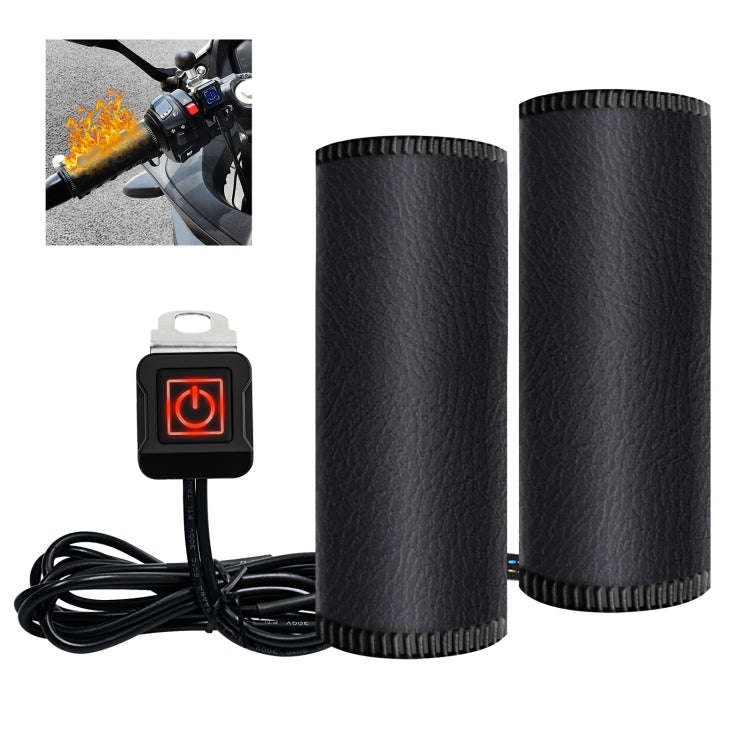

ZH-1314A1 Strap Type Motorcycle 12V Heating Handle SAE Port Quick Installation and Removal Handle

1. With reverse connection protection and anti-surge protection.
2. Pure rubber PVC fabric, waterproof, abrasion-resistant, tear-resistant, anti-inward fold, anti-aging, water-alkali resistance
3. Built-in intelligent temperature control chip, five-speed adjustable temperature, intelligent temperature control is more convenient.

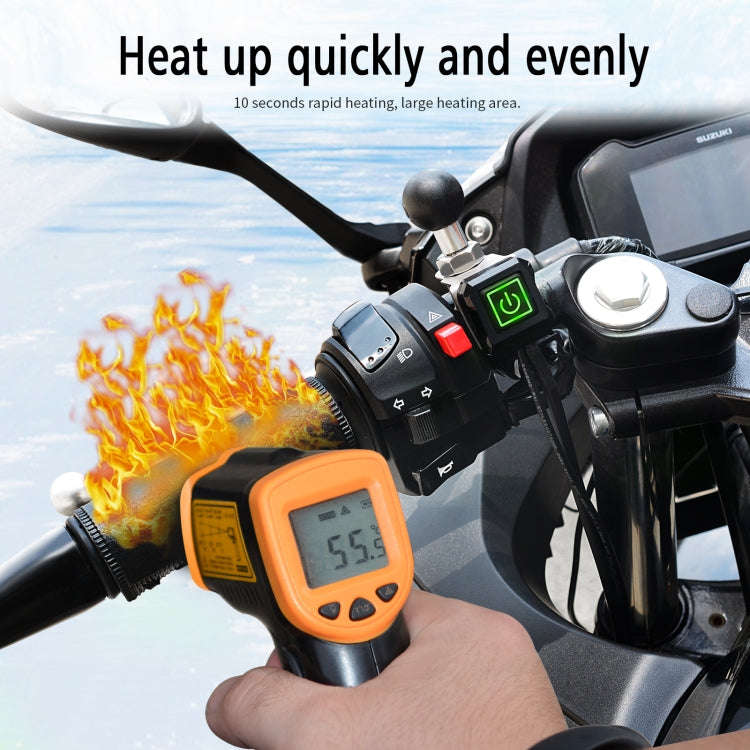

4. Fast heating in 10 seconds, large heating area.

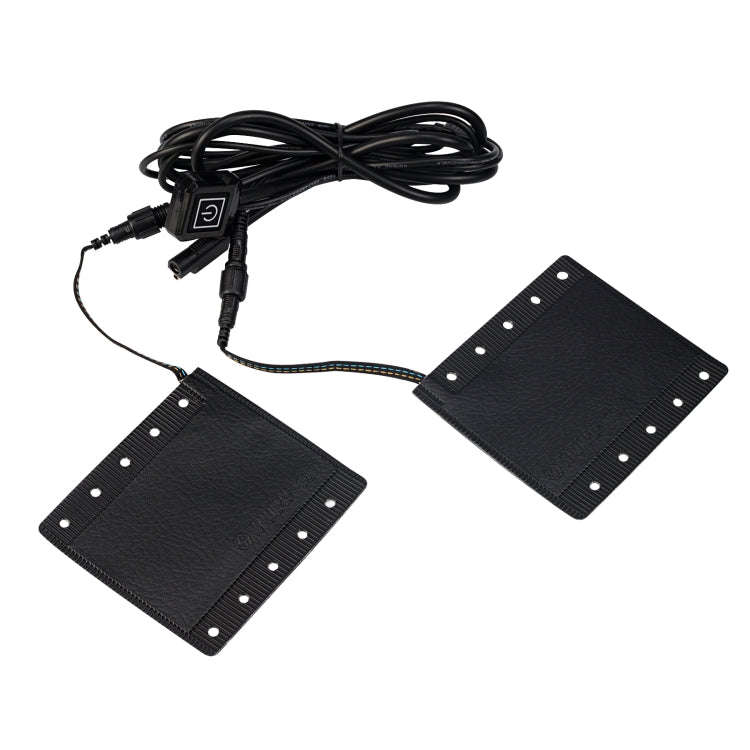

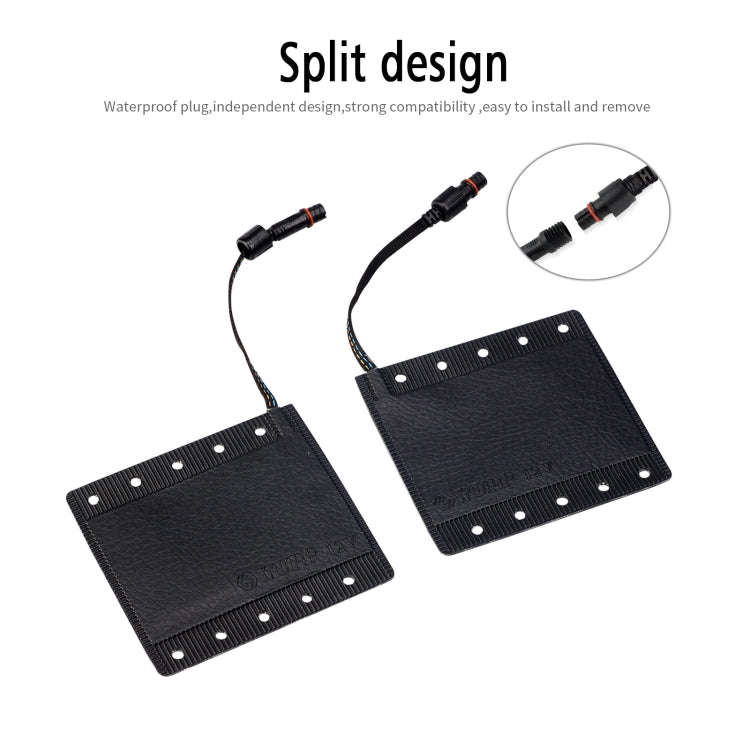

5. The heating piece is fixed with straps, which is convenient and quick, and does not damage the handlebars.

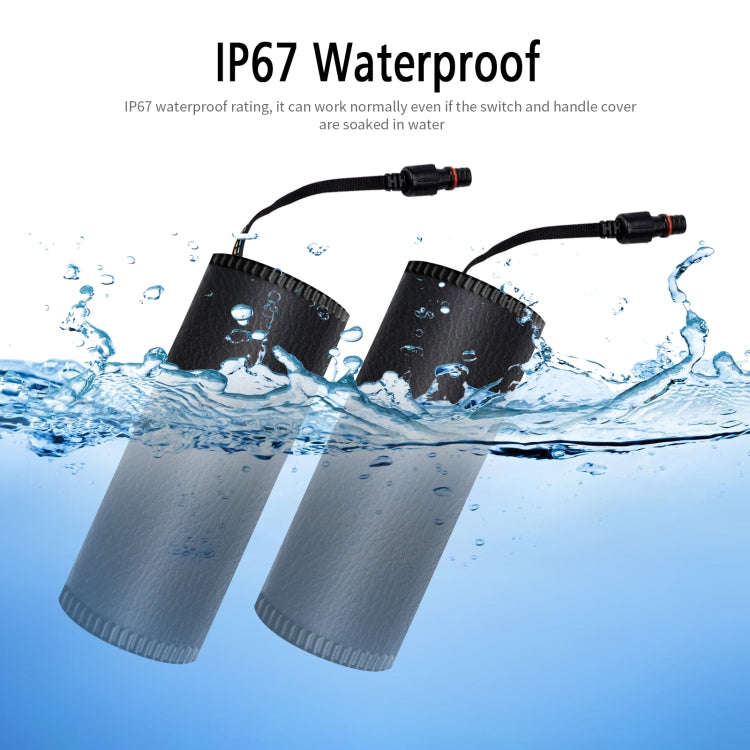

6. IP67 waterproof level, even if the switch and the handle cover are soaked in water, they can work normally. When the handle cover needs to be cleaned, just unplug the plug to wash it, which is very convenient.

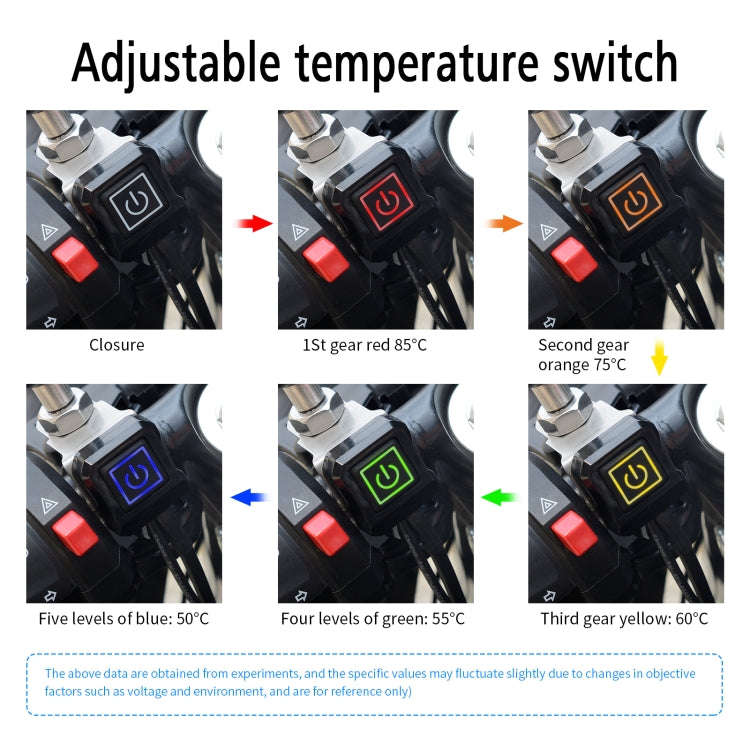

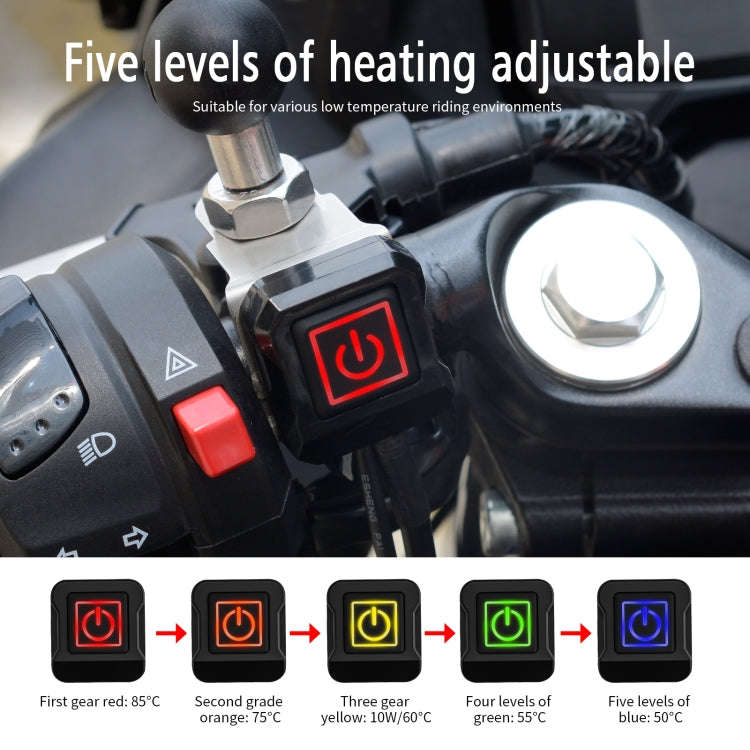

7. Product power and temperature control value: first gear (red): 18W/85 degrees Celsius; second gear (orange): 14W/75 degrees Celsius; third gear (yellow): 10W/60 degrees Celsius; fourth gear (green): 8W/ 55 degrees Celsius; fifth gear (blue): 6W/50 degrees Celsius

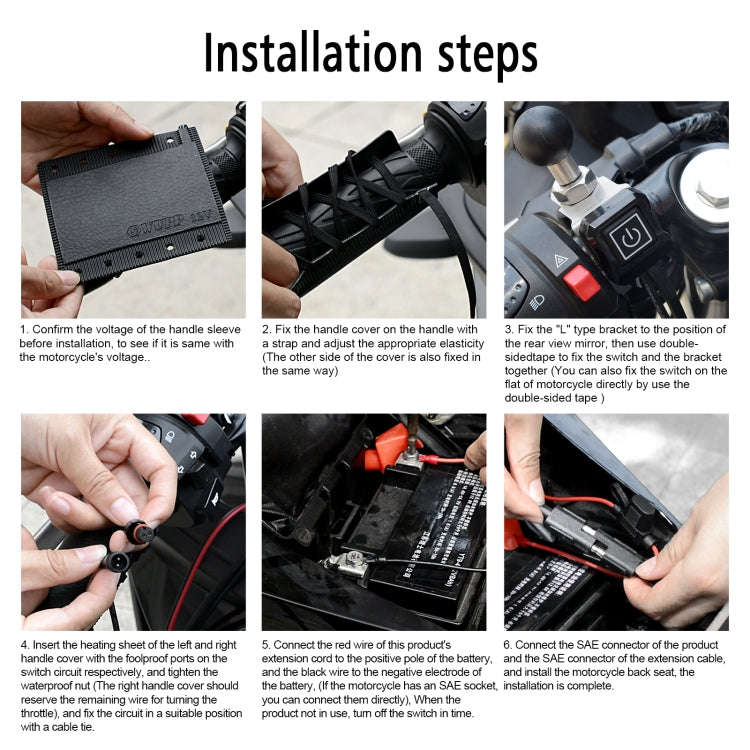

8. Wiring method:
(1). The red wire is connected to the positive electrode of the battery, and the black wire is connected to the negative electrode of the battery.
(2). If the original car has an SAE plug, you can directly plug the SAE plug on the line into the SAE plug of the original car.
9. Parameters:
Input voltage: DC12V
Working voltage: DC 12.2V
Heating sheet and strap size: length 10.5cm, width 9.5cm, strap length 64cm
Fuse: 5A
Material: Fabric: Pure rubber PVC Band: Polypropylene Heating sheet: Composite fiber heating wire
Cable length: 9cm (the length of the connecting wire of the heating element) 104cm (the heating element to the switch) 150cm (the switch to the terminal)
