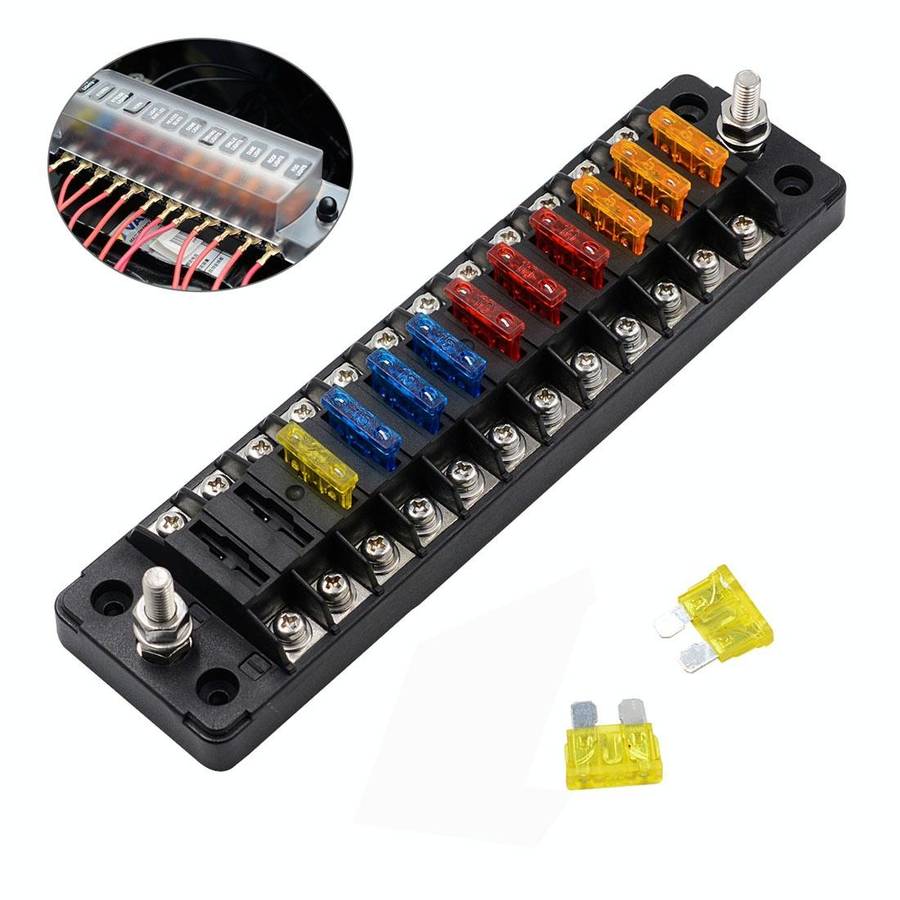

ZH-978A2 FB1902 1 In 12 Out 12 Ways Independent Positive Negative Fuse Box with 24 Fuses for Auto...

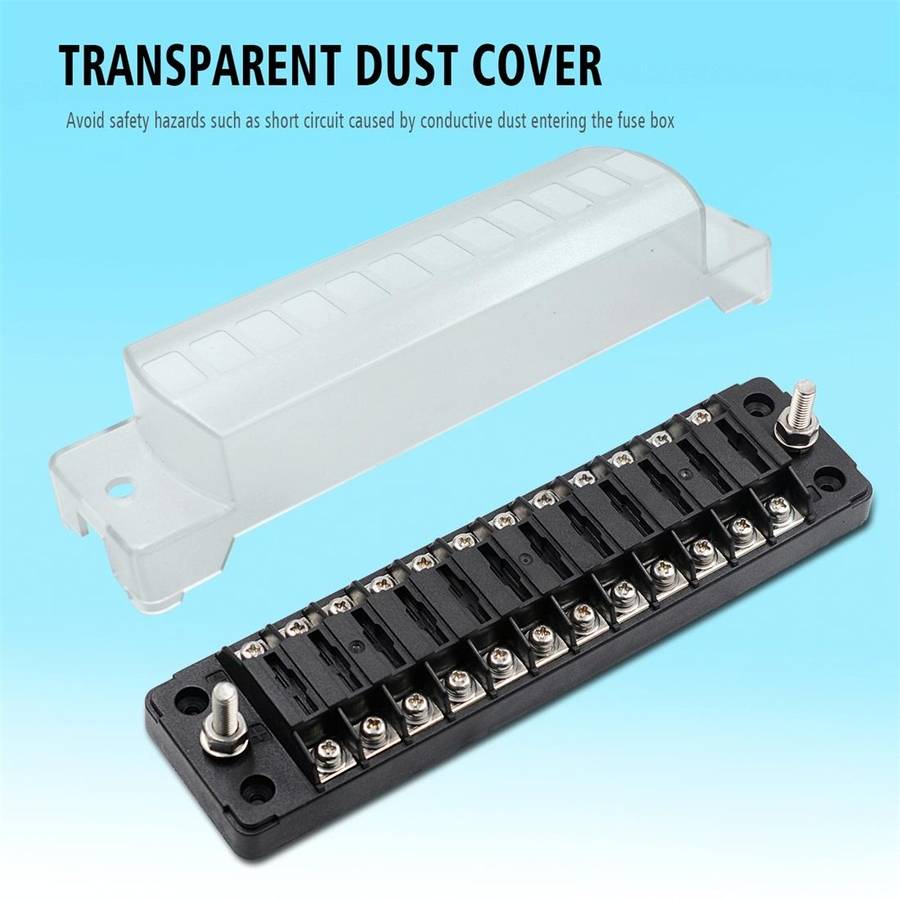

1. Material: PA66 body, PC dust cover, nickel-plated copper terminal block, stainless steel screw, PPx70 sticker
2. Input rated voltage: 32V
3. Input rated current: 75A
4. Maximum output current: 20A per circuit
5. Main line terminal: M6 threaded stud (75A 32V DC max)
6. Main line conductor: # 4-6AWG
7. Single wire terminal: M4 threaded stud (20A 32V DC max)
8. Single wire: # 12-16AWG

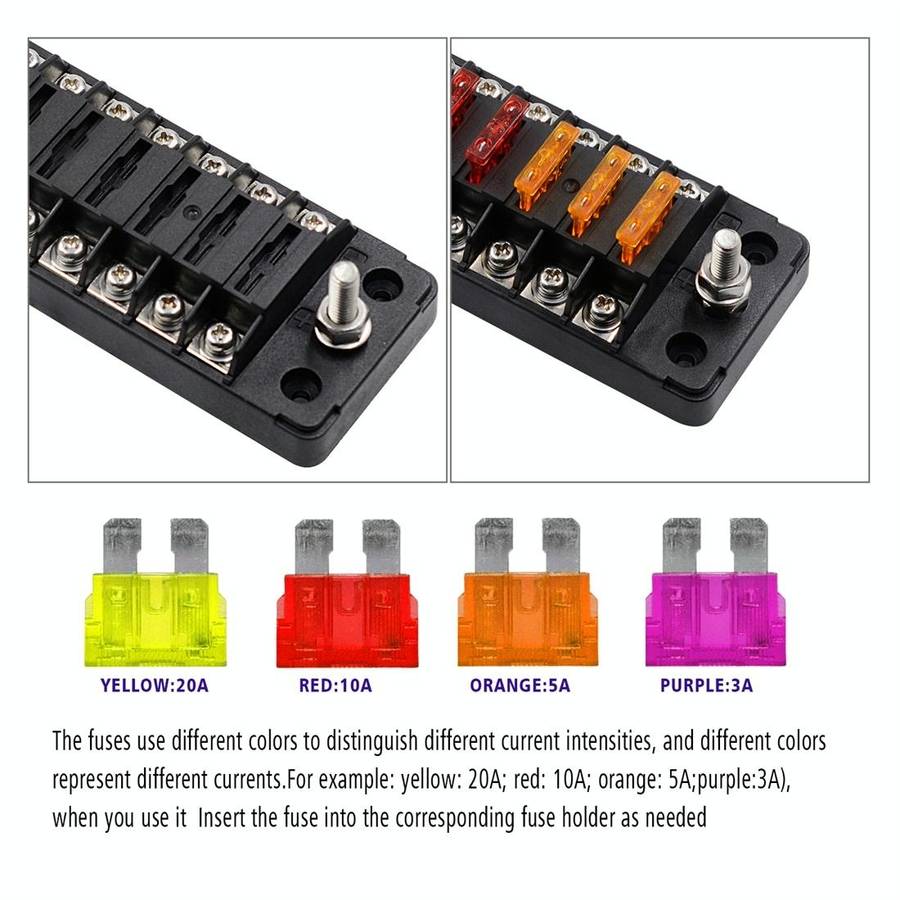

9. Fuse Type: Accepts ATO or ATC fuses from 1A to 20A

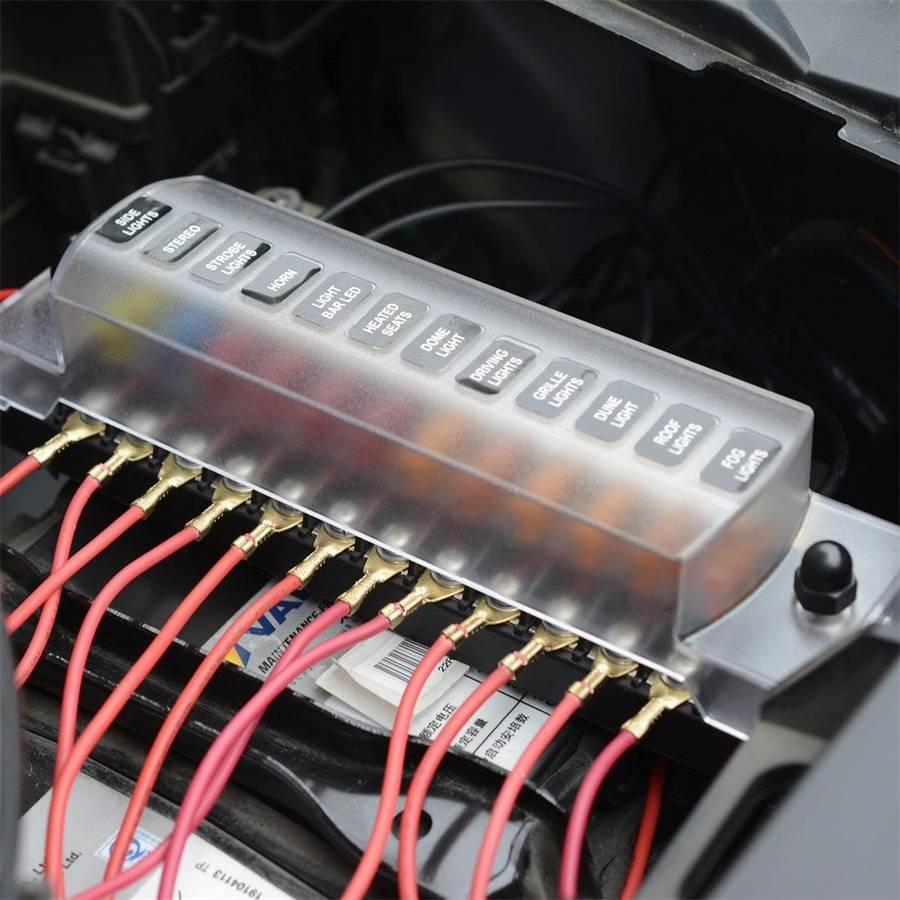

10. Installation scope: can be installed on cars, villas, RVs, buses, yachts, boats, etc.

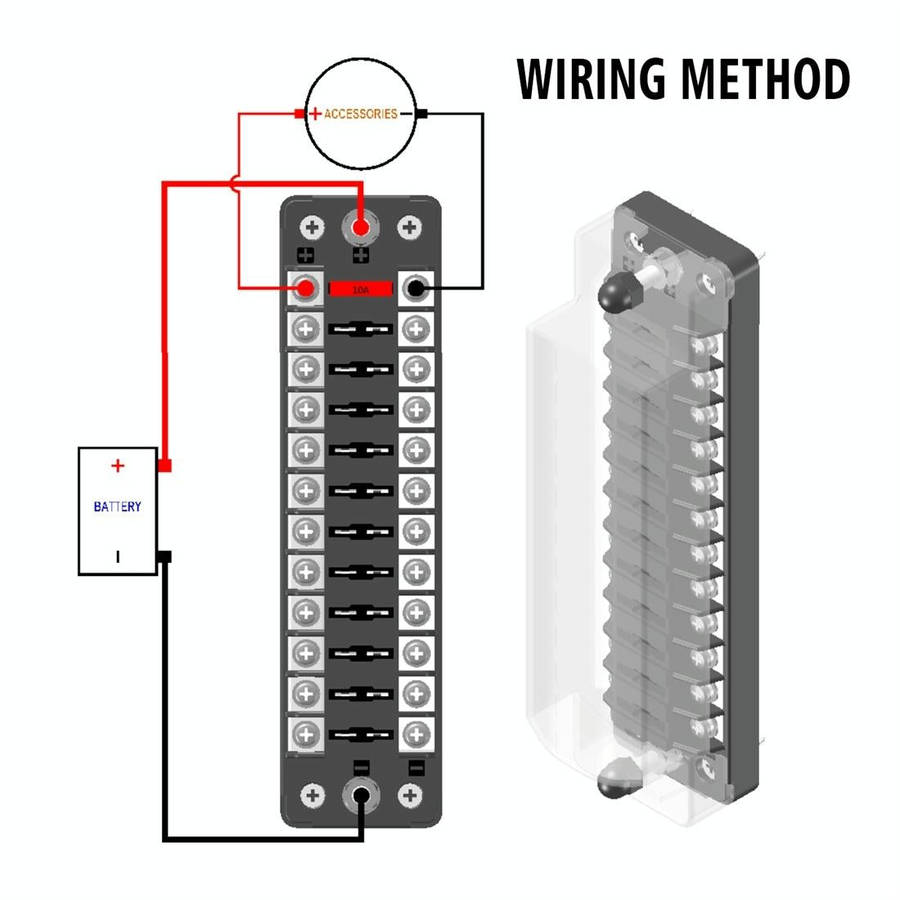

11. Scope of use: It can be directly connected to the line of any electrical appliances on the car / ship, such as: roof lights, car headlights, line of sight lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TV Wait
12. When the circuit is faulty or abnormal, the current is constantly increasing, and the increased current may damage some important or valuable components in the circuit, and it may also burn the circuit or even cause a fire. Fuses protect electronic equipment from damage caused by overcurrent, and can also prevent serious injuries caused by internal faults of electronic equipment. Therefore, each fuse has a rated specification. When the current exceeds the rated specification, the fuse will blow. If the fuse is correctly placed in the circuit, the fuse will fuse and cut off the current when the current abnormally rises to a certain height and temperature, thus protecting the safe operation of the circuit.
13. All fuse clips are nickel-plated copper with corrosion resistance and excellent electrical conductivity
14. All fasteners are stainless steel, the fuse box is input, and the output end is fixed with tightening screws, which can be installed more quickly, and the fuse box is fixed with self-tapping screws, which is simpler and safer to install.
15. Product accessories: sticker X2; self-tapping screw X4; 20A insurance sheet X4; 15A insurance sheet X2; 10A insurance sheet X2; 5A insurance sheet X4

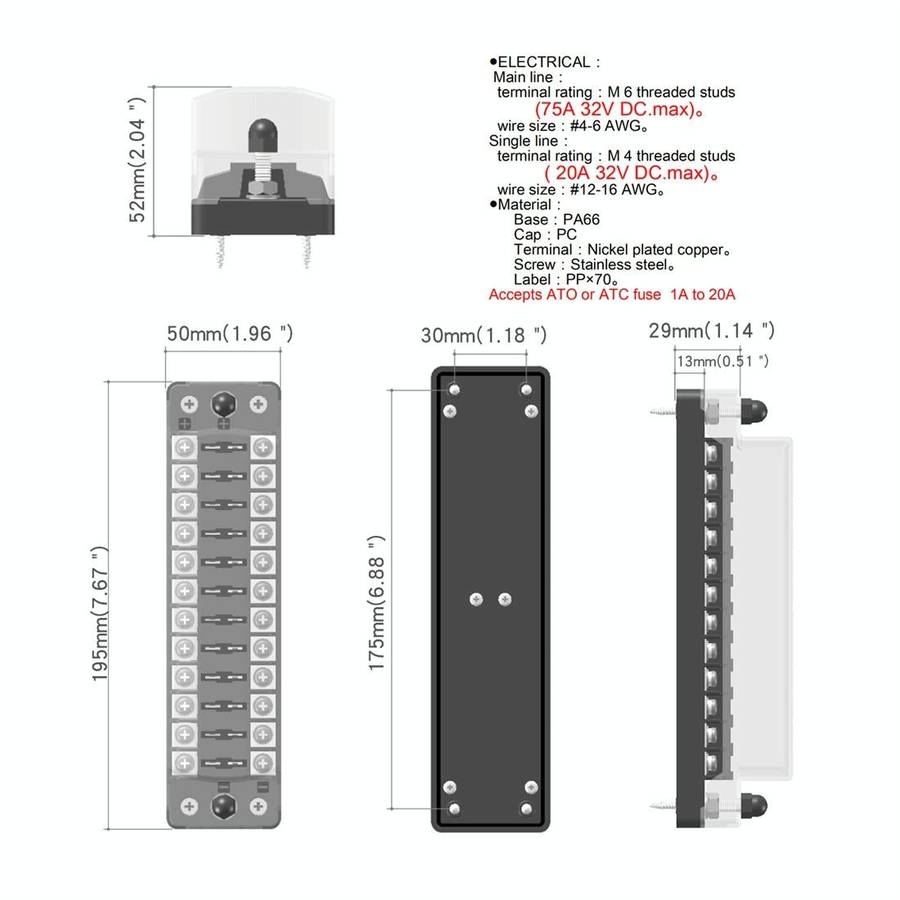

16. Dimensions: 195x50x52mm
17. Net weight: 297G
