Feature:

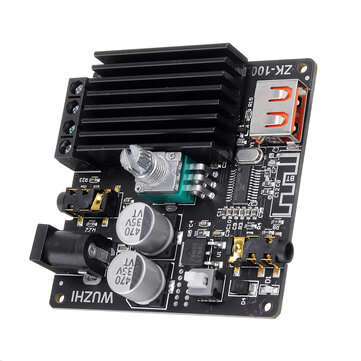

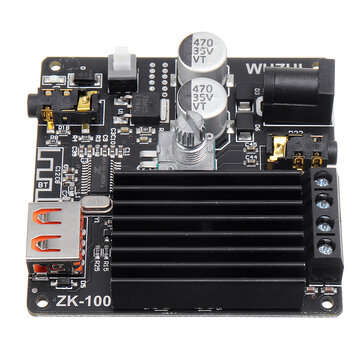

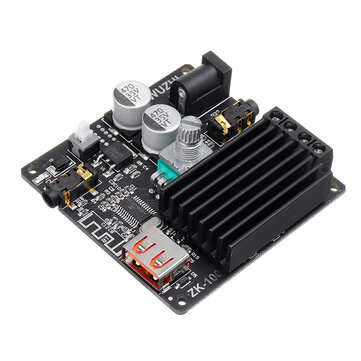

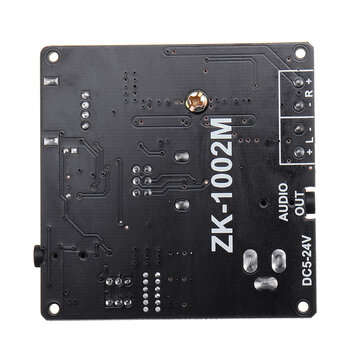

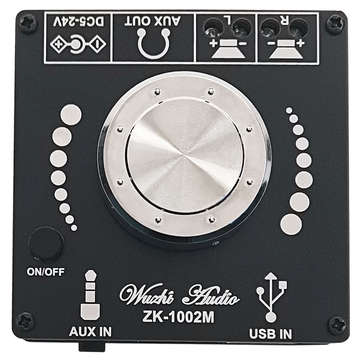

| Product Name | MINI 2*100W Bluetooth5.0 power amplifier module |
| Product model | ZK-1002M |
| Chip model | Domestic amplifier chip |

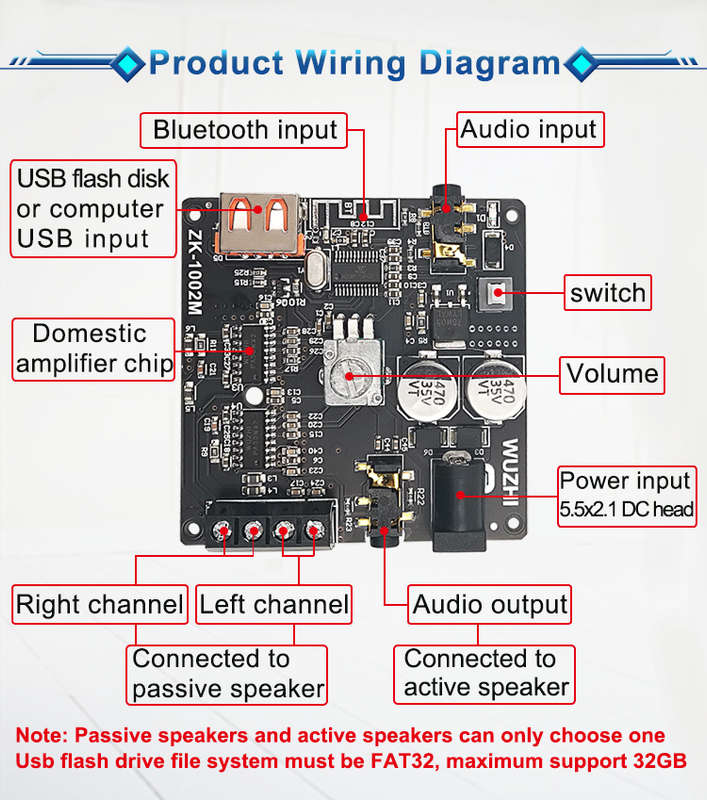

| Audio input | Bluetooth+AUX+USB flash disk+Computer USB(plug and play) |
| Power Supply | DC5-24V(high power recommended high voltage) |
| Adapter speaker | 20-200W;4-8??? |
| Channels | left and right stereo (stereo) |
| Bluetooth version | 5.0(>15 meters without occlusion) |
| Bluetooth name | Wuzhi Audio |
| Protection mechanism | Overheat, Overcurrent, short circuit protection |

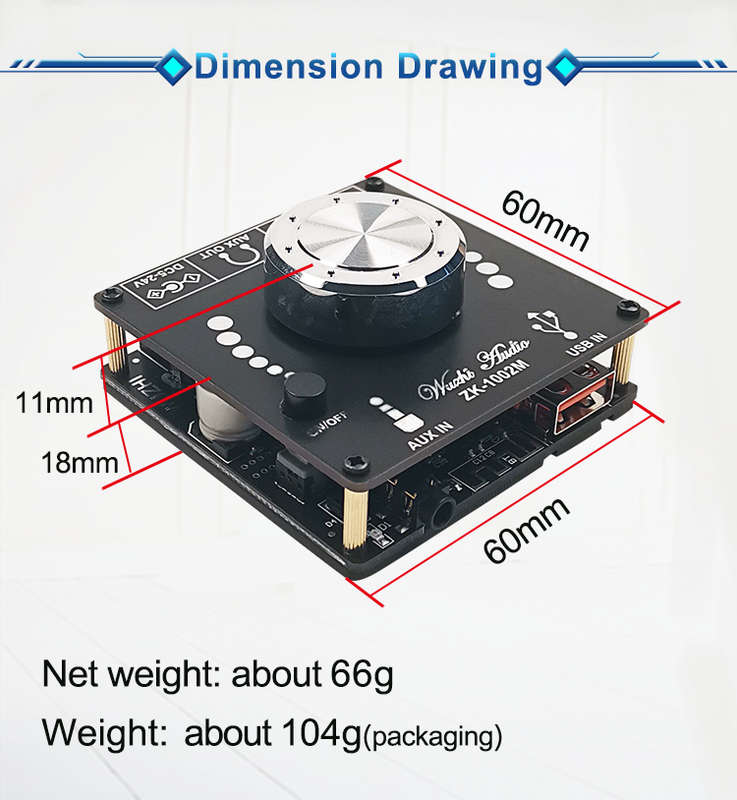

| Product size | 60x60x29mm |
| Product weight | about 104g(packaging) |
| Tip: To have enough output power if the audio input is sufficient and the supply voltage/current is sufficient. The power supply voltage is higher and the relative power will be larger. The speakers with different impedances will have different output power. In the case of sufficient voltage and current, the larger the ohms of the horn, the smaller the relative sound power. Please pay attention! |
Power supply voltage:
12V-----8???/20W+20W, 4???/40W+40W
15V-----8???/35W+35W, 4???/60W+60W
19V-----8???/55W+55W, 4???/80W+80W
24V-----8???/70W+70W, 4???/100W+100W |

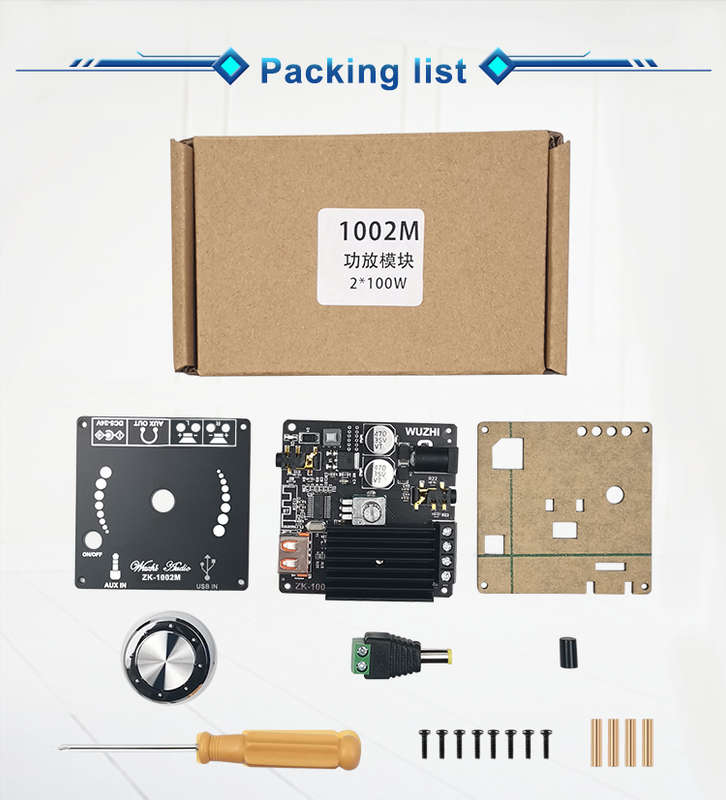

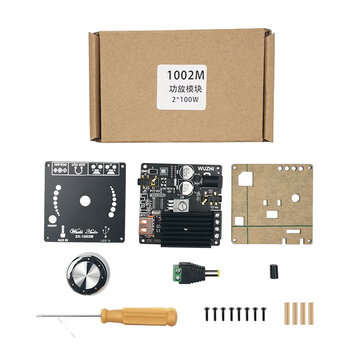

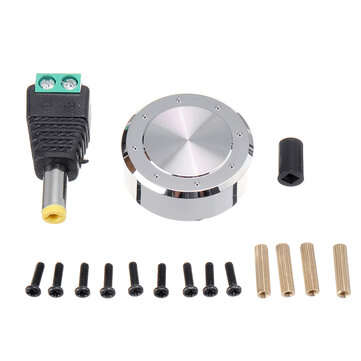

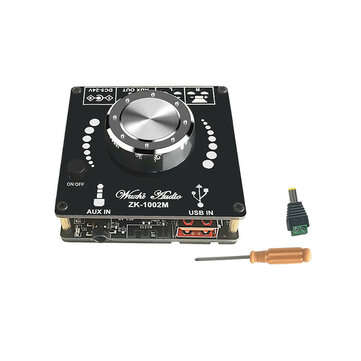

Package includes:
1 x MINI 2*100W Bluetooth5.0 power amplifier module kit
Question and Answer:
1. How to choose a power supply?
The power supply for the module is critical. The power supply requires small output ripple and low internal resistance.
The higher the voltage, the higher the current and the better the output power. If you only have 12V 1A, you can bring a 3-4 inch speaker. If you are 19V 5A or above, there is no problem with 8-10 inches, and the power supply must be highly valued. If the voltage is too low, the sound will be distorted after the sound is amplified. If the current is too small, the speaker will pull the voltage low, work abnormally or the sound quality will deteriorate.
It is recommended to use 18V19V24V power supply with current above 3A. If you only have 9V12V or 1A 2A power supply, it can also be used but the power is small. Please pay attention to the maximum volume when using it, which may affect the sound quality.
2. How to choose a speaker?
The commonly used horn is usually 4 ohm or 8 ohm. If your speaker power is small, it may be used between 10W-30W.
The power supply voltage is small to prevent the amplifier from burning out after burning. For example, select a power supply below 15V. If you are a 50W-100w speaker, don`t worry about the speaker burnout. You can choose 12-24V power supply. The higher the voltage you choose, the louder the output sound or power. The speaker power is not recommended to exceed 100W, otherwise the sound quality will be affected.
3. How to choose Bluetooth or AUX audio input mode?
This audio amplifier module follows the principle of hardware connection first. A successful USB connection is in USB mode, and AUX insertion is in AUX mode.If the USB is not connected and AUX is not plugged in, it is in bluetooth mode, which supports automatic reconnection. Mode toggle with mode prompt.When choosing USB audio input mode, it is important to note that USB can directly connect to the computer and other devices with USB audio output without installing a driver. USB input is lossless input, good sound quality, no interference, no noise.
