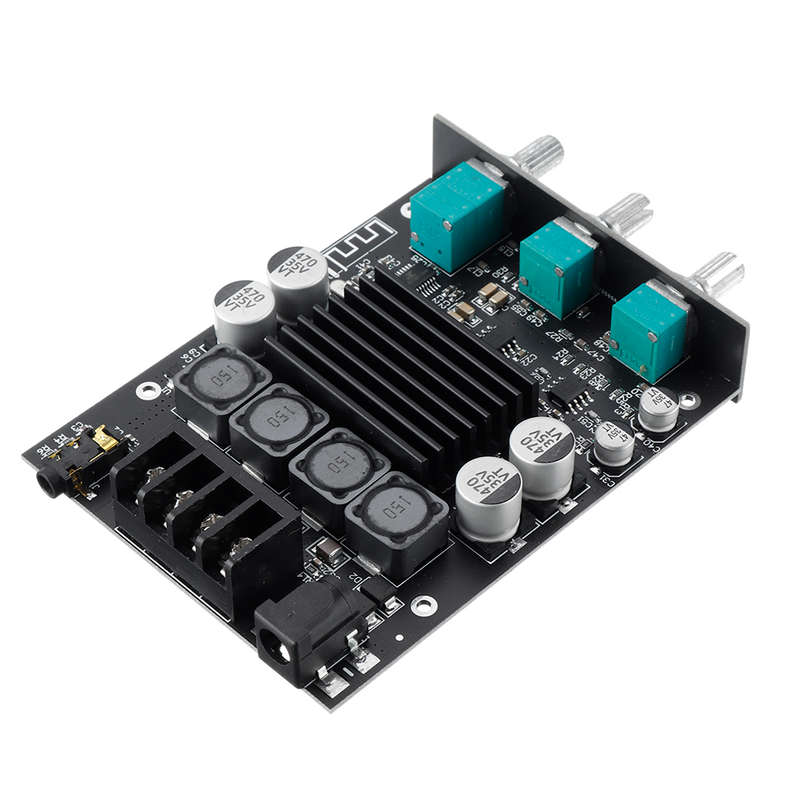

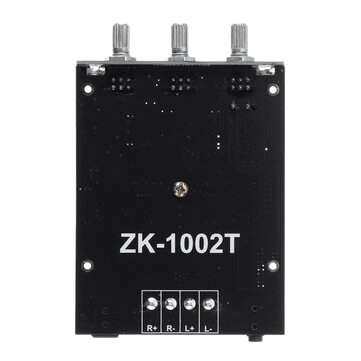

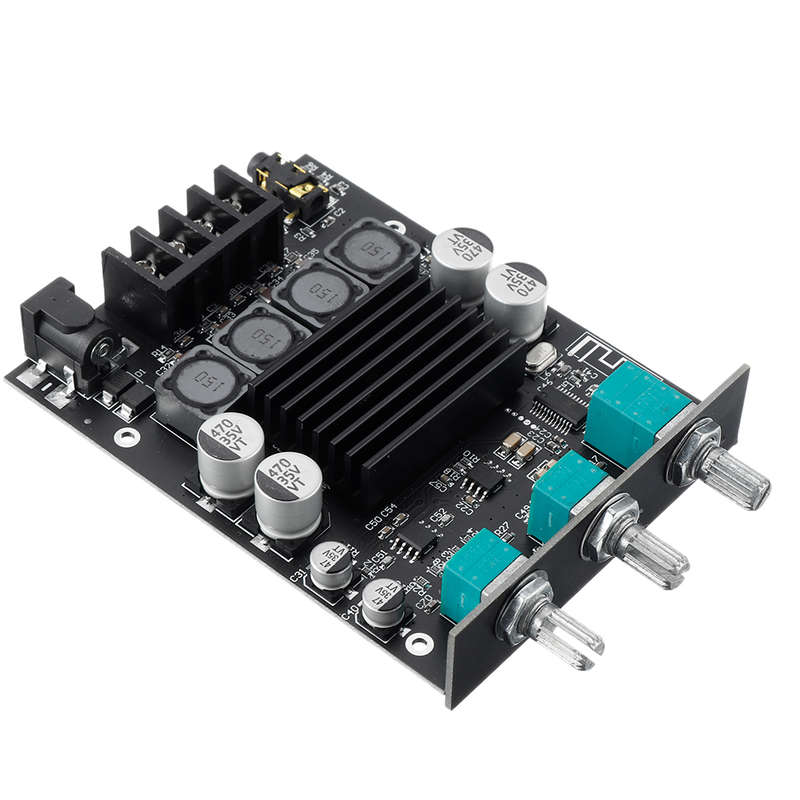

ZK-1002T 100W*2 High and Bass Adjustment bluetooth 5.0 Audio Power Amplifier Board Module Subwoofer

Feature:

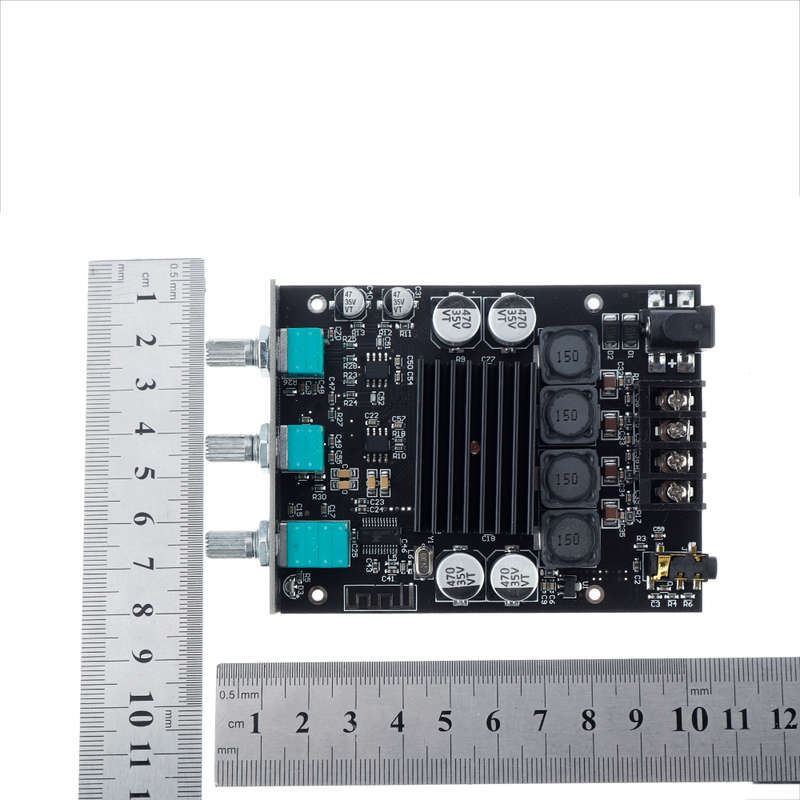

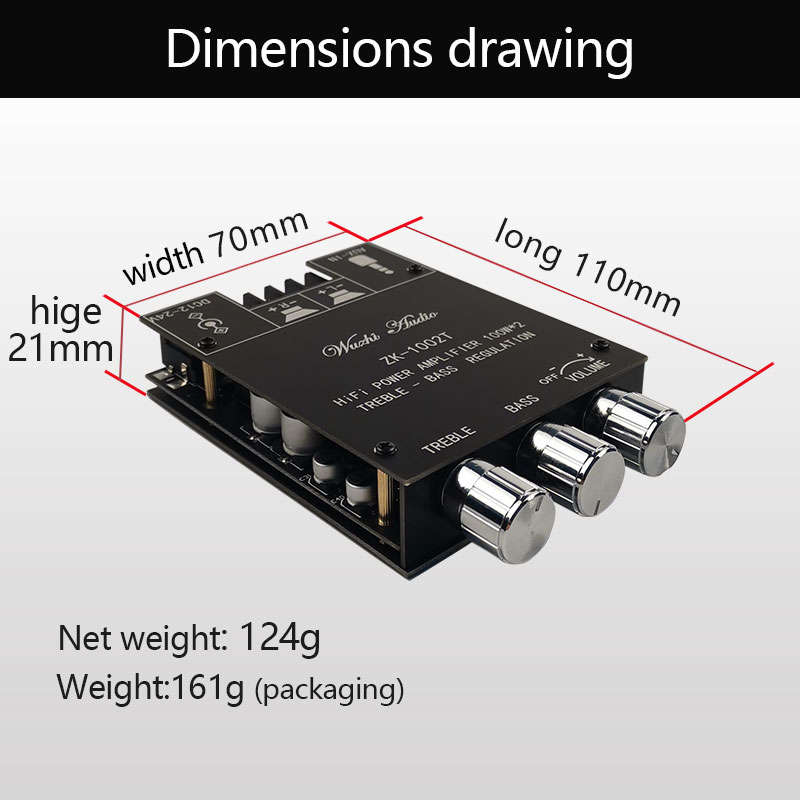

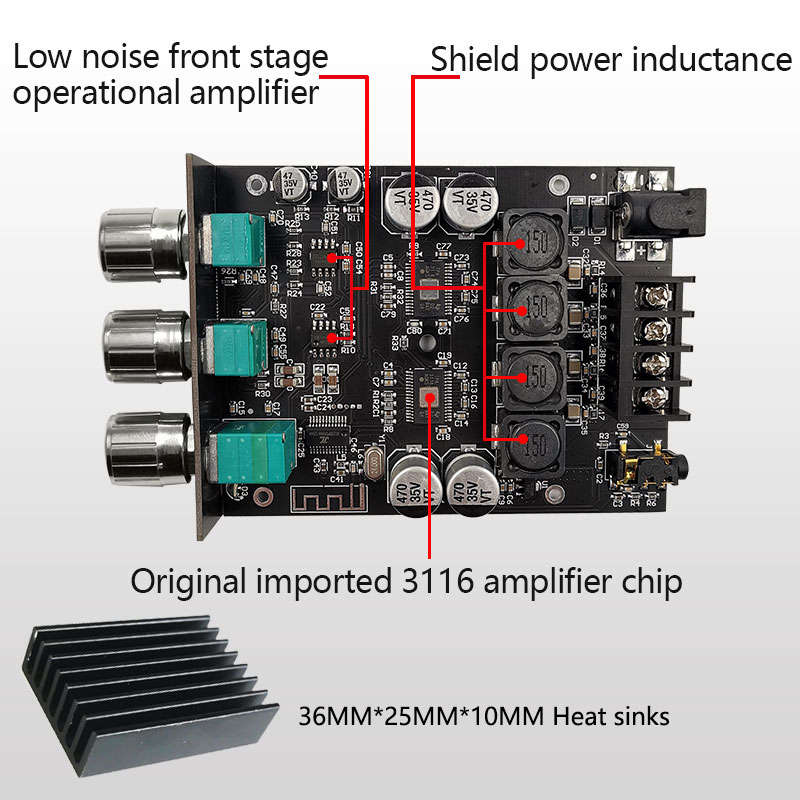

Product Name: 100W*2 Bluetooth audio amplifier module with Tone Product Model: ZK-1002T Bluetooth Version : 5.0 (no shielding, 10 meters) SNR: >90 dB Audio Input: AUX + Bluetooth Channel: 2.0 (stereo) Chip Solution : TPA3116D2 (with AM interference suppression) Power Range : DC12-24V / 5A above (high power recommended high voltage) Adapter Speaker: 20W-200W, 4~8Q Output Power: 20W*2 @12V,8Q 35W*2 @12V,4Q 35W*2 @ 19V,80 60W*2 @19V,4Q 50W*2 @24V,8Q 100W*2 @24V,4Q Protection Mechanism : overvoltage, undervoltage, overheating, DC detection, short circuit protection Product Dimensions: 110mm*70mm*21mm /4.33in*2.76in*0.83in Package Weight: 161 g / 0.355 lb
PS:? In the audio input is enough, the supply voltage/current is enough, there will be enough output power!? The higher the supply voltage, the greater the output power. The smaller the im-pedance of the speaker, the greater the output power! Please ensure that the power of the amplifier.

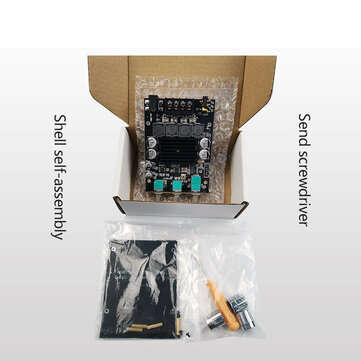

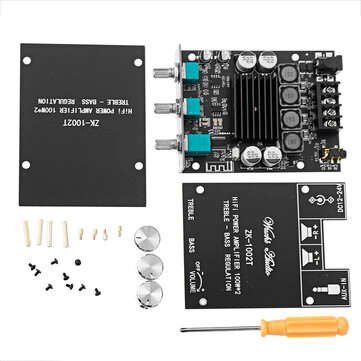

Package includes:

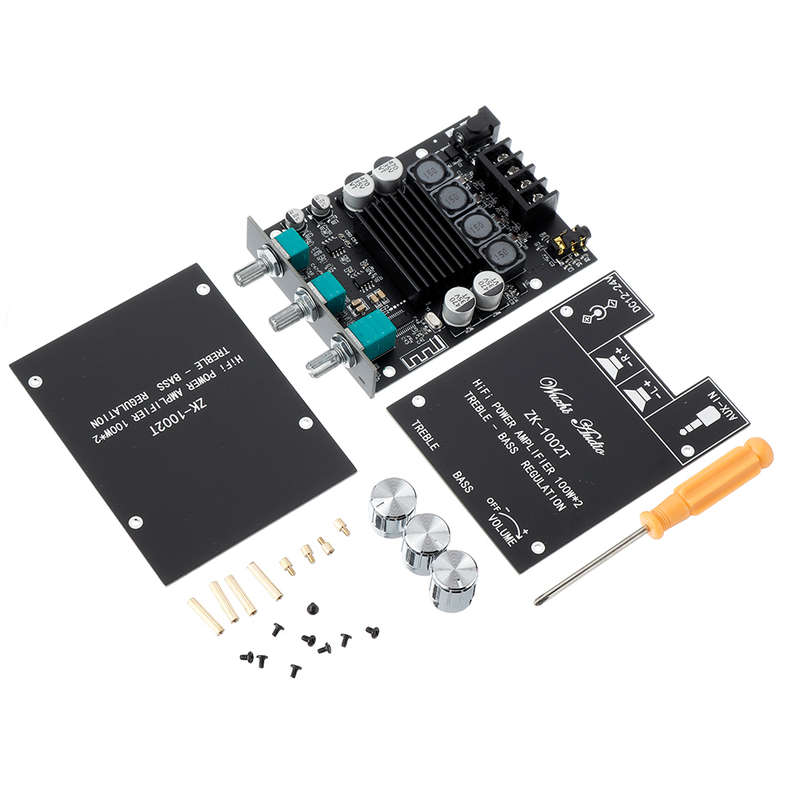

1 x 100W*2 Bluetooth audio amplifier module with Tone
