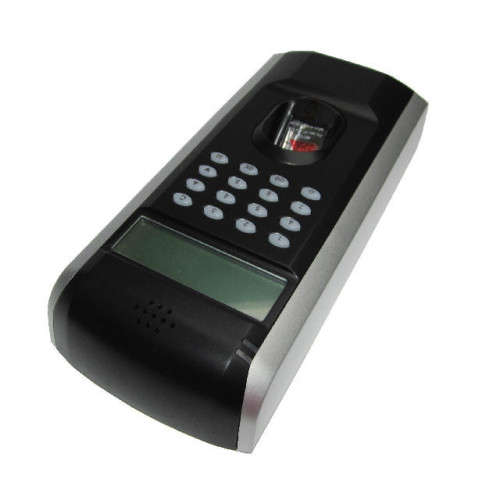

ZKSoftware F7 Biometric Fingerprint Access Control + Attendance Time Clock w/ TCP / IP (Black)..!
Introduction
The F7 is a professional, complete biometric identification device for both Access Control and staff
Attendance Time Clock. This new good quality biometric console used for access control and employee attendance management. It can work either as standalone or by connecting to a computer PC (Windows). You don't have to attach it to a computer in order to use it, set it up or program it. It can support access control. You can set the door to open at different times and by certain number of people. It will raise an alarm when someone tries to destroy it or wrongly close/open the door that violates the pre-programmed instructions in the console. It supports TCP/IP communication interface to connect to a computer PC. Will also connect to your router/switches/etc. so that any computer with privileged password can remotely change the setting in the console. It takes care of access control with ZK Software biometric reader that offers the flexibility to be installed as standalone or with any third party panel that supports 26-bit Wiegand. Fast, reliable performance combined with affordability gives ZK readers the competitive edge. Each reader has the capacity to store up to 2200 fingerprint templates and 50000 transactions. Enrolling users is fast and easy since it is equipped with a user-friendly keypad and display. Managing our readers is also simple. All our readers are easily accessed through a TCP/IP or serial port, with the ability to automatically update and synchronize when networked together. It is a widely used Access Control in the office/home. Made from carefully selected and stable original parts and strictly following the International Security Product Standard. This is a perfect product for the office, factory, hotel, school, home and business etc.
Highlights
Fingerprint reader w/ durable highly accurate ZK optical sensor
No need to enter PINs
Supports 50 time zones, 5 groups and 10 unlock combinations
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm contacts
Operates stand-alone without computer
Real-time 1-touch data export to 3rd party hosted & non-hosted applications
Audio-Visual indications for acceptance & rejection of valid and invalid fingerprints
Optional heated/unheated door enclosure available
Capacity to store 2200 templates and 50000 transactions
Specifications
Capacity
Templates: 2200
Transactions: 50000
Verification/Identification
Matching: 1:N up to 2200 templates
Verification time: <= 1 second
Identification time: <= 2 seconds
FRR: <= 1%
FAR: <= 0.001%
Display
LCD2 x 16 inch Character backlit LCD Display
Environmental
Oper. Temperature 0~45 'C
Oper. Humidity 20~80 %
Communications
Ports: RS232 / RS 485
Port: Ethernet 10/100
Port: 26 bit Wiegand Output
Power
Oper. Voltage: 12V, DC
Idle Current: 60 mA
Oper. Current: 450 mA
Relay Output: 12V DC, 3A
Other Features
Fingerprint capacity: 500 templates
Transaction capacity: 30,000
Optical sensor Algorithm version: Finger v9.0
Communication: RS232/485, TCP/IP
Standard Functions: SMS, DLST
Certification: CE
Optional Functions
Web server, Work code, 9 digit user ID, Self-Service Query, Automatic Status Switch, Printer

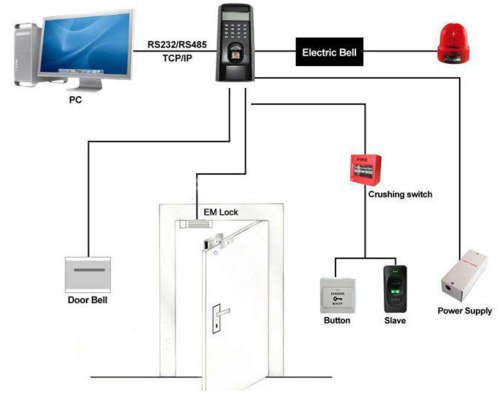

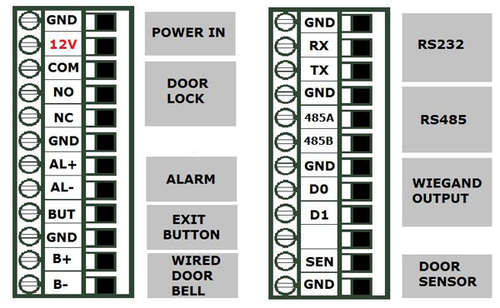

Access Control Interface for: 3rd party electric lock, door sensor, exit button, alarm, Door Bell, Wiegand
Signal Output Display: B&W LCD Screen
Dimensions & Weight
Dimensions: 19.2x8.6x3.5 cm
Weight: 415 g
Packing List
1x Fingerprint access control
1x Back cover
1x Silicone pad
1x Software CD
1x Screwdriver
1x Resistance needle
1x Pack installation screws
Download the user manual here
