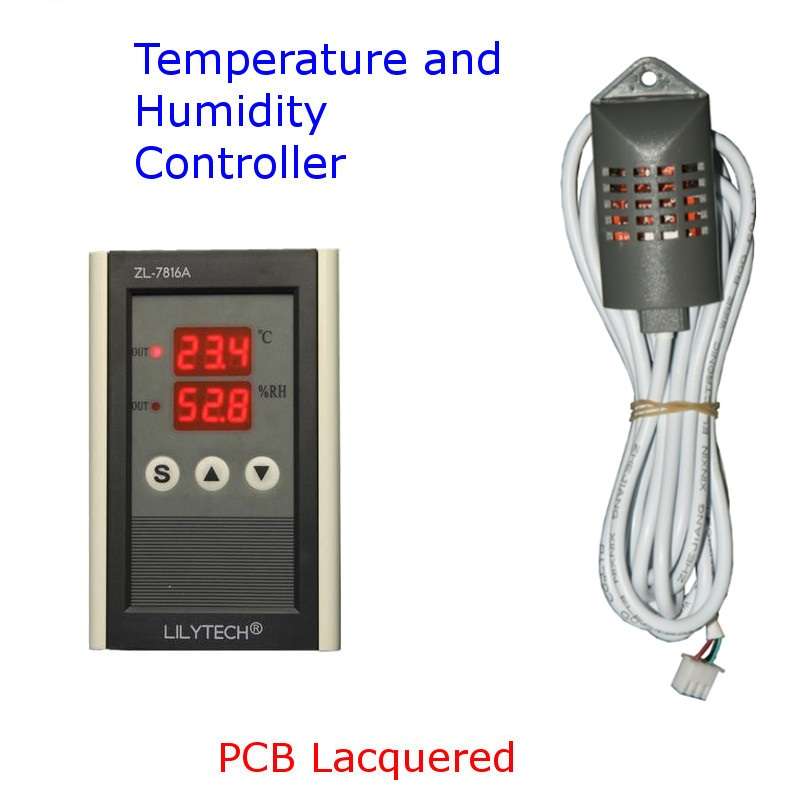

Humidity and Temperature Controller
Description
ZL-7816A adopt microcomputer control, slight keys operation, pair of digital display, easy operation, working stable.
The temperature display resolution is 0.1°C, humidity display resolution is 0.1%RH
Power supply :12VDC/AC
ZL-7811A has auto restart function, every time the power is on, no need to set parameters again.
ZL-7811A can control humidity and temperature separately.

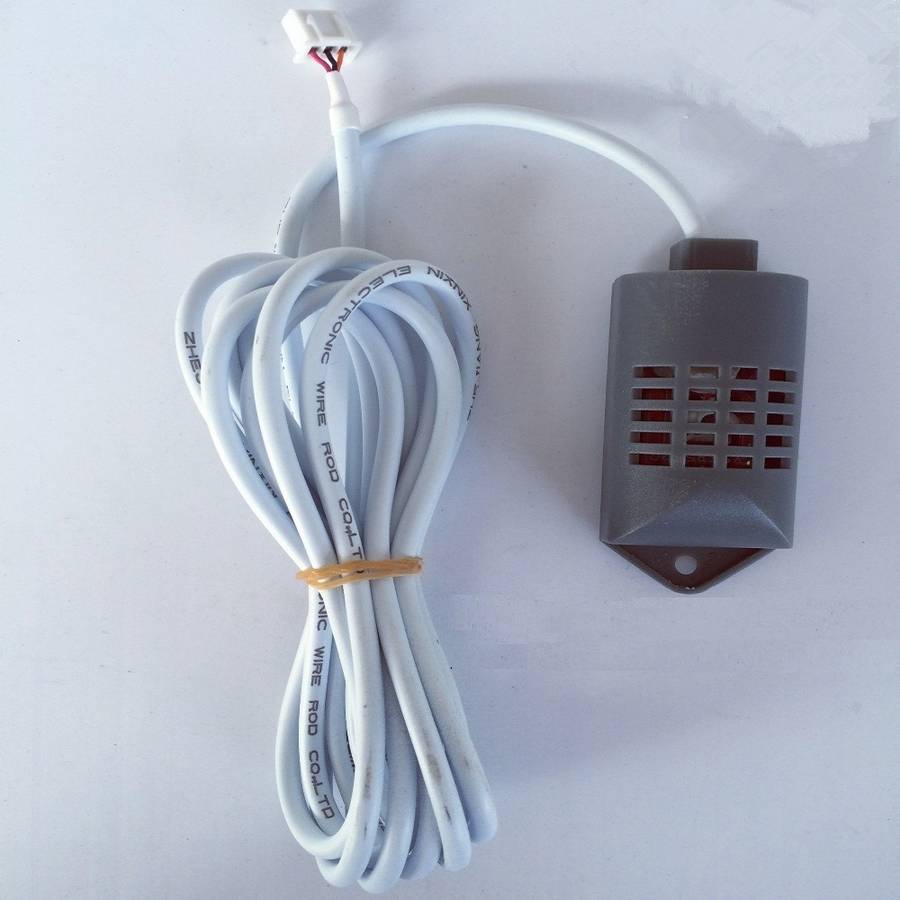

The humidity and temperature sensor can be lengthened to 50M, it collects data stable and reliably.
Technical Specification:
Precision of measure: temperature ±1%, humidity ±3%RH(under temperature 20~60¬トテ)
Temperature measuring and setting range: 0.0°C~80.0°C
Humidity measuring and setting range: 0.0%RH~99.9%RH
Working environment: 0~45°C
Humidity: 5~95% RH(without dewing)
Power consumption: < 2W
Power supply: 12V AC/DC
Load current: 250VAC/7A
Size: 118*75*32mm
href='https://cdn.shopify.com/s/files/1/0028/5032/4545/files/ZL-7816A_en_A1.01a_20170406.pdf?15106457627610771903' target='_blank'>>> to Download English User Manual<<

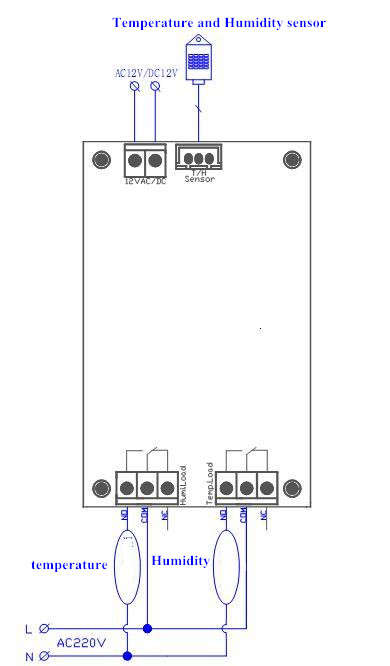

Wiring Diagram:Package includes:

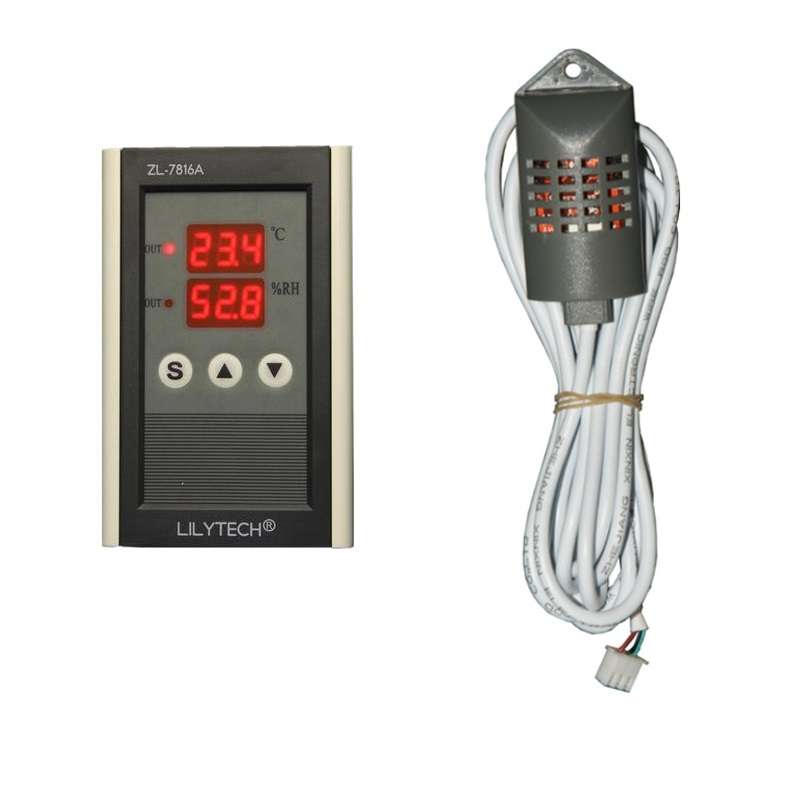

1 x Humidity and Temperature Controller

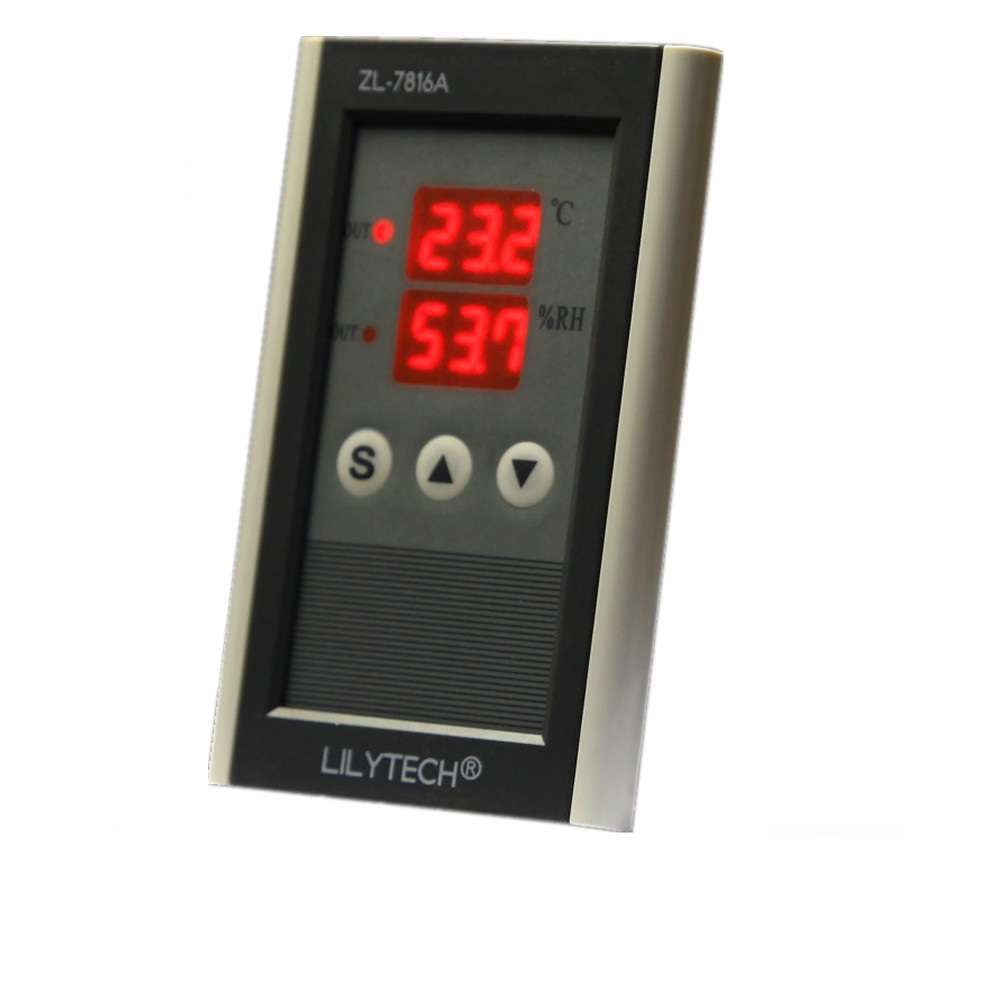

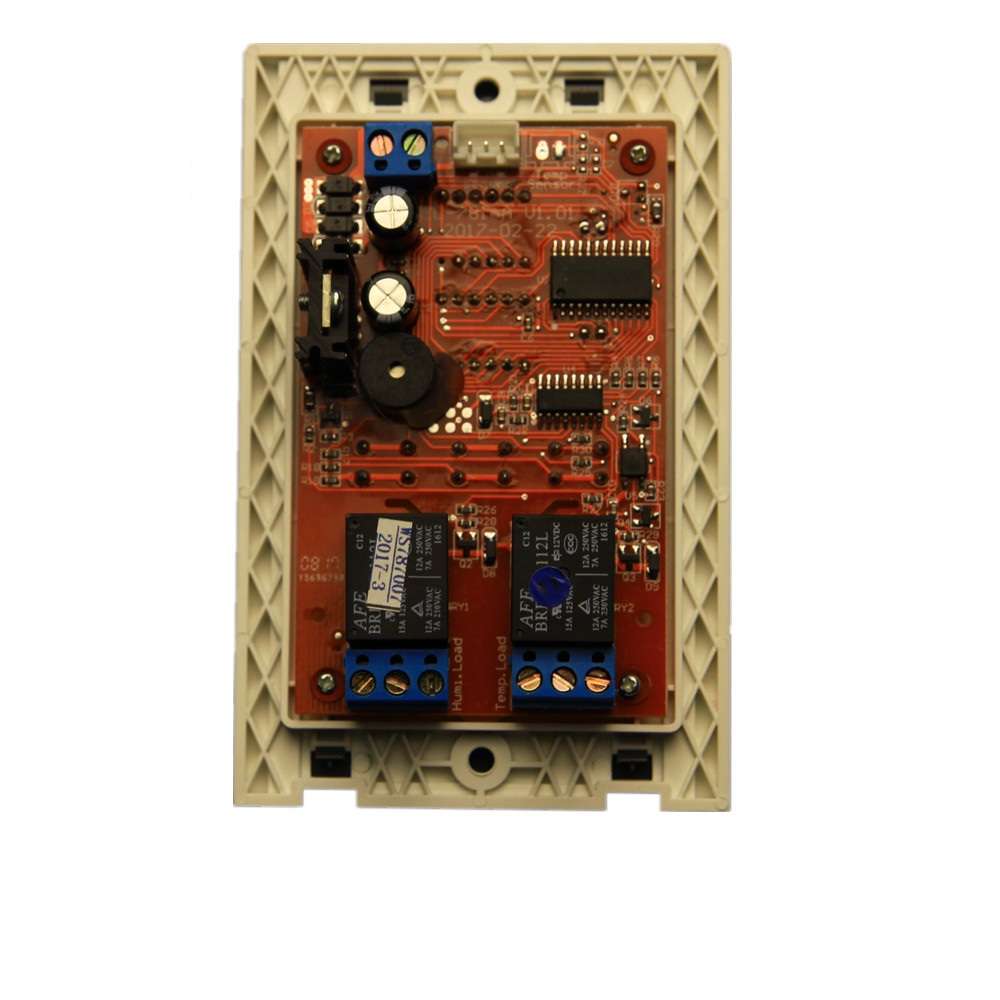

Details pictures:
