ZMR NX4-EVO 6-Axis 3D Flight Controller Gyroscope Stabilizer One Key Rescue Autobalance FC For RC Airplane Aircraft Fixed Wing V-tail

Description:

Brand: ZMR

Model: NX4-EVO

Item: Flight Controller

Input voltage: DC 5 – 6V

Working temperature: 0-50 ° C

Size: 43*28*15mm

Performance: horizontal self-stabilization, manual flight, 3D lock, One key rescue.

Suitable for: Ordinary T-tail fixed wing, single aileron, double aileron (requires remote control to set mixing control), de1ta wing (flight control built-in mixing control), V tail (flight control built-in mixing control) and other rc models.

Quick installation tips:

1. Refer to the manual for correct connection and check whether the remote control is working properly.

2. Adjust the DIP switch to select the correct model. Check whether the direction of the rudder control surface of the remote control is correct.

3. Adjust the working direction of the gyroscope through the potentiometer switch and check whether the control direction of the gyroscope is correct. (Please use small sensitivity for the first flight)

4. Using the remote control mode switch to toggle back and forth to calibrate the neutral point of the remote control. (When replacing the remote control or receiver, the neutral point must be calibrated)

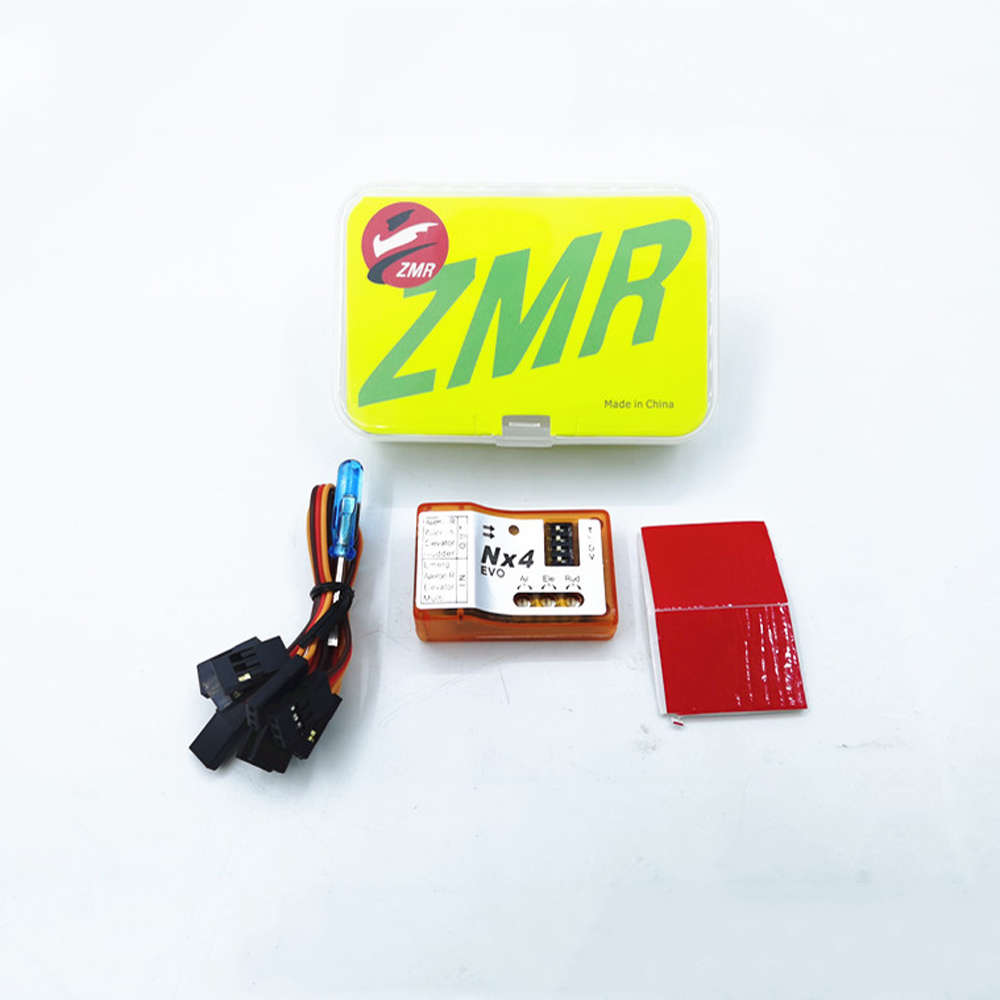

Package Included:

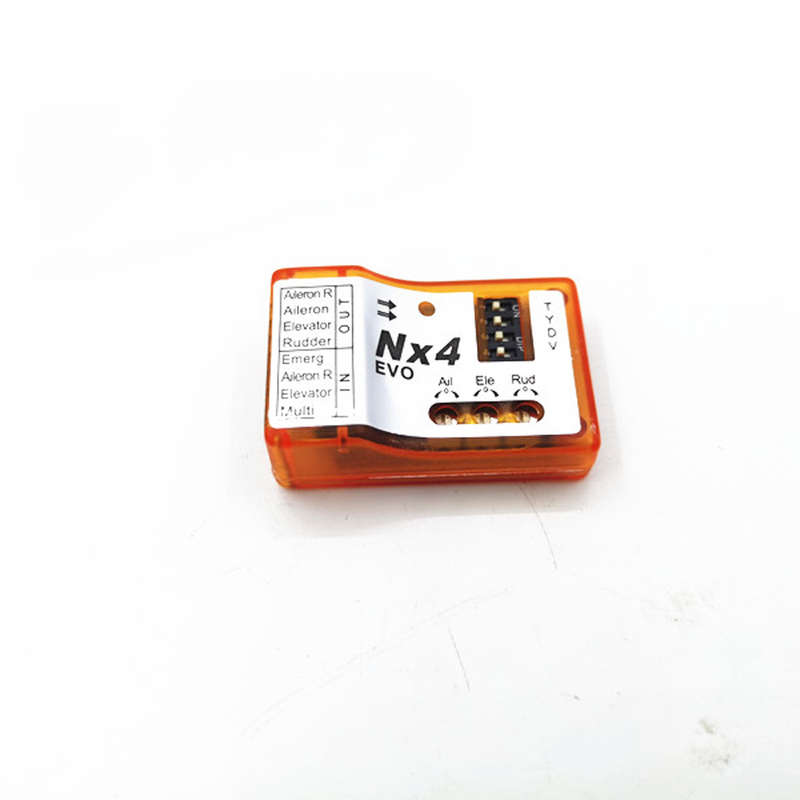

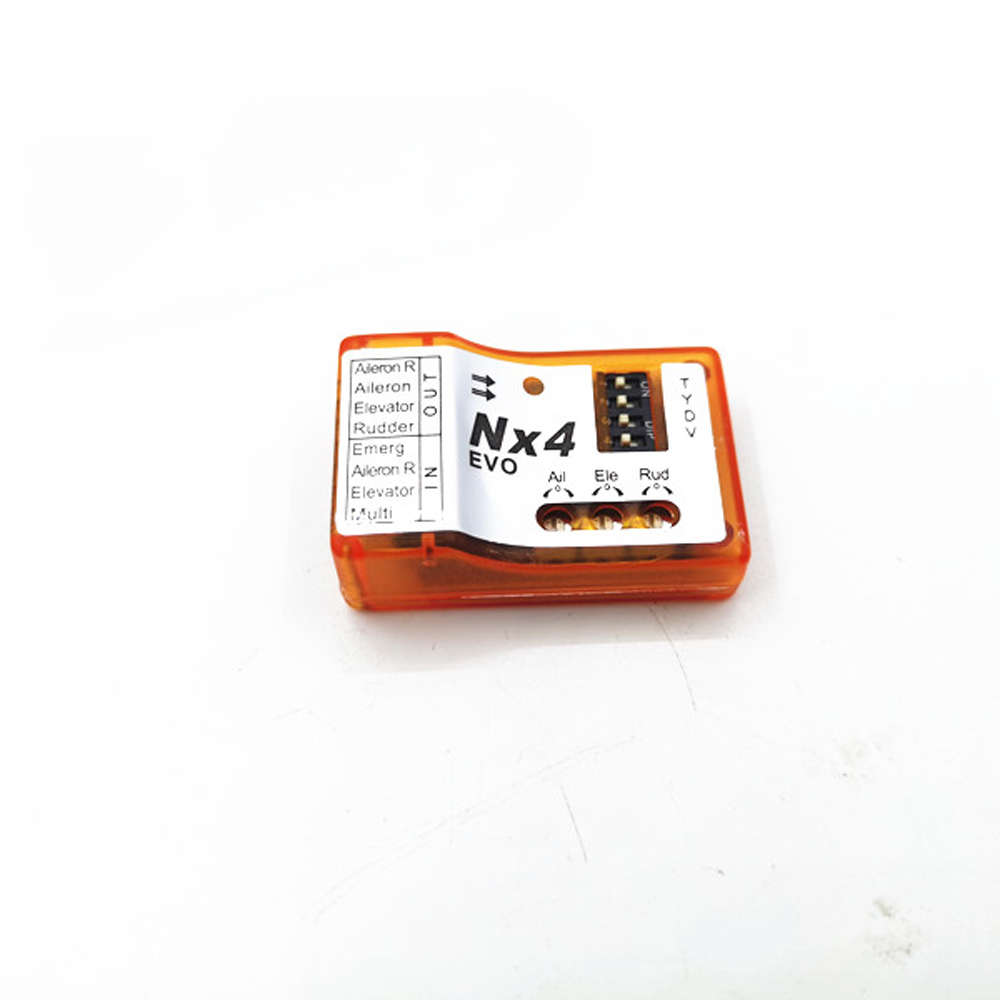

1x NX4-EVO 3D Flight controller
