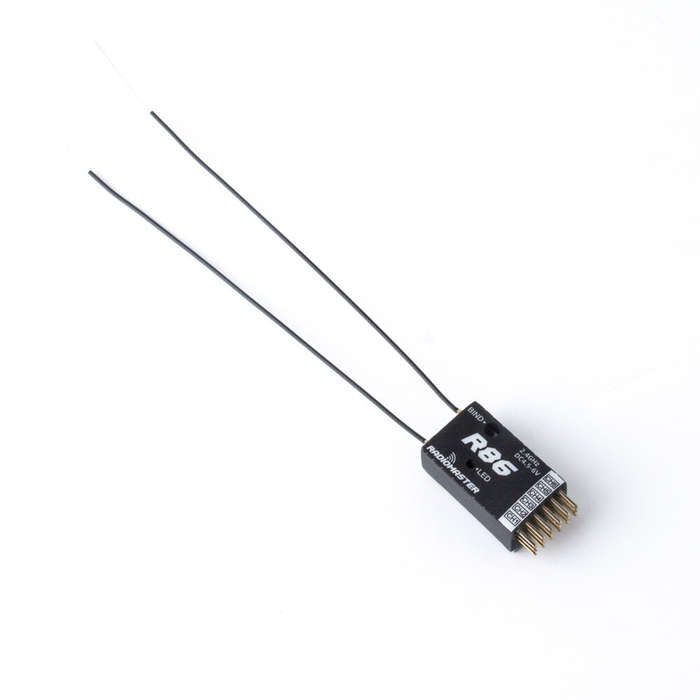

RadioMaster R86 2.4GHz 6CH Over 1KM PWM Nano Receiver Compatible FrSky D8 Support Return RSSI for RC

RadioMaster R86 2.4GHz 6CH Over 1KM PWM Nano Receiver Compatible FrSky D8 Support Return RSSI for RC Drone

Description:

Brand Name: RadioMaster

Item Name: R86 Nano Receiver

Model: R86

Weight: 4.8g

Size: 28*16.5*11 mm

Channels: 6 channels

Frequency range: 2400-2483.5Mhz

Power input range: 4.5-6V

Signal format: Frsky D8 Compatible

Output format: PWM

Support return: support return RSSI

Ramge: more than 1km

Antenna length: 15 cm

Bind method:

1. Press and hold the BIND button on the receiver then connect power. After approximately 3 seconds, the receiver LED will be RED, the receiver is now in bind mode

2. Select the D8 protocol for the multi-protocol menu of your remote control, and press the [BIND] option, the red light of the receiver will flash indicating successful bind
