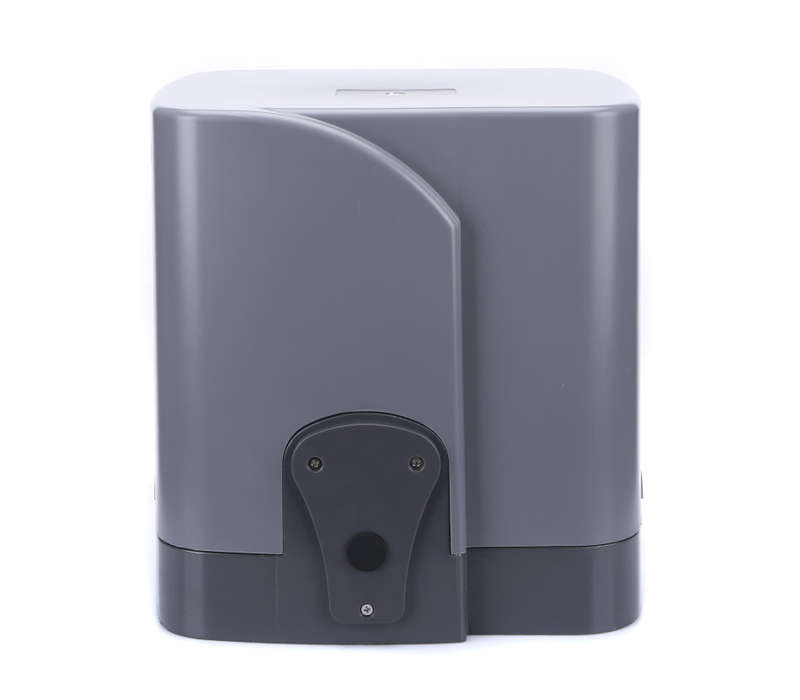

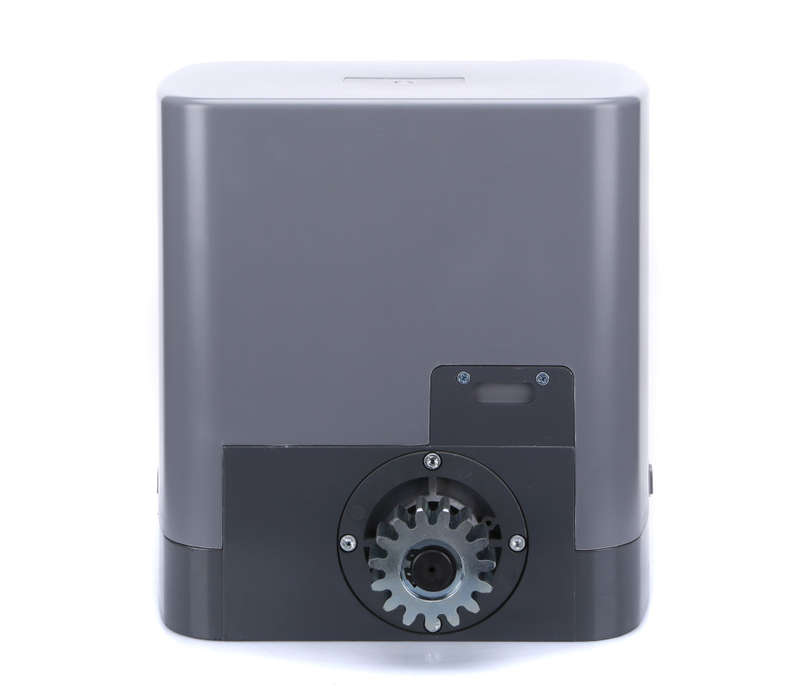

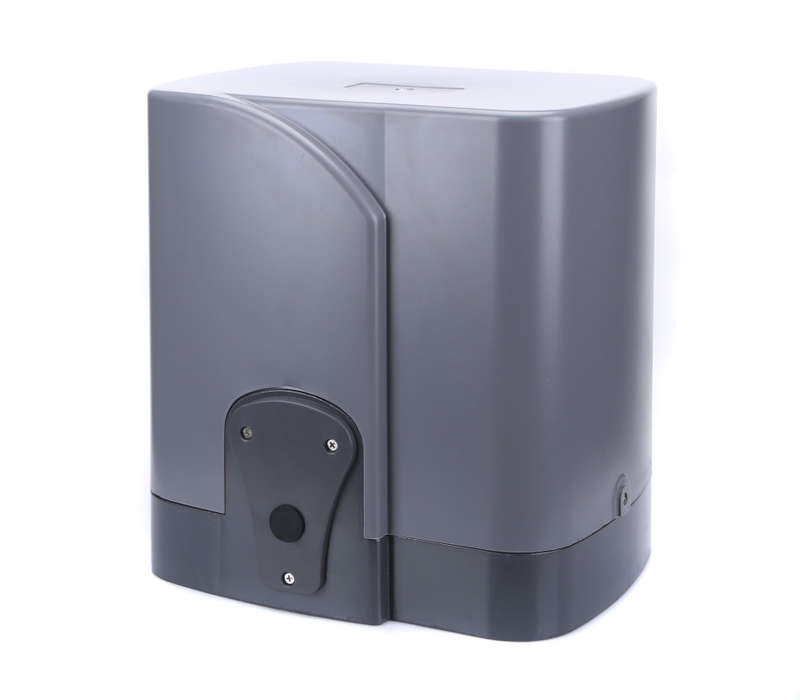

Zooltro Heavy Duty Sliding Gate Motor with 2 Remotes - 1400KG Capacity
The Zooltro sliding gate opener is the Ideal unit for both Industrial or domestic sliding gates. With a powerful AC Powered motor, the automation unit is capable of moving gates up to approx.1 400KG. The Zooltro gate opener operates by forcing the mounted drive track through the driving gear, ending its travel with spring or magnetic limits.
Product details
- Brand: Zooltro
- Product: Sliding Gate Opener Motor
- Motor voltage: 230V AC
- Gear driven
- Output power: 500 watts
- Output torque: 32N·m
- Maximum gate weight: 1 400 KG
- Limit switch: Spring/Magnetic
- Working duty: S2, 15 minutes
- Gate move speed: 20cm/second
- Additional remote controls that can be connected: Max 20
- Remote control range: 30 meters
- Receiver frequency: 433.92MHz
- Noise: 60dB
- Working temperature: -15 to +60 degrees Celsius
- Over-load and over-heat protection.
- Worm gear is brass
- Worm is #45 steel
- Soft start & slow stop
- Obstruction detection with automatic reverse;
- Interface for Solar panel, strobe light, infrared sensor, GSM Gate Opener Remote Relay Switch
- Material: Aluminium base, weatherproof material
- Support wireless keypad: Yes
- Adjustable Auto-close function, and time delay
- Lockable manual disengagement allows you to open and close your gate manually in the event of power failure.
- Easy to install and set up
- Easy Interface Feature, No complicated controls or buttons with this unit.
- Multiple Modes of Operation
- Compatible with majority of sliding gates
- Adaptive Collision Sensing.
- Ideal for high volume traffic like a residential complex or delivery entrance at malls.
Installation tips
- Be sure the gate is properly installed and slides smoothly before installing the sliding gate operator.
- The gate must be plumb, level, and move freely.
- In order to protect the cable, use PVC conduit for low voltage power cable and control wires.
- Conduit must be pre-set into the concrete when it is poured. Wires within the conduit shall be located or protected so that no damage can result from contact with any rough or sharp part.
- The base unit of the gate operator requires a concrete pad in order to maintain proper stability.
- The concrete pad should be approximately 24 (600mm) x 12 (300mm) x 18 (460mm) deep in order to provide for adequate operation.
- Once the gate is mounted adequately, electrical power is available, and the concrete pad is poured, you are ready to proceed.
Package includes:
- 1 Gate motor
- 1 control board (Inside motor)
- 2 Remote control
- Magnetic limit switch & accessories
- 2 Manual release key
- Bolts & nuts
