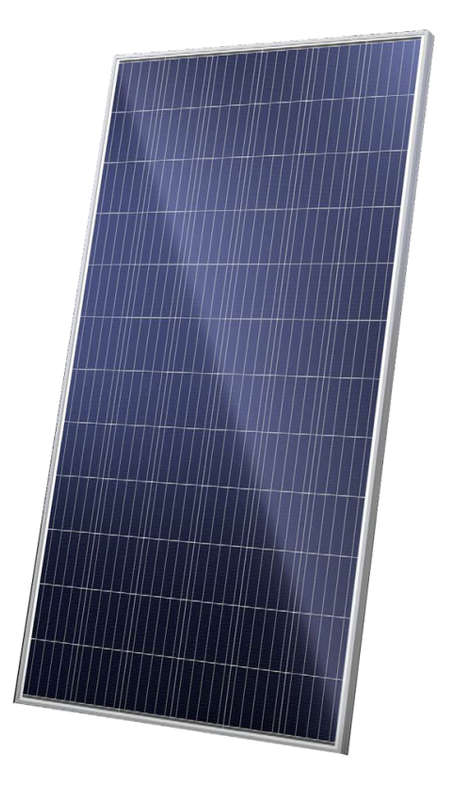

Polycrystalline Solar Panel - 320 Watt
Solar panel generates free energy for many general household appliance.
They can be installed into a on-grid or off-grid applications
High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
Tempered glass (toughened glass): Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
Good performance of preventing from atrocious weather such as wind and hails.
Resisting moisture and etching effectively, not effected by geology
Features
- High Efficiency solar cells in series.
- High Transmissivity low iron toughened glass.
- High wind-pressure and snow load.
- Waterproof and ultraviolet resistance junction box.
Specifications
- Solar cell: Poly crystalline 156×156mm
- No. of cells and connections: 72(6×12)
- Power Tolerance±5%
- Maximum Power: 320W
- Open-circuit voltage(Voc): 45.7V
- Short-circuit current(Isc): 8.85A
- Voltage at Pmax(Vmp): 37.8V
- Current at Pmax(Imp): 8.46A
- Maximum System voltage: 1000VDC
- Output power: 80%+ for 25 years, 90%+ for 10 years
- Pictures are for illustration purposes
