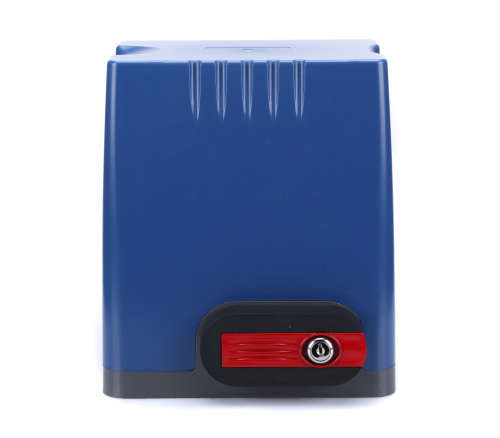

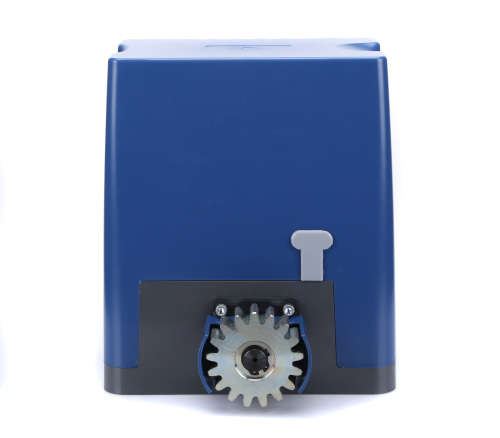

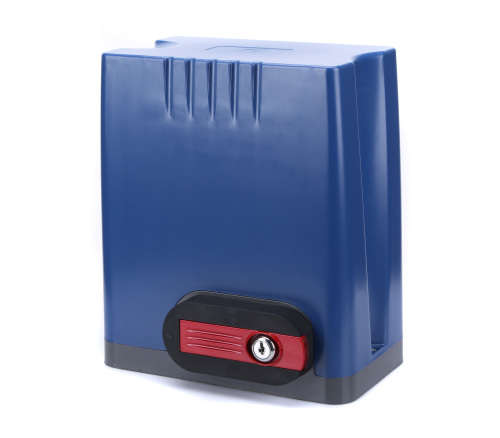

Zooltro Sliding Gate Motor with 2 Wireless Remote - 500KG Capacity
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Zooltro Sliding Gate Motor with 2 Wireless Remote - 500KG Capacity
Product details
- Brand: Zooltro
- Product: Sliding Gate Opener Motor
- Motor voltage: 24V DC
- Gear driven
- Output power: 120 watts
- Output torque: 14N·m
- Maximum gate weight: 500 kg
- Magnetic limit switch
- Working duty: S2, 30 minutes
- Gate move speed: 11-13 m/min
- Additional remote controls that can be connected: Max 25
- Remote control range: 30 meters
- Receiver frequency: 433.92MHz
- Noise: ≤56dB;
- Working temperature: -15 to +60 degrees Celsius
- Overheat protection
- Worm gear is brass
- Worm is #45 steel
- Soft start & slow stop
- Obstruction detection with automatic reverse;
- Interface for Solar panel, infrared sensor, GSM Gate Opener Remote Relay Switch
- Material: Aluminium. High strength, waterproof
- Supports 24V(2x12V) backup battery for use when electricity goes out. 4.5Ah or 8Ah recommended
- Backup battery not included
- Support wireless keypad: Yes
- Adjustable Auto-close function, and time delay
- Pedestrian mode.
- Lockable Manual key release design for emergency manual operation.
- Easy to install and set up
- Easy Interface Feature, No complicated controls or buttons with this unit.
- Multiple Modes of Operation.
- Adaptive Collision Sensing.
Power the motor through electricity and solar or one of the two methods
- Connect a 40w solar panel to the motor eliminating the needs for electricity connections, the solar panel will in turn charge the battery and the motor will draw power directly from the battery
- Connect 230v electric power from your electricity connection
Installation tips
- Be sure the gate is properly installed and slides smoothly before installing the sliding gate operator.
- The gate must be plumb, level, and move freely.
- In order to protect the cable, use PVC conduit for low voltage power cable and control wires.
- Conduit must be pre-set into the concrete when it is poured. Wires within the conduit shall be located or protected so that no damage can result from contact with any rough or sharp part.
- The base unit of the gate operator requires a concrete pad in order to maintain proper stability.
- The concrete pad should be approximately 24” (600mm) x 12” (300mm) x 18” (460mm) deep in order to provide for adequate operation.
- Once the gate is mounted adequately, electrical power is available, and the concrete pad is poured, you are ready to proceed.
Package includes:
- 1 Gate motor
- 1 control board (Inside motor)
- 2 Remote control
- Magnetic limit switch & accessories
- 2 Manual release key
- Bolts & nuts
