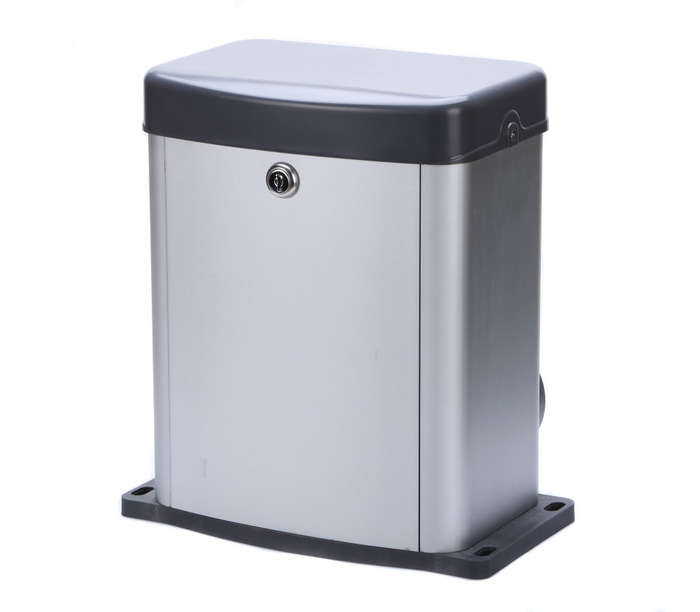

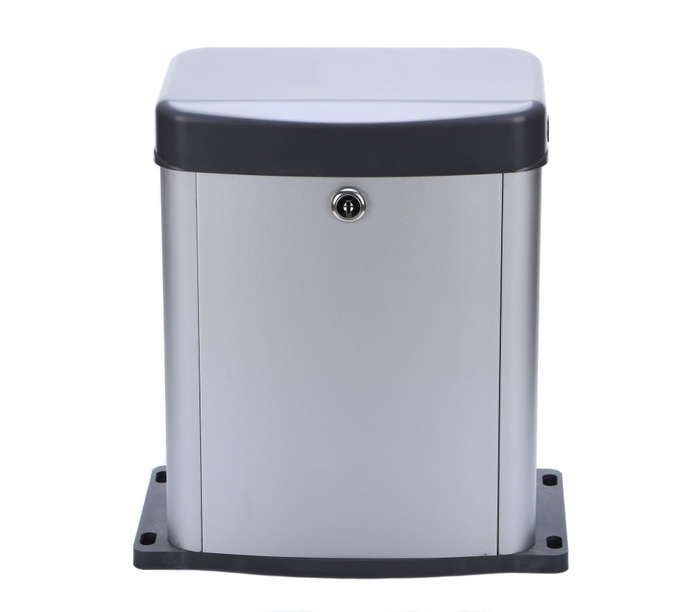

Zooltro Sliding Gate Motor with 2 Wireless Remotes and Backup Battery - 300KG Capacity
Please note
- Item Condition: Item appears new. Item box may have some damages which could be due to handling and shipping.
- Stock image used for illustration purposes only
- Description for information purposes
- Payment required within 3 days from date of auction close time

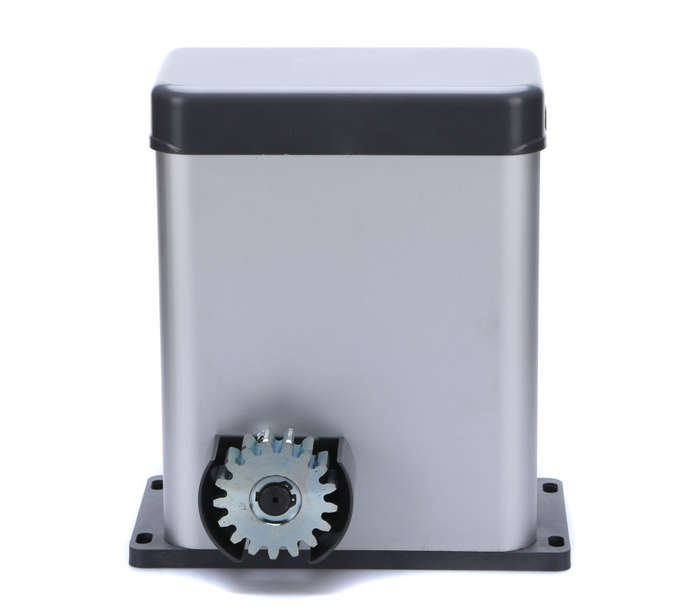

This is the ideal unit if you have a sliding gate. The Zooltro sliding gate opener operates by forcing a drive rack by a drive gear. The Zooltro sliding gate opener is the Ideal unit for domestic sliding gates. This stylish unit is packed with features. Equipped with a Heavy-Duty DC opener motor can effortlessly open up gates weighing up to 300kg and up to 8m when installed properly. This is an extremely powerful sliding gate opener.
Features include: direct drive mechanism, soft start/stop function, auto-close mode, low standby power usage, quiet motor, compact size, easy-to-use interface and two backup batteries.
Product details
- Brand: Zooltro
- Product: Sliding Gate Opener Motor
- Motor voltage: 24V DC
- Gear driven
- Output power: 100 watts
- Output torque: 8N·m
- Maximum gate weight: Approx. 300 KG
- Electronic limit switch
- Working duty: S2, 30 minutes
- Gate move speed: 11-13 m/min
- Additional remote controls that can be connected: Max 20
- Remote control range: 30 meters
- Receiver frequency: 433.92MHz
- Noise: 60dB
- Working temperature: -15 to +60 degrees Celsius
- Soft start and stop function
- Interface for Solar panel, infrared sensor, GSM Gate Opener Remote Relay Switch
- Material: Aluminium. High strength, waterproof
- Supports 24V(2x12V) backup battery for use when electricity goes out
- Includes built in 2 Backup batteries 12V, 4.5Ah
- Support wireless keypad: Yes
- Adjustable Auto-close function, and time delay
- Pedestrian mode
- Lockable manual disengagement allows you to open and close your gate manually in the event of power failure.
- Easy to install and set up
- Easy Interface Feature, No complicated controls or buttons with this unit.
- Multiple Modes of Operation
- Compatible with majority of sliding gates.
Power the motor through electricity and solar or one of the two methods
- Connect a 40w solar panel to the motor eliminating the needs for electricity connections, the solar panel will in turn charge the battery and the motor will draw power directly from the battery
- Connect 230v electric power from your electricity connection
Installation tips
- Be sure the gate is properly installed and slides smoothly before installing the sliding gate operator.
- The gate must be plumb, level, and move freely.
- In order to protect the cable, use PVC conduit for low voltage power cable and control wires.
- Conduit must be pre-set into the concrete when it is poured. Wires within the conduit shall be located or protected so that no damage can result from contact with any rough or sharp part.
- The base unit of the gate operator requires a concrete pad in order to maintain proper stability.
- The concrete pad should be approximately 24 (600mm) x 12 (300mm) x 18 (460mm) deep in order to provide for adequate operation.
- Once the gate is mounted adequately, electrical power is available, and the concrete pad is poured, you are ready to proceed.

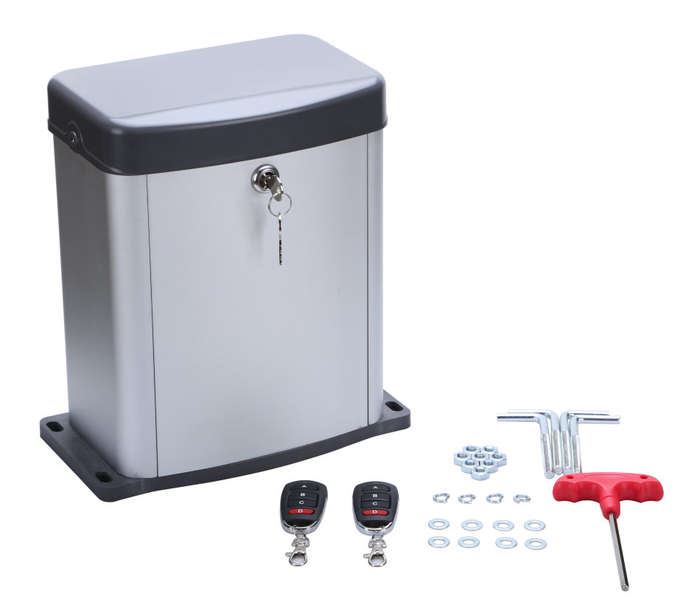

Package includes:
- 1 Gate motor
- 1 control board (Inside motor)
- 2 Remote control
- 2 Manual release key
- Bolts & nuts
- 2 battery 12V, 4.5Ah
