The G5n comes loaded with 100 beautifully-crafted and newly assembled DSP effects, plus 26 of the most faithful and realistic amp/cabinet emulators we've ever created.
A wide array of effects:
- The G5n comes equipped with freshly-developed takes on not only the most-essential guitar sounds like overdrive, distortion, compression, EQ, delay, reverb, flanging, phasing, vibrato, and chorusing
- Also unique multi-effects such as Seq Filter, Gold Drive, Reverse Delay, HD Hall, and OSC Echo.
Ultra-realistic amp/cabinet emulation:
- You can connect the G5n directly to a PA system or audio interface, using the 26 brand new onboard amp and cabinet emulators
- Choose from 13 classic amp models like the 59 Fender Bassman, Diezel Herbert Channel 2, Marshall JCM800, Fender Twin Reverb, and MESA Boogie Mk3
- All newly and faithfully created to be adjusted exactly as you would with the knobs and switches of the real thing.
Pair your amp with one of the 13 newly-created cabinet emulators to complete the sound, choosingfrom cabinets like the Marshall 1960 A-type cabinet (4x12 Celestion speakers), Fender 65 Deluxe Reverb (1x12 Jensen C-12K speakers), Mesa Boogie Mark 1 (1x12 ALTEC 417-8H speaker), or Bogner Ecstasy cabinet (4x12 Celestion speakers).
To explore the wealth of possibilities that the G5n offers, we continuously collaborate with inspirational, professional guitarists known for their taste and love of great guitar sounds.
The G5n comes stocked with 124 custom-designed patches that both recreate decades of essential guitar toneslike the iconic sounds of Eddie Van Halen, Jimi Hendrix, Jimmy Page, Carlos Santana, Michael Schenker, and Brian Mayand pioneer new territory with combinations exclusively created for G5n guitarists.
Stand out with "Lead BGN," a modern lead sound folded into a modulated delay, or "Phazed," an intense tube amp sound through a phaser
The "UFO" patch harnesses parametric EQ in the style of the lead guitarist of the band of the same name, and then there's "DreamWorld," an overdriven crunch enhanced with tape echo and hall reverb.
Features:
- 68 onboard high-quality digital effects, including distortion, overdrive,EQ, compression, delay, reverb, flanging, phasing, and chorusing
- 5 new amp emulators plus 5 cabinet emulators
- 100 custom-designed factory patches
- Free Zoom Guitar Lab Mac/Windows software allows downloading of additional effects and patches
- Use up to 9 effects simultaneously, chained together in any order
- 4 stomp box switches allow effects to instantly be brought in and out
- Built-in expression pedal for real-time control over volume, tone, or selected effect parameters
- High output booster circuit for added volume and overdrive
- Intuitive user interface
- 200 memory locations for storage of factory and/or user-created patches
- 4 independent editing displays, plus large overview display
- Auto Save function for automatic saving of all patch parameters
- Onboard chromatic tuner with dedicated footswitch supports all standard
- Guitar tunings, including open and drop tunings
- Tuner range of 435 - 445 Hz
- Stereo/mono Looper allows recording of up to 80 seconds of phrase recording
- 68 built-in rhythm patterns that can be used in conjunction with the Looper
- Tap Tempo with dedicated footswitch

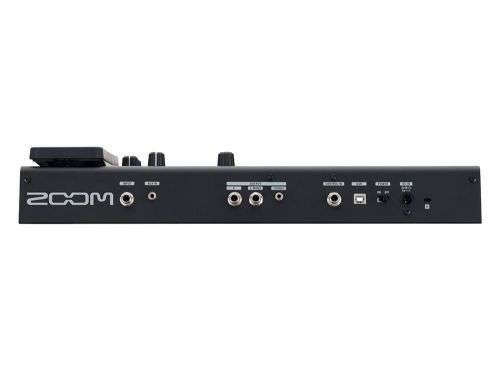

- Input jack accepts standard guitar cable
- Auxiliary stereo input jack for connection of smartphones and music players
- Dual output jacks for connection to guitar amps and mono or stereo PA systems
- Dedicated stereo headphone output
- Control input for external footpedal
- USB port for firmware updating and patch/effects downloading
- Use as a USB audio interface for Mac/Windows computers, with direct
- Zero-latency monitoring of input signal
Specifications:
- Effect types: 78 (68 DSP effects, 5 amp emulators, 5 cabinet emulators)
- Number of simultaneous effects: 9
- Number of user banks/patches: 200
- Sampling frequency: 44.1 kHz
- A/D conversion: 24-bit with 128x oversampling
- D/A conversion: 24-bit with 128x oversampling
- Signal processing: 32-bit
- Frequency characteristics: 20 20 kHz +1 dB, -3 dB (10 k? load)
- Display: 128 x 32 dot-matrix LCD (x4) 256 x 32 dot-matrix LCD
- Power: AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16)
- USB: USB Audio
- Dimensions: 225 mm (D) X 454 mm (W) X 75 mm (H)
- Weight: 3.4 kg
- Warranty: 12 Months
Input:
- Standard monaural phone jack
- Rated input level: -20 dBu
Aux In:
- Stereo mini jack
- Rated input level: -10 dBu
Outputs:
L/R:
- Standard monaural phone jack x 2
- L/R maximum output level: Line +5 dBu (with output load impedance of 10 k? or more)
Phones (headphones):
- Stereo mini jack
- Phones maximum output level: 20 mW + 20 mW (into 32 load)
- Control input: zoom FP01/FP02 (not included)
