The evolution continues: The H1n JUST PRESS RECORD
Creators everywhere are using Zoom Handy Recorders to capture sound and sample audio like never before.

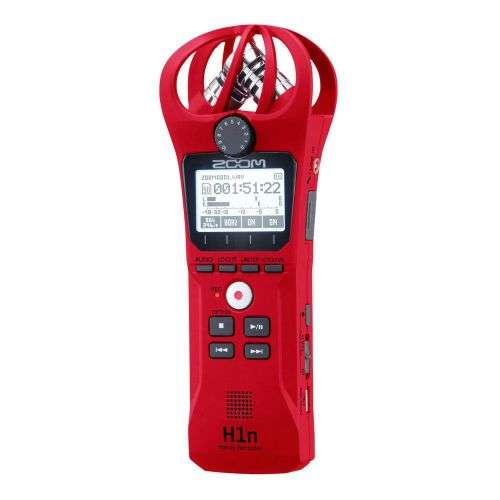

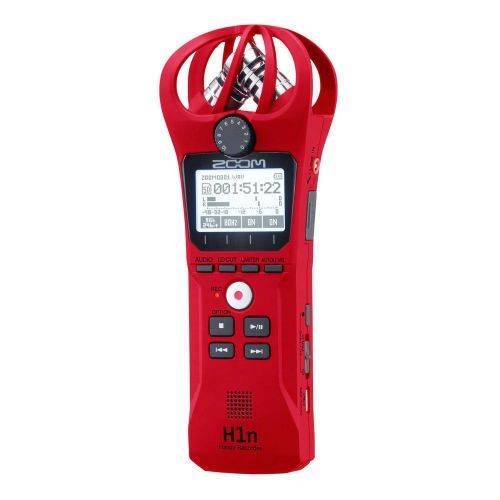

The new H1n is the ultimate take-anywhere recorder for every creator's gear bag.
Zoom Your Audio Anywhere and Everywhere
The H1n's X/Y microphones capture high-quality stereo sound, supporting up to 24-bit audio at sampling rates of 44.1, 48, or 96 kHz in WAV and various MP3 formats.
The Connections You Need
A 1/8" stereo mic/line input lets you record with your external microphones or other sound sources and supplies plug-in power (2.5 volts). Connect headphones via the 1/8" headphone output with dedicated volume control. You can also use the H1n's built-in speaker to listen to your recordings.
The H1n's USB port provides a digital output of the stereo mix and allows data to be sent to and from your computer. It also allows the H1n to be used as a USB microphone and a microSD card reader.
Free Recording Software
The Zoom H1n comes with free download licenses for Steinberg's Cubase LE music production software and WaveLab LE audio editing software.
Features:
- One-touch button controls
- 1.25" monochrome LCD display
- Intuitive menus for easy operation
- Stereo X/Y 90 microphones handle up to 120 dB SPL
- Stereo 1/8" Mic/Line In mini phone jack
- Stereo 1/8" Phone/Line Output jack with dedicated volume control
- Limiter button for input signal up to 120 dB SPL
- Playback Speed Control, Voice Emphasize Filter, and Stereo Bounce functions
- Auto-Record, Pre-Record, and Self-Timer functions
- Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Tone generator for filmmaking use with DSLR and video cameras
- Records directly to SD and SDHC cards up to 32 GB
- Micro USB port for data exchange to and from computer and use as an audio interface
- Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
- Up to 10 hours of operation with alkaline batteries
Specifications:
- Simultaneous playback tracks: 2
- Simultaneous recording tracks: 2
- Functions: Lo-cut Filter, Limiter, Test Tone, Slate-Tone, Voice Emphasize Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing
- Recording formats: WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96kHz/24-bit
- A/D conversion: 24-bit, 128x oversampling
- D/A conversion: 24-bit, 128x oversampling
- Signal processing: 32-bit
- Recording media: microSD/microSDHC cards (Class 4 or higher, up to 32GB)
- Display: 1.25" monochrome LCD (96 × 64)
- Built-in stereo mic: Unidirectional condenser, 90 degree XY stereo format
- Gain: - dB to +39 dB
- Maximum sound pressure level: 120 dB SPL
- Inputs: 1/8" stereo phone jack
- Rated input level: - dB to -39 dBm
- Input impedance: 2 k
- Plug-in power supported (2.5 V)
- Built-in speaker: Built-in 500 mW mono speaker
- Output impedance: 8
- Outputs: 1/8" stereo phone jack (combined line/headphones)
- Rated output level: 20 mW + 20 mW into 32 load
- Output impedance: 10 k or more
- USB: Micro USB port
- Mass storage class operation: USB 2.0 high speed
- Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out
- Transfer method: asynchronous
- Power requirements: 2 AAA batteries (alkaline, nickel-metal-hydride rechargeable, or lithium)
- AC adapter (ZOOM AD-17): DC 5V/1A
- USB bus power
- Battery life (alkaline batteries): Approximately 10 hours (continuous recording time using built-in mic, 44.1 kHz/16-bit)
- Dimensions: 1.9 in (W) x 5.4 in (D) x 1.2 in (H)
- 50 mm (W) × 137.5 mm (D) × 32 mm (H)
- Weight: 0.13 lbs / 60 g (without batteries)
