Supplied XYH-6 X/Y capsule provides secondary input via a stereo Mic/Line In mini phone jack
Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
Specifictions
Recording Media
SD Card: 16MB to 2GB
SDHC Card: 4GB to 32GB
SDXC Card: 64GB to 1TB
Inputs
XYH-6 X/Y mic: Mic type: Unidirectional
Sensitivity: -41 dB, 1 kHz at 1 Pa
Input gain: - to 46.5 dB
Max sound pressure input: 136 dB SPL
XYH-6 MIC/LINE IN: Connector: 1/8" stereo mini jack
Input level: - to 46.5 dB
Input impedance: 2 k
Plug-in power: 2.5V supported

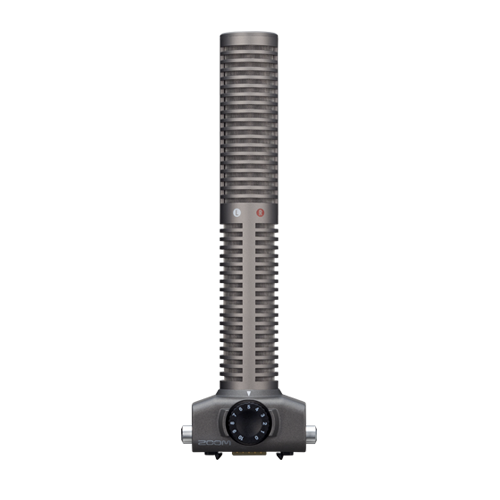

MSH-6 MS mic: Mic types: Unidirectional and bi-directional
Sensitivity: -37 dB, 1 kHz at 1 Pa (unidirectional)
-39 dB, 1 kHz at 1 Pa (bi-directional)
Input gain: - to 42.5 dB
Max sound pressure input: 120 dB SPL (unidirectional)
122 dB SPL (bi-directional)
INPUTS 1 to 4: Connectors: XLR / TRS combo jacks
(XLR: Pin 2 hot / TRS: Tip hot)
Input gain: (PAD OFF) - to 55.5 dB
Input gain: (PAD ON) - to 35.5 dB
Input impedance: 1.8k or more
Max input level: +22 dBu (PAD ON)
Phantom power: +12V /+24V /+48V
(Phantom power can be turned on/off independently for Inputs 1 - 4)
Equivalent Input Noise (EIN): -120 dBu or less
Outputs
LINE OUT: Jack type: 1/8" stereo mini jack
Rated Output Level: -10 dBu when output load impedance is 10k or more
PHONE OUT: Jack type: 1/8" stereo mini jack
Output Level: 20 mW +20 mW into 32 load
Built-in speaker: 400mw 8 mono speaker
Recording Formats
WAV: Sampling frequency: 44.1/48/96 kHz
Bit rate: 16/24
(Mono/Stereo, BWF-compliant)
Maximum simultaneous recording tracks: 8 (L/R + INPUT 1 to 4 + L/R backup)
(Backup recording: -12dB lower than set L/R input ga
MP3: Sampling frequency: 44.1kHz
Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps
Maximum simultaneous recording tracks: 2
Display
LCD Screen: 2.0-inch full color LCD (320 x 240 pixels)
USB
Mass Storage Class operation: Class: USB2.0 High Speed
Audio Interface operation: Multi-track mode: Class: USB2.0 High Speed
Inputs / Outputs: 6 / 2
Sampling frequency: 44.1/48kHz/96kHz
Bit rate: 16/24 bit
USB bus powered operation possible
Power Requirements
AA size (LR6) battery x 4
Alkaline or NiMH type
AC adapter: AD-17 (DC5V/1A/USB-type) (optional)
USB bus power
Battery Life
Battery life (with alkaline battery, continuous recording) Over 20 hours
Dimensions and Weight

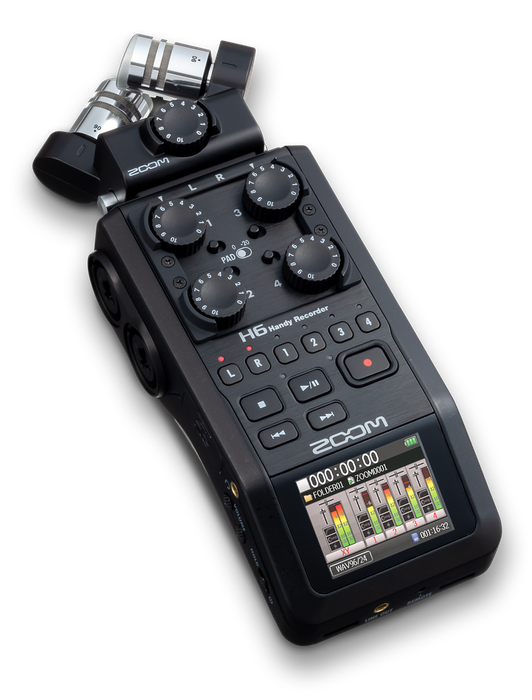

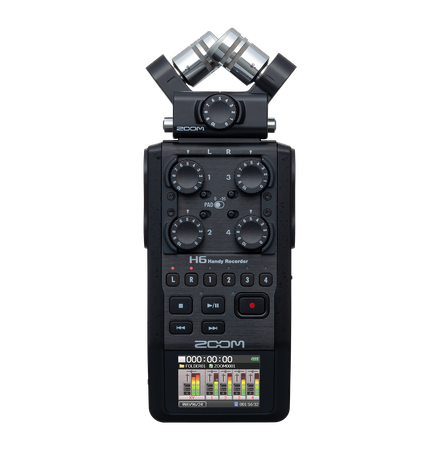

H6: 77.8mm (W) x 152.8mm (D) x 47.8mm (H), 280g
XYH-6: 78.9mm (W) x 60.2mm (D) x 45.2mm (H), 130g
MSH-6: 58.0mm (W) x 67.6mm (D) x 42.1mm (H), 85g
