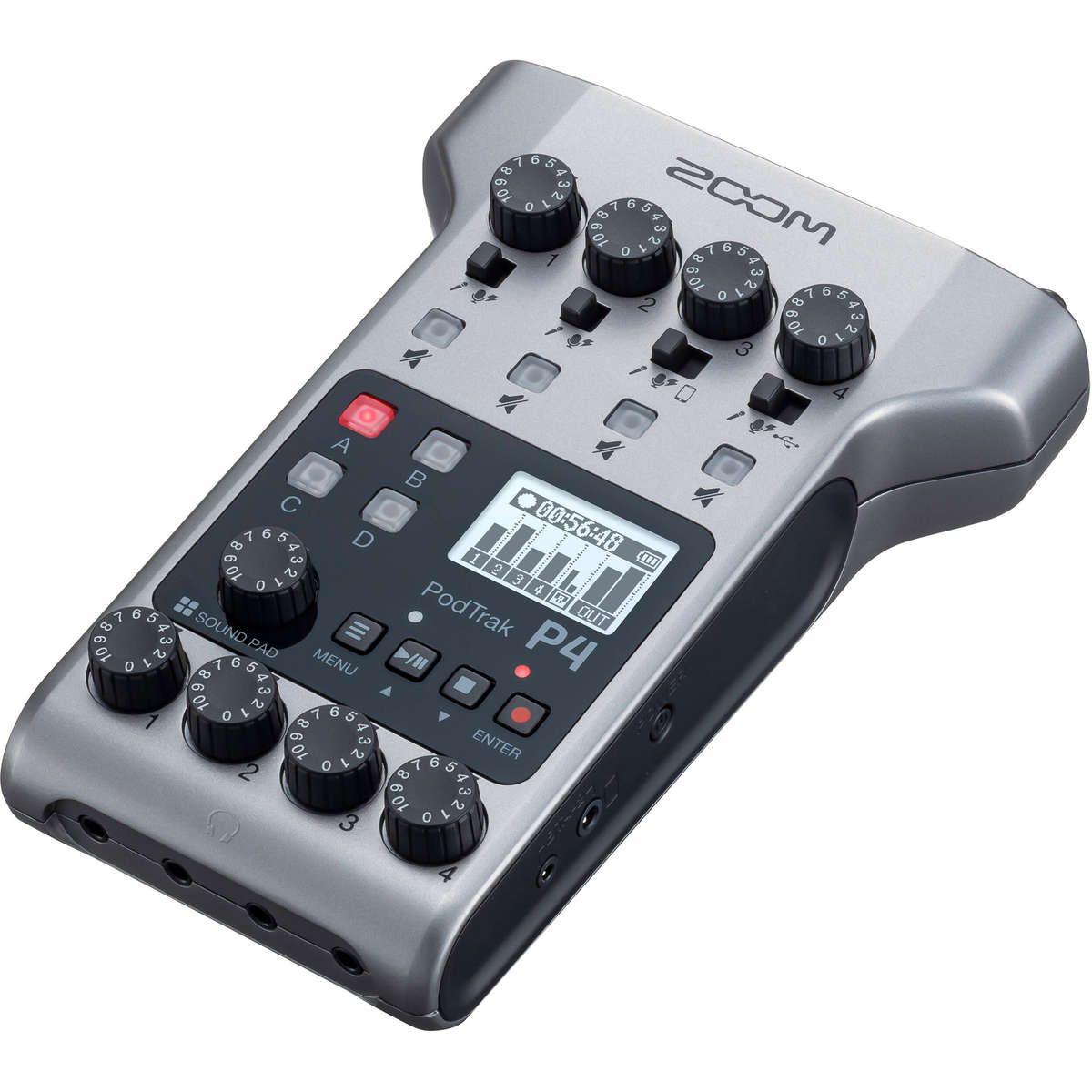

Compact, affordable, and loaded with features, the PodTrak™ P4 makes it easy to capture professional quality audio wherever you're recording your podcasts.
INPUTS & OUTPUTS
NUMBER OF INPUT CHANNELS | 4 (mono/stereo) |
NUMBER OF OUTPUT CHANNELS | 1 (headphone x 4) |
CONNECTORS

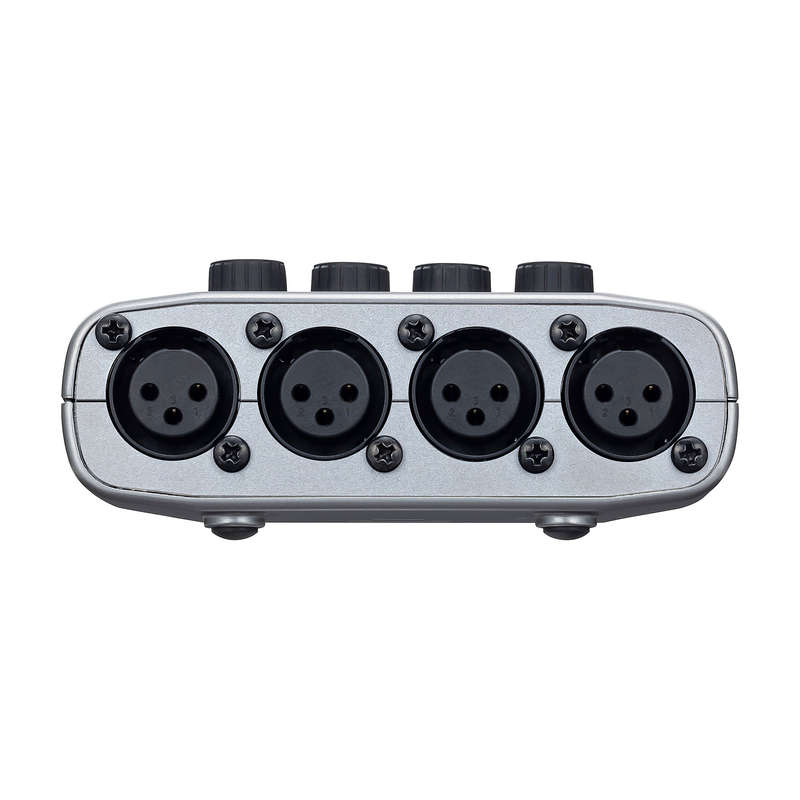

MIC | XLR jacks (2: HOT) |
SMARTPHONE CONNECTION JACK | TRRS mini jack (4 contacts, TIP: L, RING1: R,RING2: GND, SLEEVE: MIC) |
USB | USB Type-C (audio interface and mass storage functions) |
Note: Use a USB cable that supports data transfer. USB bus power is supported. | |
DC 5 V | USB Type-C (for power supply) |
HEADPHONES | 3.5 mm stereo mini |
PHANTOM POWER
PHANTOM POWER | +48 V |
RECORDER
RECORDER | Formats: WAV 44.1 kHz, 16-bit, mono/stereo |
Recording media: 4 GB32 GB SDHC-compliant cards (Class 10 or higher); | |
64 GB512 GB SDXC-compliant cards (Class 10 or higher) |
AUDIO INTERFACE
AUDIO INTERFACE | 44.1 kHz, 16-bit, 2-in/2-out |
POWER
POWER | 2 AA batteries (alkaline, NiMH or lithium) |
We recommend using NiMH | |
AC adapter (ZOOM AD-17): DC 5 V/1 A (USB bus power is supported.) | |
EST. CONTINUOUS OPERATION TIME USING BATTERIES | Recording 44.1 kHz/16-bit/4ch audio to SD card (when 48 V is OFF and headphone impedance is 63 ) |
Alkaline batteries: about 4 hours | |
NiMH batteries (1900 mAh): about 4.5 hours | |
Lithium batteries: about 9 hours | |
The above values are approximate. | |
Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. |
MISC
EXTERNAL DIMENSIONS | 112 mm (W) x 155 mm (D) x 47 mm (H) |
WEIGHT (UNIT ONLY) | 290 g |
