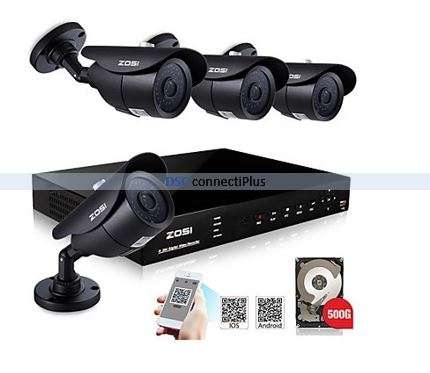

ZOSI® 800TVL 40m Night Vision 8CH HDMI H.264 Security System DVR Kit w/ 4x Outdoor IR CCTV Bullet Cameras & FREE 500GB HDD (Black)..!
Product Information
Specifications
DVR PARAMETERS
Video Compression: H.264
Video System: NTSC/PAL
Video Input/Output Interface: BNC
Video Input: 8 Channel
Video Output: 1 Channel
Other Video Output: HDMI, VGA
Audio Input / Output: RCA 4-Channel Input / RCA 1-Channel Output
Display Frame Rate: NTSC:- 120 fps @D1 / PAL:- 100 fps @D1
Display Resolution: NTSC:- D1(704 x 480)/ PAL:- D1(704 x 576)
Recording Frame Rate: NTSC:- 120fps @CIF / PAL:- 100 fps @CIF
Record Resolution: D1 Real Time (704*576), CIF Real Time (352*288)
Record Mode: Alarm Motion Detection & Alarm Supported, Manual/Schedule, Motion Detection, Time Schedule, Continuous
Mobile Device OS Support: iOS, Android
Network Function: Mobile & Email Function, DVR Setting, Live Monitoring, IE Viewer
Network: RJ45, 10M/100M
Net Protocol: DHCP and TCP/UDP
Remote Access: Remote Client Software and IE Browser
PTZ Control: RS-485
Alarm Input/Alarm Output: 4 alarm Input / 1 Alarm Output
HDD Interface: SATA, Support between 250GB and 2TB
HDD Ports: 1
Playback Mode: Frame by Frame, Fast Rewind, Fast Forward, Normal Play
Synchronous Playback (Channel): 8
USB: USB Backup/USB 2.0
Power Supply: 12V DC
Dimensions (LxWxH): L300×W228×H44 mm
BULLET CAMERA PARAMETERS
Sensor Type: Color CMOS
Sensor Size: 1/3"
Bullet Camera Image Sensor: 1/3" Color CMOS
TV System: PAL/NTSC
Effective Pixels: NTSC:- 768 (H) x 494 (V)/PAL:- 752 (H) x 582 (V)
Horizontal Resolution: 800TVL
Lens (mm): 4.6
Audio / Output: Built-in / BNC
Maximum IR Distance (m): 40
Features Waterproof, Auto White Balance, Auto Gain Control, Back Light Comp
Minimum Illumination: 0.0 Lux
S/N Ratio: ⧠60dB
Video Output: 1.0Vp-p, 75ohms
Operating Temperature: 14~122'F / -10~50'C
Power: 12V DC
Dimensions (LxWxH): 206*81*86mm
Gross Weight: 0.49kg
Material: Metal Shell
Camera Shape: Bullet
Camera QTY: 4
General Application
Home, Garage, Front door, Backyard, Baby Room,
Business, Street, School, Warehouse, Store, Office.
Package Contents
2x 12V Power Supply
4x 60ft Cables
1x FREE 500GB Hard Drive
4x Bullet Cameras
1x 1 To 4 DC Line
1x English User Manual
1x Software CD
1x Remote Control
1x Mouse
1x DVR
