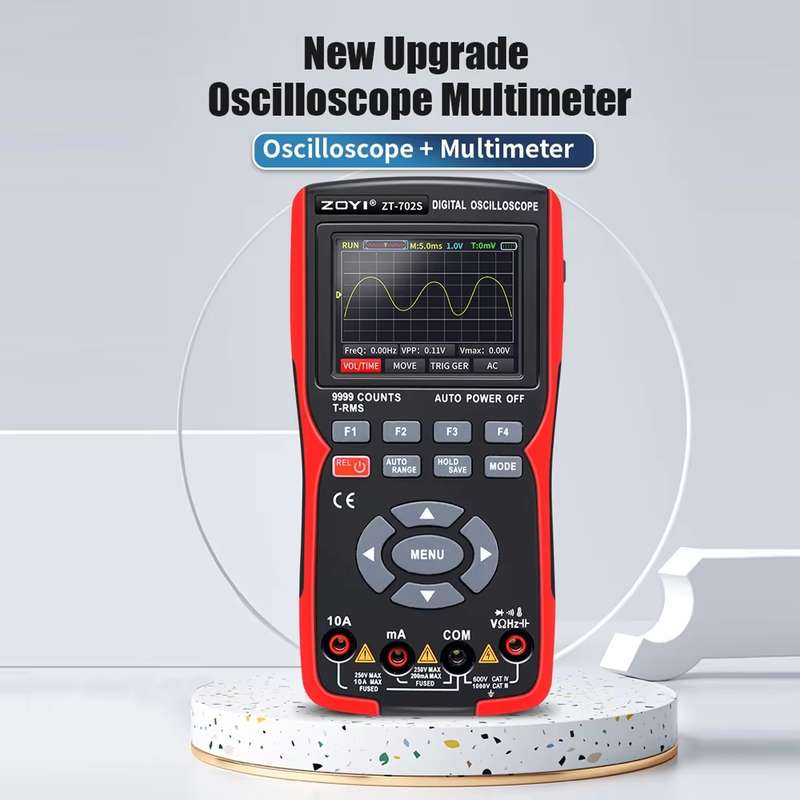

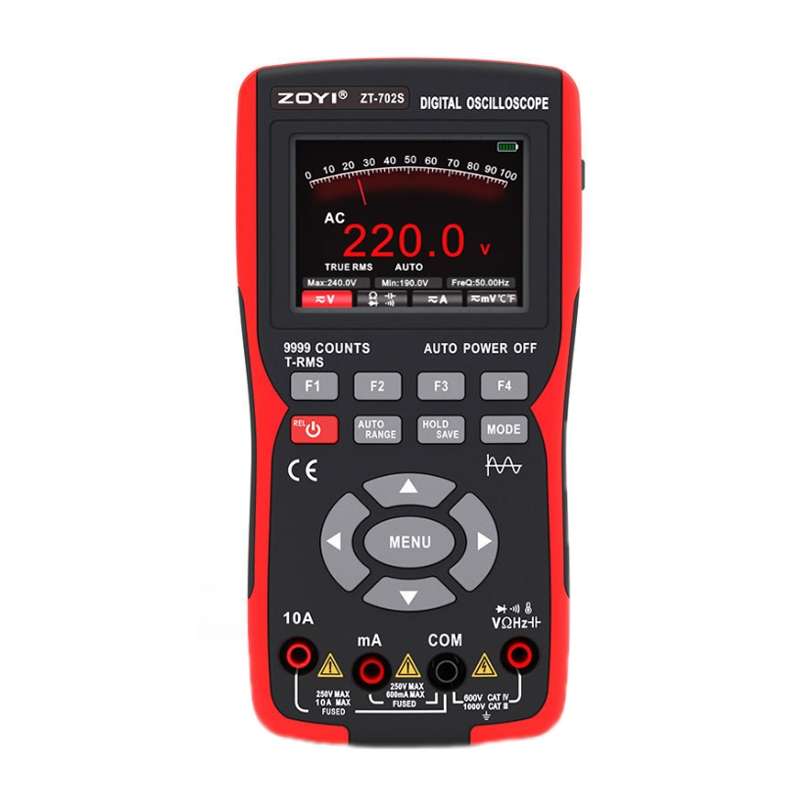

ZOYI Color Screen Multifunctional Handheld Digital Oscilloscope Multimeter(English)

1. Range: auto/manual
2. Display: 9999 words
3. Power supply: 18650 battery 4000mAh
4. Input voltage: 400V (DC+AC peak) MAX
5. AC current ACA: 10uA~10A
6. DC current DCA: 10uA~10A
7. AC voltage ACV: 0.01mV~750V
8. DC voltage: DCV0.01mV~1000v
9. Resistance: 0.1~100 milliohms
10. Capacitance: 0.01nF~10000uF
11. Frequency: 0.1Hz~5MHz
12. Temperature: -20~1000 degrees Celsius
13. Bandwidth: 10MHz
14. Record length: 64Kbyte (k)
15. Sampling rate range: 1.5Sa/s=48MSa/s
16. Waveform interpolation: (sinx) x
17. Scan rate range: 50ns/div=20s/div
18. Time base accuracy: 20ppm
19. Three measurement modes
- Automatic: automatic triggering will collect and refresh waveform records in real time, and will not retain the waveform
- Normal: when the amplitude of the collected signal reaches the set trigger level value, the trigger system will lock the waveform and keep it displayed on the screen. The oscilloscope is still collecting. When it is triggered again, the waveform on the screen will be updated to the current waveform again, which is a continuous trigger
- Single: when the amplitude of the collected signal reaches the set trigger level value, the trigger system will lock the waveform and keep it displayed on the screen. When the waveform acquisition is completed, the STOP state is displayed, and the oscilloscope stops signal acquisition; if you need to trigger again, press HOLD to cancel STOP and enter the waiting trigger state
21. TYPE-C data cable connects to the DC 5V output adapter for charging

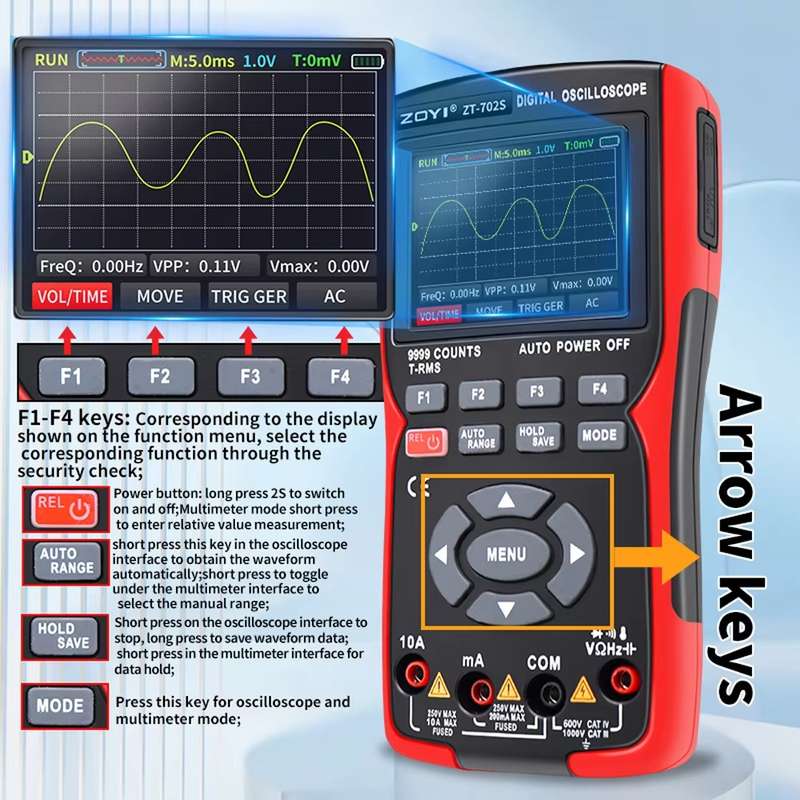

22. Long press for 2 seconds to turn on and off, short press to enter relative value measurement

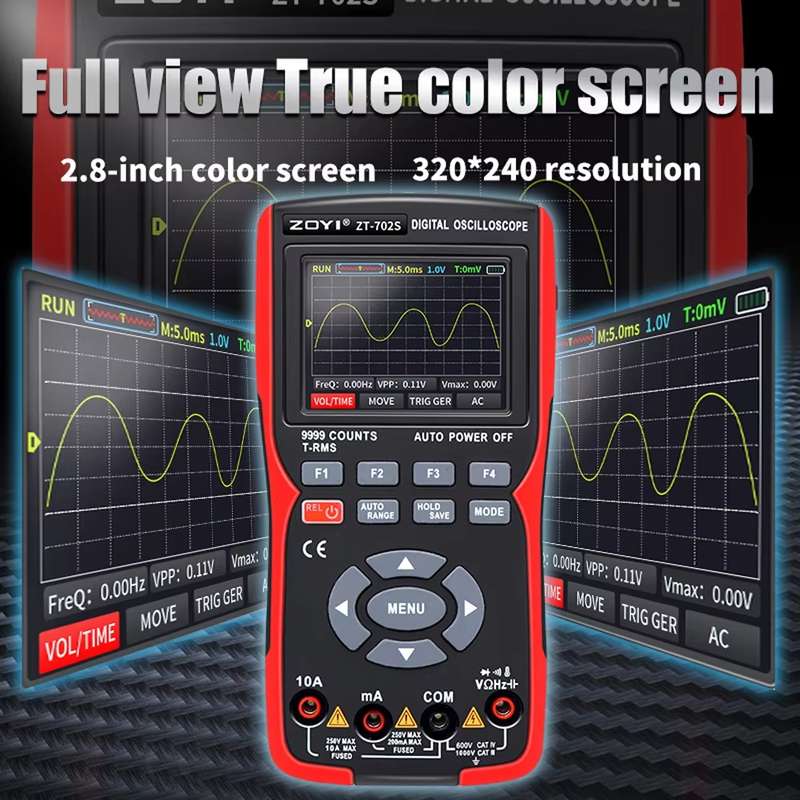

23. The screen uses a 2.8-inch IPS full-view color screen

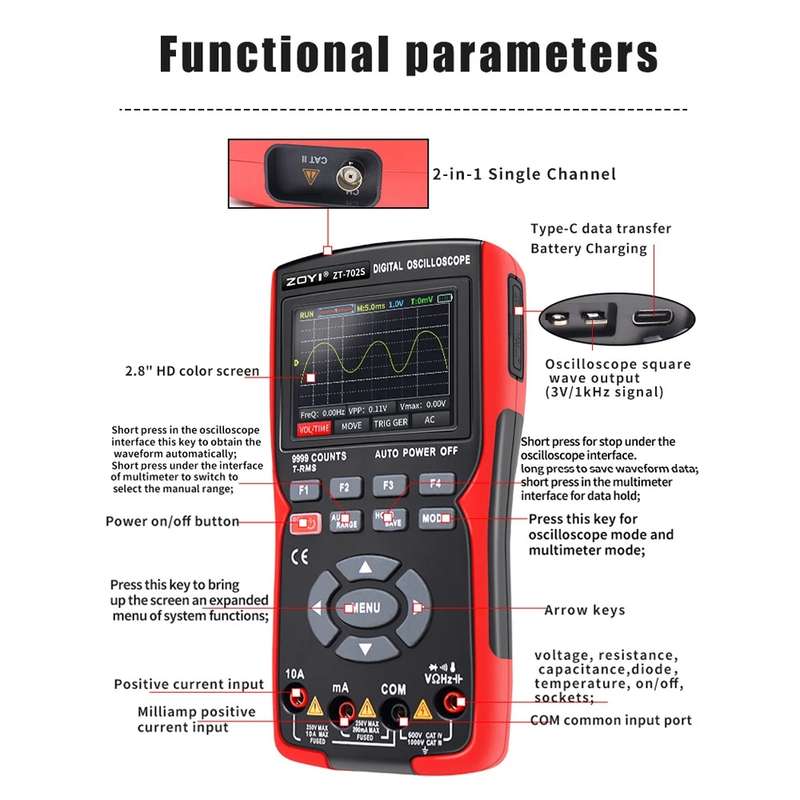

24. Oscilloscope square wave output terminal, permanent output 3V/1KHZ signal square port is ground output metal end round port is signal output metal end
25. Dimensions: 180x90x45mm
26. Net weight: 348g
