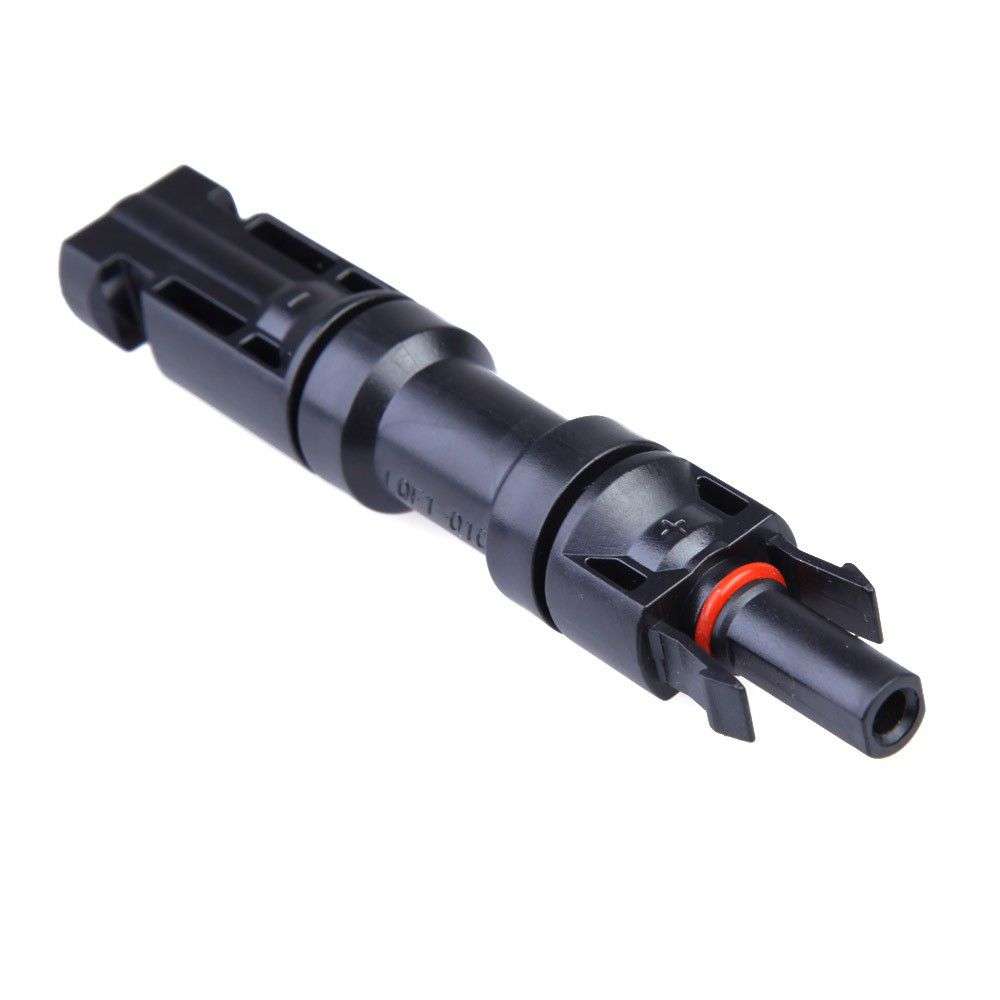

ZS - In-line MC4 PV Solar Fuse - 20A
Sold

ZS - In-line MC4 PV Solar Fuse - 20A

New 10 were available
Indicative market price: R399.00
R200.00
50% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
8431549645094_45948434219302
Bob Shop ID
613318138

Feature:
- 20A in- line Diode Connector Solar Panel Cable Connectors
- Practical connector used between Solar panel and switch box to prevent the reversal of current
- Contacts for the connector are copper, coated with tin for easy solder adhesion Each end nuts comes with rubber bushings for air tightening
- This MC4 connector is rated as IP67 IP (Ingress Protection) ratings the first numeral refers to the level of dust resistance and the second numeral refers to the level of water resistance
- Diode built in the connector
- TUV- approved Connector head

Specification:
- MC4 Connector Material: PPO, PC
- Degree of protection: IP67
- Rated current: 20A
- Flame class: UL94- V0
- Rated voltage: 1000V(TUV)&600V(UL)
- Safety class: II
- Test voltage: 6kV(50Hz,lmin)
- Insertion force/withDrawal force: 50N/?50N
- Pin dimensions: F4.0mm
- Connecting System: Crimp connection
- Contact resistance of plug connector: 5m
- Temperature range: - 40 Degrees Celsius ~ + 85 Degrees Celsius
- Contact material: Copper, Tin plated
- Highest Temperature: 110 Degrees Celsius
- Insulation material: PPO


What's in the box
Solar Fuse
