WiFI NVR Kit 4CH 1080P Outdoor camera with 4CH NVR CCTV IP Camera System
Features:

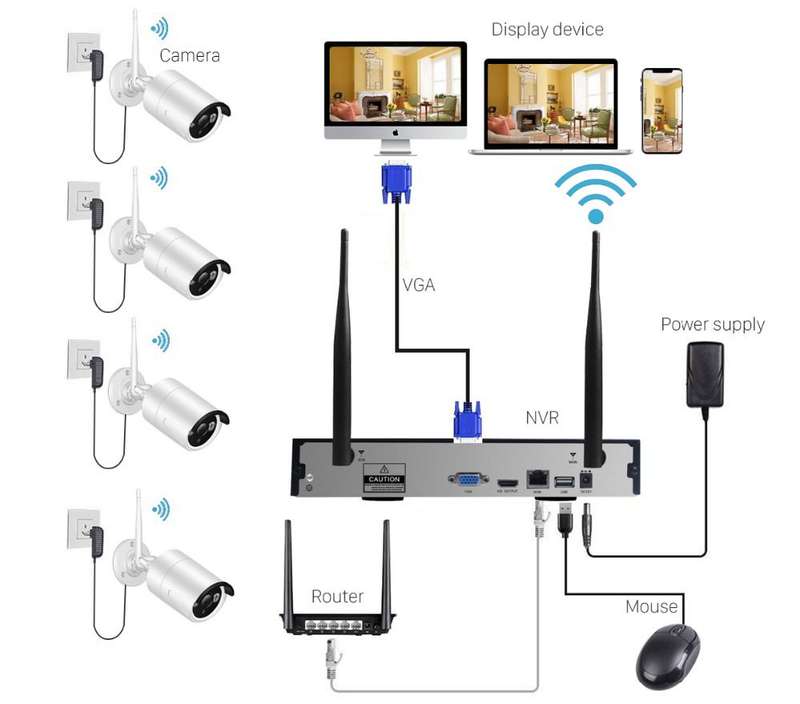

[Easy Installation] No need to run cables all over your house to connect the NVR and cameras. Simply mount the cameras, plug in the adapters, and go. The connection between the NVR and cameras is through your internet.
Download free app"IP PRO", and follow the in-app instructions to set up the wireless security system.
[Free Remote] Free app for live view & playback on smart devices with WiFi or 2G/3G/4G anywhere anytime; unpack and play when the power is on, without configuration for live video (no HDD in the system; video feed is saved to the hard disk, smart phone supported: iPhone, Android, iPad.
[Steady Signal Transmission] With a built-in dedicated module, it's safer, more reliable, and anti-tamper for transmission. Capable of being used with or without a cable, its adaptable for various environments.
[Motion Alert] Receive an alert on your app whenever motion is detected, and customise which areas on the cameras' live view will trigger an motion alert, thus preventing unwanted alerts and only getting notified by alerts that really matter.
[24/7 Customer Support] Support P2P cloud, remote connection in seconds, fluent image quality, and clear and delicate pictures.
Description:

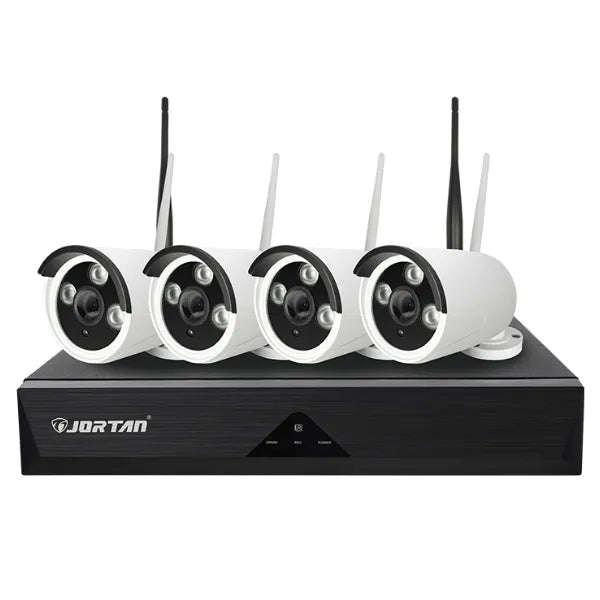

This is a security surveillance camera system, including a network NVR and 4 wireless cameras.
It is very convenient to install and has very good quality video recording.
Store and view video on computer, mobile phone, and some other platform system.
Easy to download app via QR code scan.
Cameras can be installed outdoors.
WIFI transfer distance is up to 120 meters in open areas and up to 60 meters through 3-layer walls.
Have function of Playback, internet cloud storage, motion detection, automatic email alarm, multi-platform view and control, plug and play, p2p client to mobile phone;
Specifications:
Brand name: Anspo
Plug type: EU, US, UK (we will send related plug according to your country)

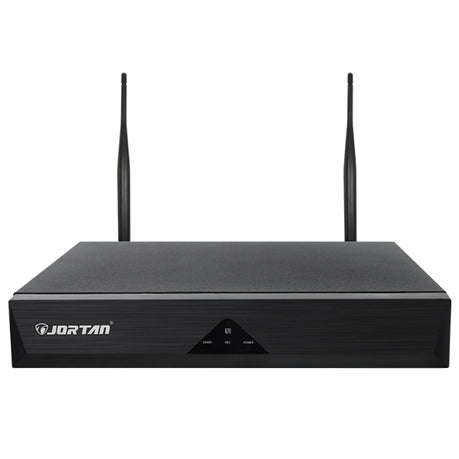

NVR Parameter:
NVR Color: Black
Operating system: Embedded linux OS
Interface: 1/4 adaptable RJ45 10M/100M, 2 WIFI interface
USB Interface: 1/2 USB 2.0
Video Compression: H.264
Video Input: 4CH WIFI or RJ45
Video Output: HDMI / VGA / WIFI / RJ45
Video HD Output: HDMI (1280720)
VGA Output: 1 VGA (1440900, 12801024, 1VGA(1440900,12801024,1024768 Selectable)
Video Resolution: 4CH 720P
Backup: Hard disk / USB HDD / Network
Frame Rate: 25 FPS
Video Playback: 4-Channel Simultaneous Playback
Interface: 4RJ-45 10M/100M; WIFI, USB, DC 5.5mm
Network Service support: TCP/IP, UDP, HTTP,DDNS, SMTP, LAN, DHCP, PPPoE
Wireless standard support: IEEE802.11b, 802.11g, 802.11n Draft
AC Power Supply: 100V~240V; 47Hz~63Hz
Work power: DC 12V 2A
Consumption(excluding HDD): Working temperature: -10 ~ 55°C
Work Humidity: 10%-90%

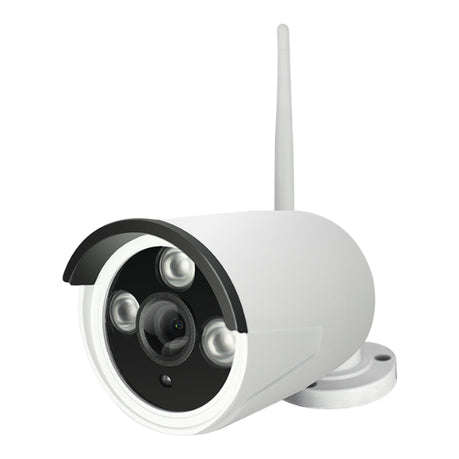

IPC Specifications:
Specification: 1.0MP
Image Sensor Type: CMOS
Image Sensor Size: 1/4 Inch
Sensor Horizontal Resolution: 720P(1280*720pixs)
Lens: 3.6mm
Video Output: 1.0Vp-p/75 BNC
S/N Ratio: > 58 dB
Consumption: Shutter Speed: Electronic shutter 1/60-1/100000 Sec
White Balance: Automatic
Backlight Compensation: Automatic
IR Irradiation Distance: 10 m~20 m
IR light: 3pcs
Minimum Illumination: 0.1LUX/F1.2
Interface: WIFI, RJ45, DC5.5mm
Application: Outdoor/Indoor
Waterproof: Yes
Weatherproof: Yes
Dustproof: Yes
Power Supply: DC 12V 1A
Working temperature/Humidity: -10? to +50? / 30%~80% RH
Storage temperature/Humidity: -20? to +60? / 20%~90% RH
Package includes:
4* WIFI IP Camera
4* DC 12V1A power supply(for IPC)
4* Screw bag(for IPC)
4* Antenna(for IP Camera)
1* WIFI NVR
1* USB mouse
1* 1 meter network cable(for IPC code match)
1* DC 12V2A power supply(for NVR)
1* Installation instructor
What's in the box
1 x WiFI NVR Kit 4CH 1080P Outdoor camera with 4CH NVR CCTV IP Camera System
