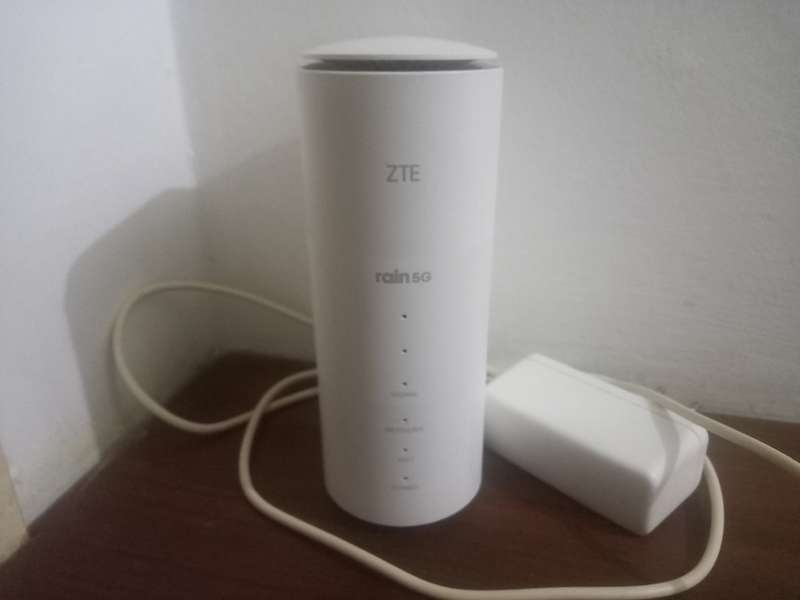

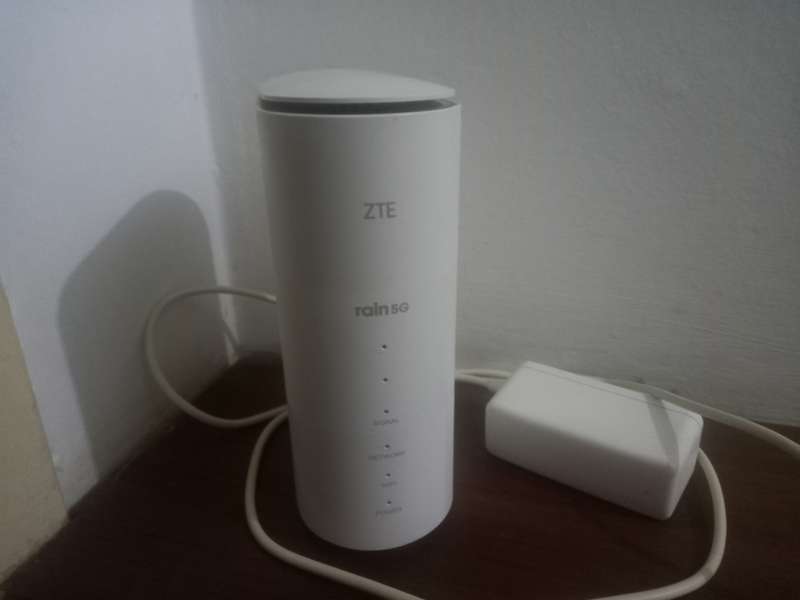

ZTE MC801A 5G Indoor WiFi CPE

The devise is network locked. I used it as a wifi extender.

ZTE MC801A is a 5G Indoor WiFi router supporting the latest Wi-Fi 6 access technology, allowing multiple users to access the 5G network at the same time. ZTE 5G Indoor CPE MC801A supports both NSA & SA 5G Networks, compatible with mainstream 4G and 5G standards. The device enables consumers to enjoy the advantages of ultra-fast 5G networks and 5G services, including immersive streaming, gaming and entertainment experience through virtual reality, augmented reality and 3D technologies.

Specifications

Category: 5G Router
Communication Standard: 3GPP Release 15
Chipset: Qualcomm 5G SDX55M
CPU: Cortex A7 up to 1.4GHz

Supported networks:

Network technology: 5G NR, 3GPP Rel 15 5G NR SA & NSA option 3X
Network frequencies: 5G: 41/77/78/79
Support 4G LTE Band: 1/3/7/20/28/40 and 3G WCDMA Band: 1/8

Data rate speeds:

5G: DL: 3.8 Gbit/s and UL: 542 Mbit/s
LTE Category 22 (DL: 2.4 Gbit/s and UL: 316 Mbit/s), 5CA, MIMO 4x4 for B1/3/7
WCDMA: DC (up to 42Mbit/s)
Modulation: DL 256QAM, UL 64QAM
Wi-Fi: 802.11a/b/g/n/ac/ax(WiFi 6), dual-band, 4 x 4 MIMO
WiFi 5GHz: up to 80MHz, 2 x 2 MIMO, up to 1.2Gb/s
WiFi 2.4GHz: up to 40MHz, 2 x 2 MIMO, up to 575Mb/s
WLAN encryption standards: WPA, WPA2, WPS
Support up to 30 WiFi users simultaneously
Functions: Blocklist, 3 SSIDs (2 Primary, 1 Guest)

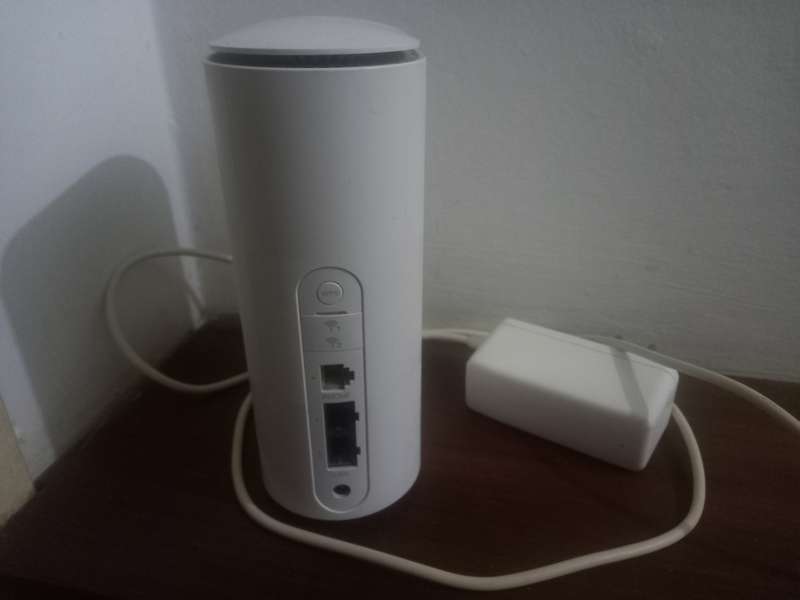

Interface:
SIM card slot(NANO SIM) x 1
Tel port(RJ11) x 1 (CSFB)
WAN/LAN GE port x 1
1GE port(RJ45) x 1
DC port x 1
Administration console: Full access from a web browser 192.168.0.1
Power supply: 12V / 4A
Button: Power button, reset button
SIM Card size type: NANO SIM
Support OS: Linux
Cellular Antenna Ports: 2 slots for external antenna with TS-9 connector(Buy ZTE MC801 5G external antenna) not including with is router
Other functions: MAC address filtering, Wi-Fi encryption authentication, VPN, IPv6 support, VoLTE, DMZ, SSID, Guest SSID, Port Forwarding, Watchdog Service, DHCP settings, network selection, APN settings etc

What's in the box
1 x Router
1 x Power adapter
