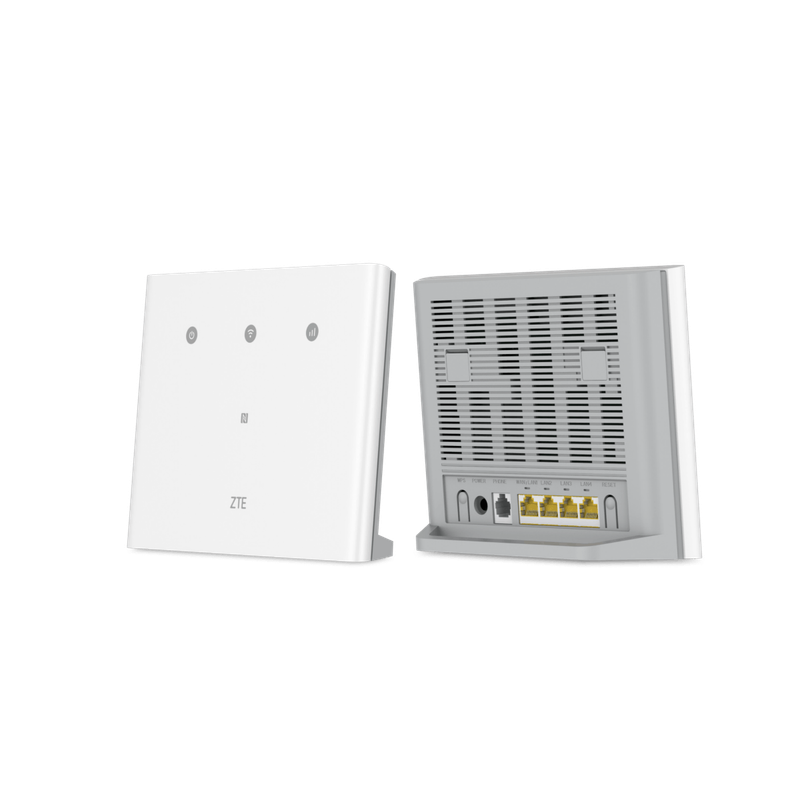

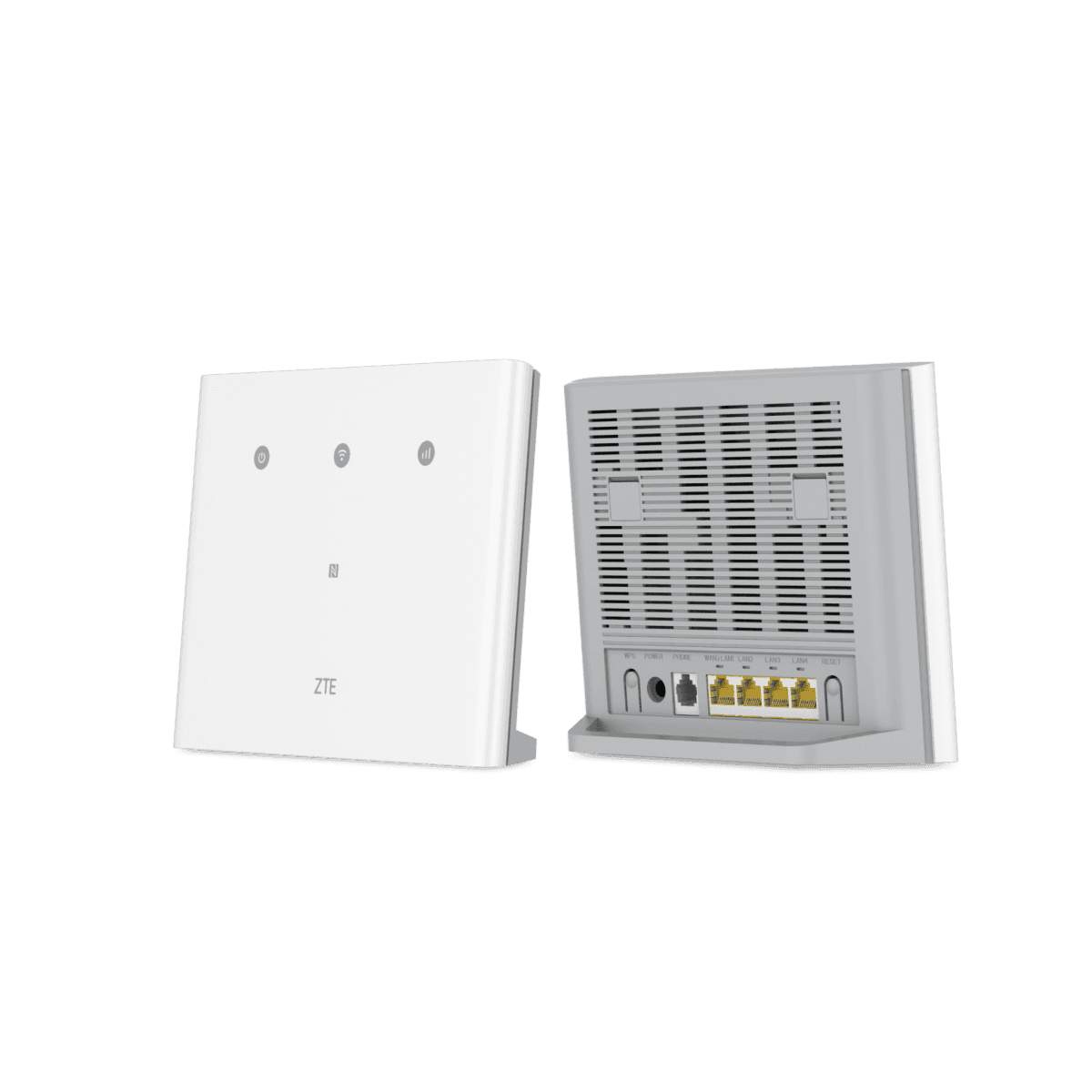

ZTE MF296D ROUTER

ZTE MF296D is a 4G wireless router that provide both LTE Cat6 high speed data service and voice service to home users or business users. With a sleek upright design, the MF296D supports data downlink speeds of 300Mbps, and 50Mbps for uplink, delivering high-speed mobile internet access for up to 64 users simultaneously.

With the Vertical design, ZTE MF296D is a stylish addition to your desks. Meeting the needs of customers all over the world, ZTE MF296D supports a broad range of LTE spectrum used in different markets globally. Support for external antenna will allow the MF296D to be deployed in areas of poor mobile signals.

ZTE MF296D WiFi router Specifications:

* Product type: 4G Wireless Router

* Chipset: ZX297520V3 + RTL8192ES

* Network: FDD/TDD/UMTS

* Frequency bands:
- FDD-LTE: B1/B3/B7/B8/B20/B28
- UMTS: B1/B2/B5/B8

* LTE Cat6, DL 2CA

* Peak data rate:
- FDD-LTE DL/UL 300/50Mbps
- TDD-LTE DL/UL 220/10Mbps
- UMTS DL/UL 42/5.76Mbps

* Wi-Fi: 802.11b/g/n, 2.4GHz 2x2, 5GHz 2x2, DBDC, 2.4GHz 300Mbps, 5GHz 867Mbps

* Support up to 16 wireless users

* Dimensions: 107.5(H) x 63.8(W) x 14.8mm

* Interfaces:
- 4 x RJ45(GE, 1 x WAN/LAN, 3 x LAN)
- 1 x RJ11(FXS)
- 1 x SIM Slot(3FF)
- 2 x SMA(External antenna)
- 1 x DC470(12V DC Power Supply)
- 1 x Micro USB(Factory Test)

* LED: Power, WiFi, Network

* Button & Switch: WPS, Reset, Power

* Battery: 2000mAh, working time 8 hours

* Other features: Data service, Voice Service, WebUI, ZTE Link, FOTA/TR069(Customized), Firewall, IPv6/IPv4, Mainstream OS supported
