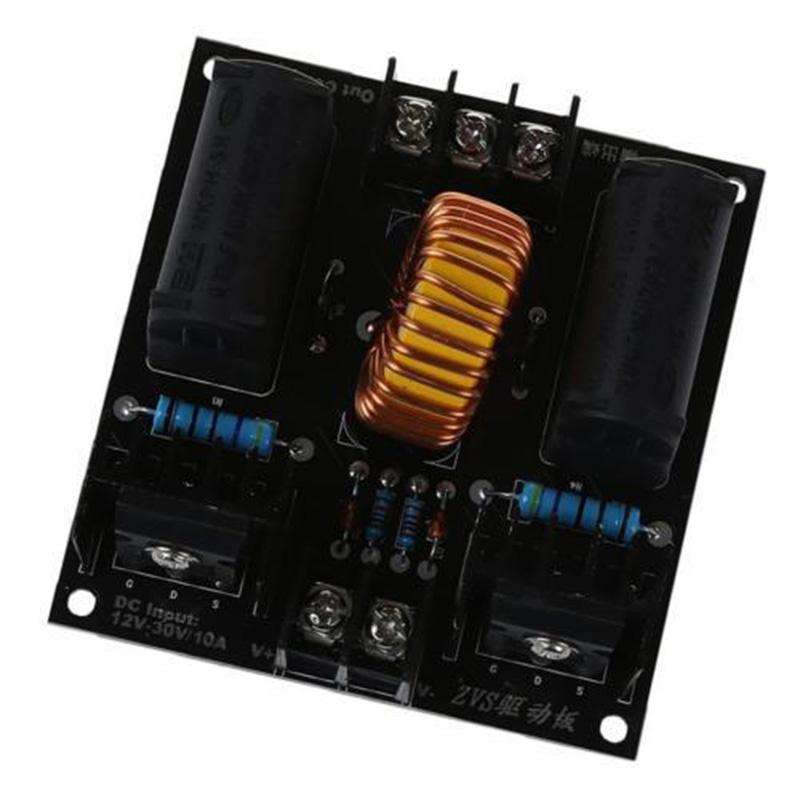

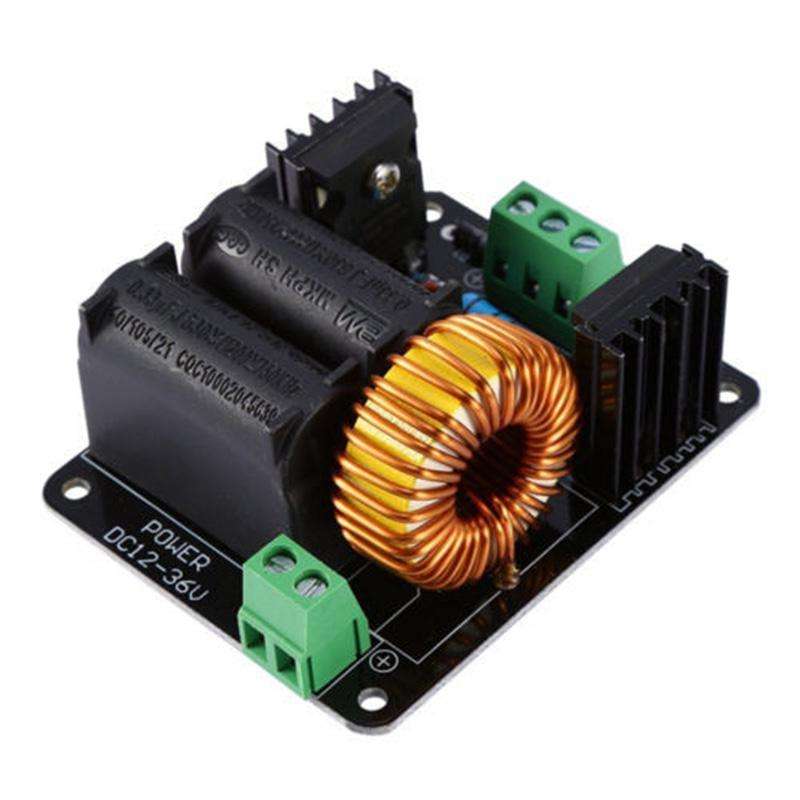

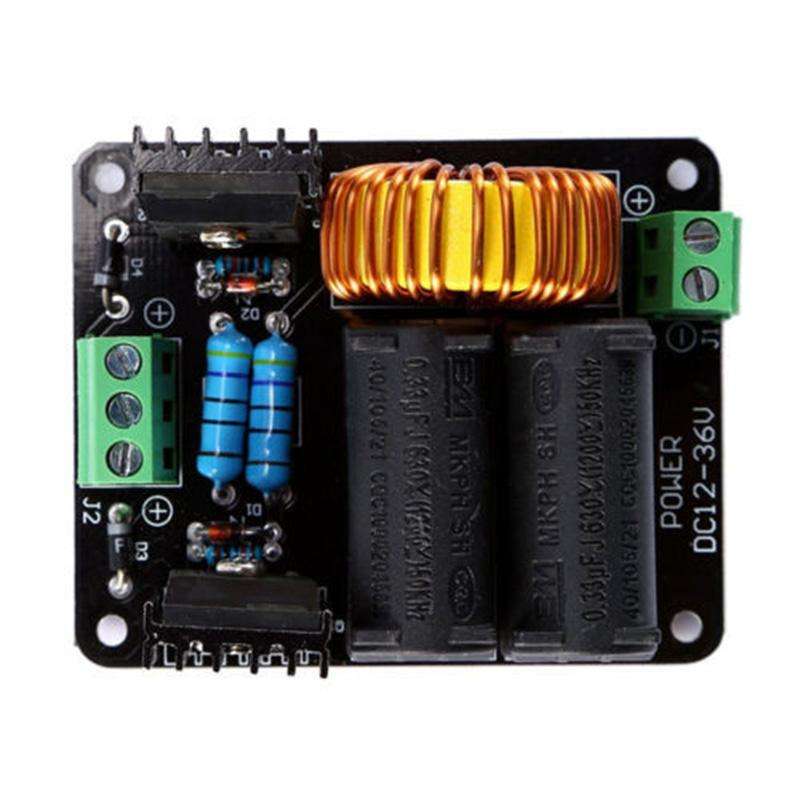

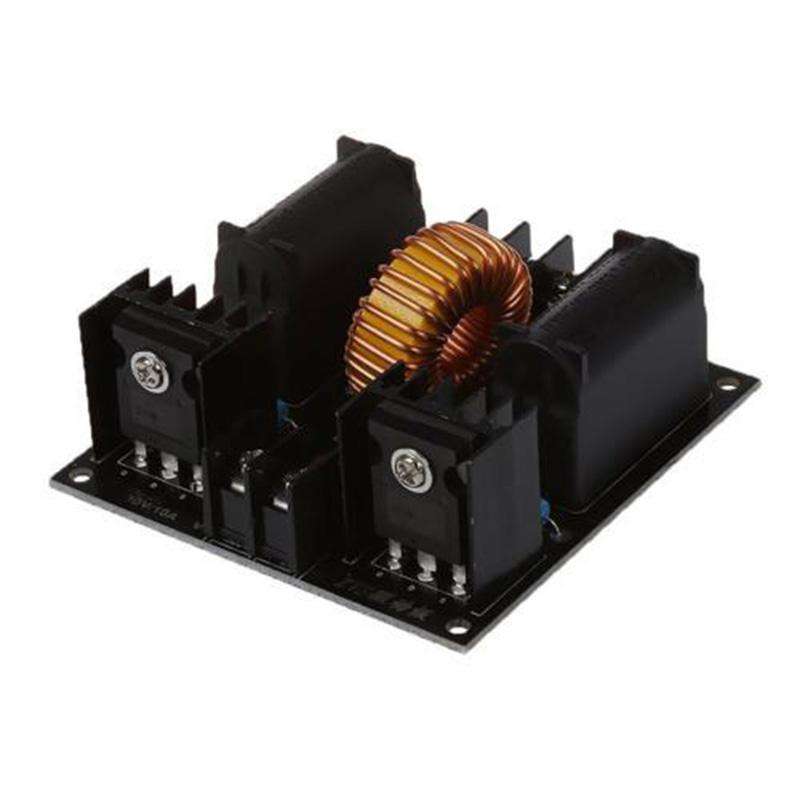

ZVS Module Flyback Driver Wireless Transmission Power Supply Module DIY Coil

1. This Zero Voltage Switching driver circuit is commonly referred to as the ZVS circuit.
2. Because of its high power, low heating, simple and reliable, it is widely used by fans to coil (SGTC) and other devices.
3. Using 12-24V DC input, the power supply current is required to be not less than 4A at 12V and not less than 8A at 24V.
4. It can be powered by a switching power supply, battery or it can be rectified and filtered by a high-power with a filtering capacitance of no less than 10000uF.
5. Strong material ensures strength and durability for long lasting usage.


EDA0081163
