IMX290LQR Sensor - Diagonal 6.46 mm (Type 1/2.8) Square Pixel Array Mono CMOS Image Sensor
Back-Illuminated CMOS image Sensors with Improved Visible Light and Near Infrared Sensitivity that Support 1080p
Sony has developed the approx. 2.13M effective pixel back-illuminated CMOS image sensors IMX290LQR and IMX291LQR with improved sensitivity in the visible-light and near infrared light regions for industrial applications.
A new 2.9 µm-square unit pixel has been developed that combines a back-illuminated structure with technology for improving near infrared sensitivity to further enhance picture quality at low illumination while at the same time realizing Full HD cameras for industrial applications.
This increases the sensitivity by as much as a factor 2 or factor 3 in the visible-light region and more than a factor 3 of the sensitivity in the near infrared light region, than that of the existing Sony product (IMX236LQJ).
Astrophotography Performance

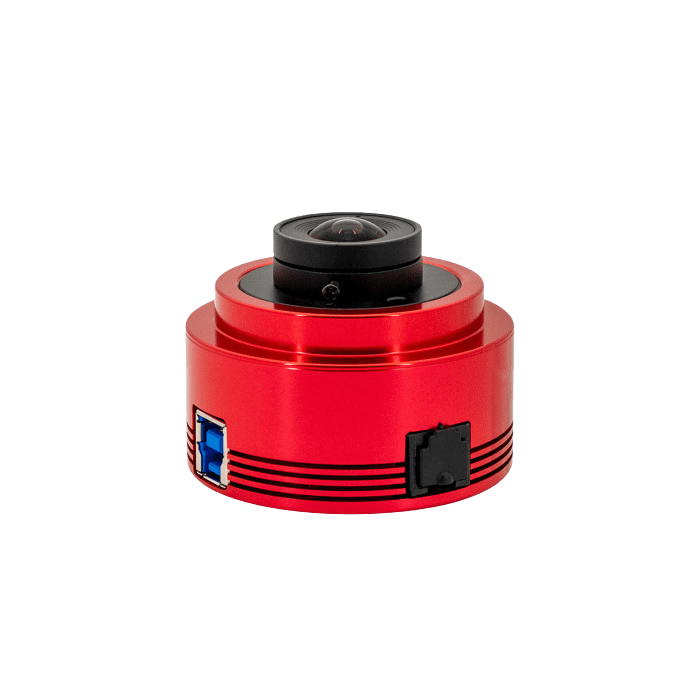

ASI290MM offers very good performance for astrophotography. Low read noise, high dynamic range, QE peak about 80%, AR protective window and much more.
USB 3.0 Port & ST4 Port
USB 3.0 Port: Can provide 5Gb bandwidth to let ASI290 run at 82.2fps (12bit, normal mode) or 170 fps (10bit, high speed mode) at full resolution(2.1Mega).
ST4 Port: Can be used connect with auto guide port of mount, for guiding.
Specifications
Sensor: 1/2.8 CMOS IMX290/IMX291
Resolution: 2.1Mega Pixels 1936×1096
Pixel Size: 2.9µm
Exposure Range: 32µs-2000s
ROI: Supported
Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)
Interface: USB3.0/USB2.0
ST4 Guider Port: Yes
Focus Distance to Sensor: 12.5mm
Shutter Type: Rolling Shutter
Protect window: AR coated window
Operating System Compatibility: Mac, Windows, Linux
Interface: USB3.0/USB2.0
Bit rate: 12bit output(12bit ADC)
Adaptor: 2 / 1.25 / M42X0.75
Dimension: 62mm X 36mm
Weight: 120g or 4.2 ounces (without lens)
Working Temperature: -5°C - 45°C
Storage Temperature: -20°C - 60°C
Working Relative Humidity: 20% - 80%
Storage Relative Humidity: 20% - 95%
Supported resolution
USB2.0 MAX FPS
1936×1096: 20.4
1280×960: 35.3
640×480: 141.5
320×240: 355.9
2X2Bin :968×548: 20.4
USB3.0 MAX FPS(12bit/10bit)
1936×1096: 82.2/170
1280×960: 93.6/193.9
640×480: 184/381.2
320×240: 355.9/737.5
2X2Bin :968×548: 82.2/170
More resolutions can be user defined
