Zyxel VMG1312-B10A Wireless N Router VDSL2 4-port Gateway with USB
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information

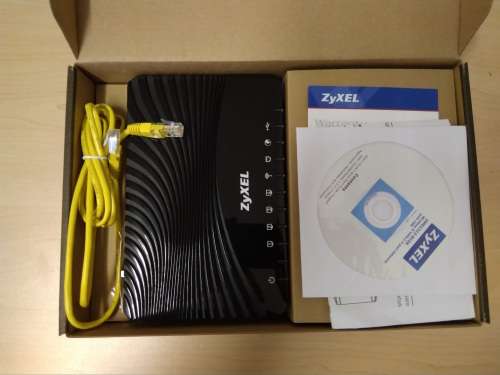

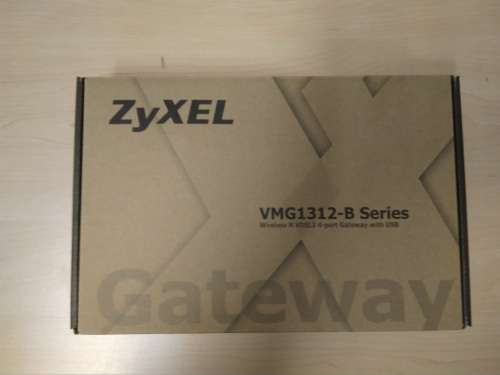

This snazzy Zyxel ADSL Router is virtually brand new. We used it for just a couple of weeks but are selling it because we moved to LTE instead of ADSL. It looks brand new and comes in the original box with all the original cables, instructions and CD!
The coolest thing about this router is the interface - much better than most I've tried. It also allows you to plug in a 3G Dongle for 3G failover!
The only small blemish on the router is that I had to tear off a sticker on the bottom that included our ADSL credentials, so there is some sticker residue left, but that's only visible when you flip it over and certainly won't affect its performance.
Hardware Specifications
- WAN:
- One RJ-11 port (VMG1312-B10D) for VDSL/ADSL2+ over POTS
- LAN: Four 10/100 Fast Ethernet ports
- WLAN: Two internal antennas
- USB: One for USB2.0 host interface
- WLAN/WPS button: One button for WLAN on/off and one button for WPS configuration
- Reset/Restore button: One real button for restore factory default settings
Status LED indicator: Power, Ethernet, DSL, Internet, WLAN/WPS, USB
VDSL Compliance
- ITU-T G.993.2 VDSL2, band plan 997, 998
- Support VDSL profile: 8a/b/c/d, 12a/b, and 17a
- G.994.1 (G.hs) Handshake
- Rate adaption
- UPBO (Upstream power back-off )
- Seamless Rate Adaption (SRA)
- VDSL OAM communication channels
- INP: up to 16 symbols
- PTM mode
- G.INP
- G.vector (G.993.5)
- PhyR configurable
ADSL Compliance
- ITU-T G.992.1 (G.dmt) compliant
- ITU-T G.992.2 (G.lite) compliant
- ANSI T1.413 compliant
- ITU-T G.992.3 (ADSL2) compliant
- ITU-T G.992.5 (ADSL2+) compliant
- Reach-Extended ADSL (RE ADSL)
- Seamless Rate Adaption (SRA)
- Support VC-based and LLC-based multiplexing
WLAN
- IEEE 802.11 b/g/n compliance
- Frequency: 2.4 GHz
- Data rate: 300 Mbps
- WPA/WPA-PSK, WPA2/WPA2-PSK
- WEP data encryption 64/128 bit
- Wireless Protected Setup (WPS)
- Multi SSID (up to 4) and hidden SSID support
USB
- File sharing
- 3G/4G* dongle access support
Bridge/Router
- PPPoE (RFC2516)
- PPPoA (RFC2364)
- DHCP client/server/relay
- DNS proxy
- DHCP option 60/ 61/125
Firewall/Security
- 802.1x Authentication (EAP-TLS)
- PAP / CHAP
- MS-CHAPv1 and v2
- Stateful Packet Inspection (SPI)
- Parental control: Protocol Packet Filter/URL keyword blocking, scheduled filtering policy based on time of day.
- ACL Rule support: (32 ACL rules)
- DoS Protection
- Report and logs via SysLog, GUI, email daemon
