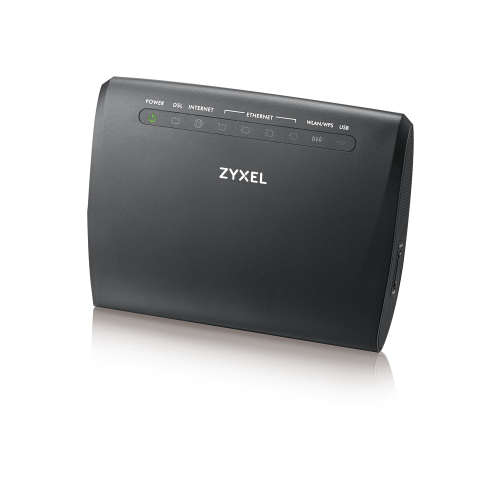

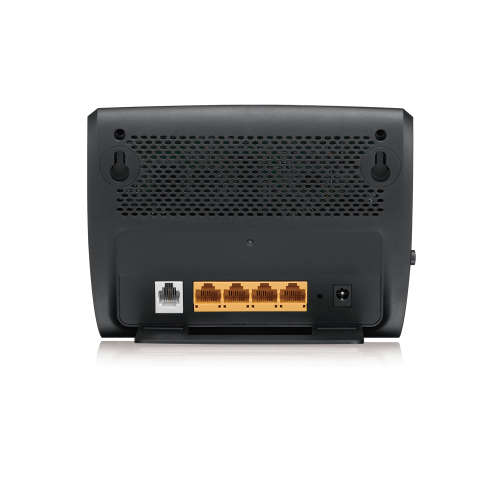

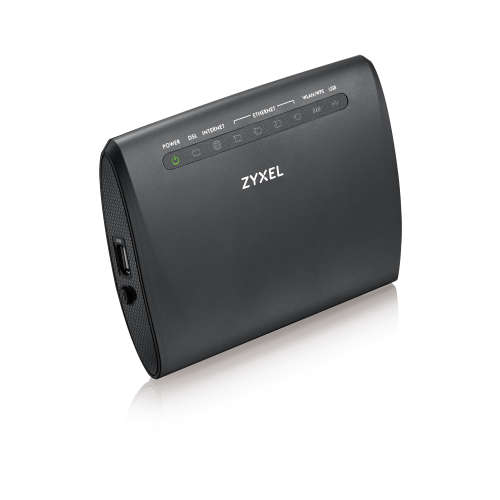

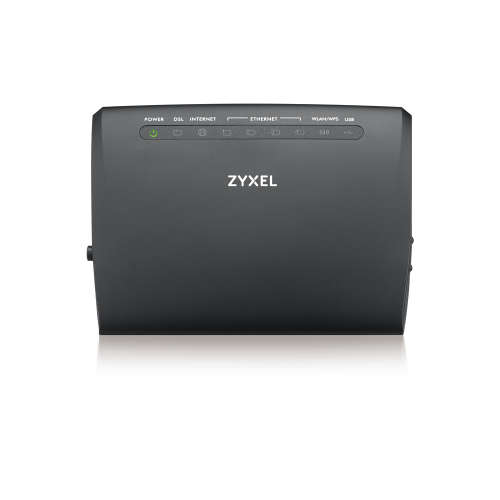

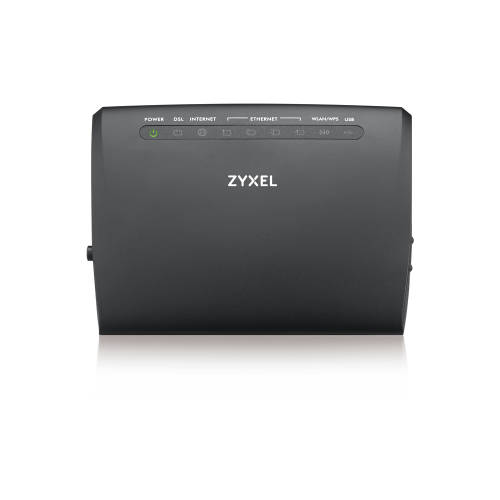

Zyxel VMG1312-B10D Wireless N VDSL2 4-port Gateway with USB

• G.vectoring to maximize service range for service providers
• Advanced QoS to ensure service quality of triple-play services
• Remote provisioning and management through TR-069/TR-181 issue-2
• ROM-D feature for easy distributor/operator customization services
• Easy upgrade of 3G USB supports through configuration file

The Zyxel VMG1312-B10D Wireless N VDSL2 4-port Gateway with USB supports Vectoring technology to eliminate crosstalk or interference among different VDSL lines. In the mechanism, Vectoring significantly increases bit rates to compete with cable/fiber technology as well as to enlarge service coverage without changing the current infrastructure - a way to significantly save cost comparing to fiber-to-the-home (FTTH) deployments, while the CAPEX can be optimized by improved data rates and coverage without upgrading equipment.

2.4 GHz 11n (2x2) for superior performance and coverage : The Zyxel VMG1312-B10D features 802.11n technology to provide an ultimate combination for both speed and coverage. With 802.11n wireless data rates of up to 300 Mbps, the VMG1312-B10D provides stable, reliable wireless connections for high-speed data and multimedia applications; the 802.11n technology also empowers the device to eliminate dead zones and extend coverage while retaining backward compatibility with any certified device.

TR-069/TR-181 issue-2 remote management : With the TR-069/TR-181 standard management specifications, the Zyxel VMG1312-B10D allows service providers to manage and configure client devices remotely without interfering other end users. This unique feature not only offers true plug-and-play experience, but also reduces deployment complexity and saves operating as well as maintenance costs for service providers.

Always-online, always-compatible 3G alternative : The Zyxel VMG1312-B10D features optional 3G connectivity as a failover (or alternative) connection to mobile broadband networks in case of DSL outage. Internet traffics will be temporarily routed through the 3G dongle plugged into the USB port; all traffics will be switched back as soon as the regular broadband service becomes available again. It is also efficient to have instant Internet access in remote offices, activities outside of the office or occasions where DSL service is temporarily unavailable. For comprehensive dongle compatibility, users can simply check and download the respective patch file to enable mobile broadband services immediately without upgrading the entire firmware of the gateway.

VDSL Compliance

• ITU-T G.993.2 VDSL2, band plan 997, 998
• Support VDSL profile: 8a/b/c/d, 12a/b, and 17a
• G.994.1 (G.hs) Handshake
• Rate adaption
• Upstream Power Back-Off (UPBO)
• Seamless Rate Adaption (SRA)
• VDSL OAM communication channels
• INP: up to 16 symbols
• PTM mode
• G.INP
• G.vector (G.993.5)
• PhyR configurable

ADSL Compliance

• ITU-T G.992.1 (G.dmt) compliant
• ITU-T G.992.2 (G.lite) compliant
• ANSI T1.413 compliant
• ITU-T G.992.3 (ADSL2) compliant
• ITU-T G.992.5 (ADSL2+) compliant
• Reach-Extended ADSL (RE ADSL)
• Seamless Rate Adaption (SRA)
• Support VC-based and LLC-based multiplexing

WLAN

• IEEE 802.11 b/g/n compliance
• Frequency: 2.4 GHz
• Data rate: 300 Mbps
• WPA/WPA-PSK, WPA2/WPA2-PSK
• WEP data encryption 64/128 bit
• Wireless Protected Setup (WPS)
• Multi SSID (up to 4) and hidden SSID support

USB

• File sharing
• 3G dongle access support

Bridge/Router

• PPPoE (RFC2516)
• PPPoA (RFC2364)
• DHCP client/server/relay
• DNS proxy
