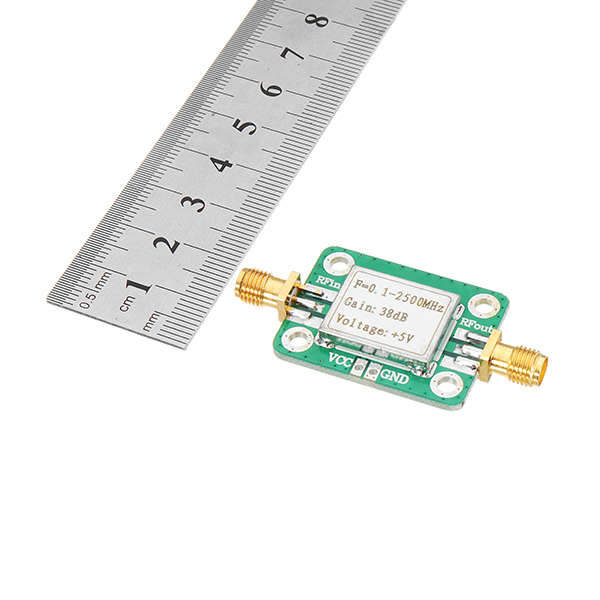

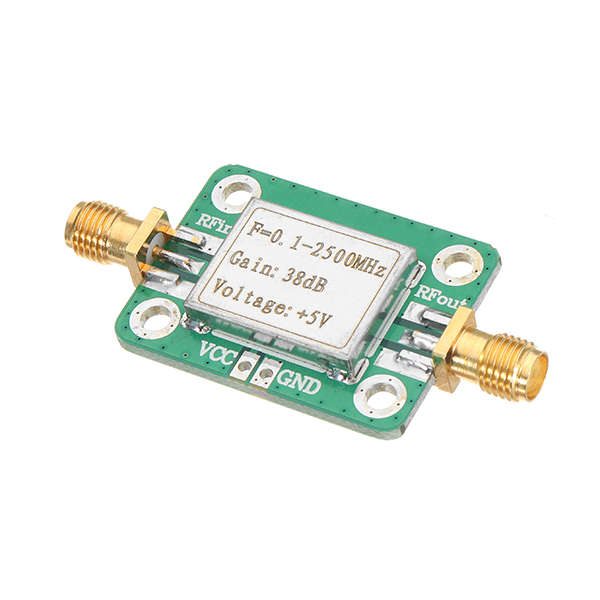

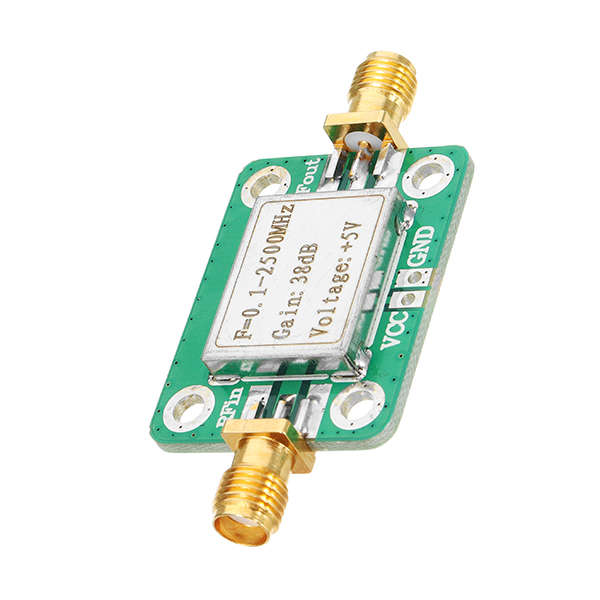

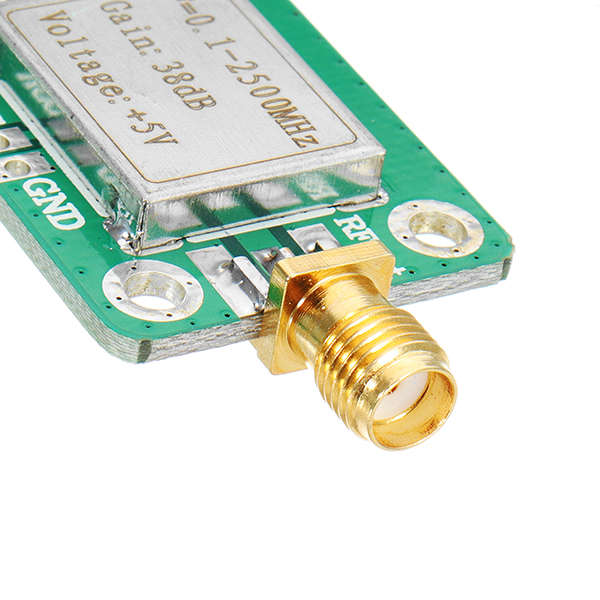

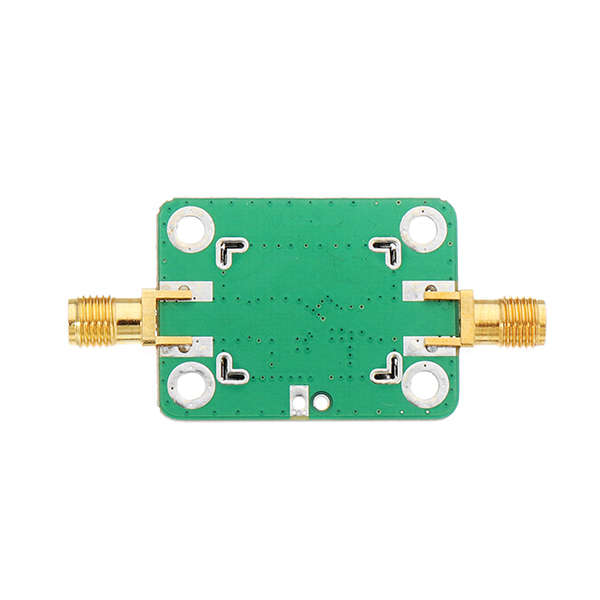

0.1-2500MHz 38dB Gain RF Microwave High Gain Amplifier

20 available / new

R592.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3456

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641097356

null Applications:

The amplifier has the advantages of wide frequency range and high gain, which can be used for various RF receiving gain modules to increase the communication distance. Wide-range short-wave, FM radio, remote receiver, cable signal amplifier and other places where small signal RF amplification is needed.

Technical indicators:

Operating frequency: 0.1-2500MHz
Amplifier Gain: 38dB (Typical)
F= 0.1MHz, gain=38dB
F= 500Mhz gain=38dB
F=1000MHz gain=38dB
F=1500Mhz gain=37dB
F=2000MHz gain=35dB
F=2500MHz gain=33dB
F=3000MHz gain=29dB
Maximum output power: +7dBm (5mW) @1dB compression point
Noise figure: 4.5dB (typical)
Supply voltage: +5VDC
System impedance: 50 ohms

Package included:

1 x0.1-2500MHz 38dB Gain RF Microwave High Gain Amplifier
