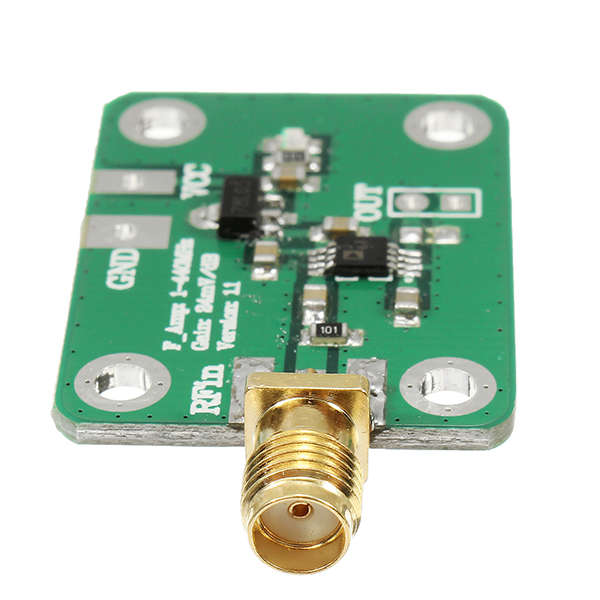

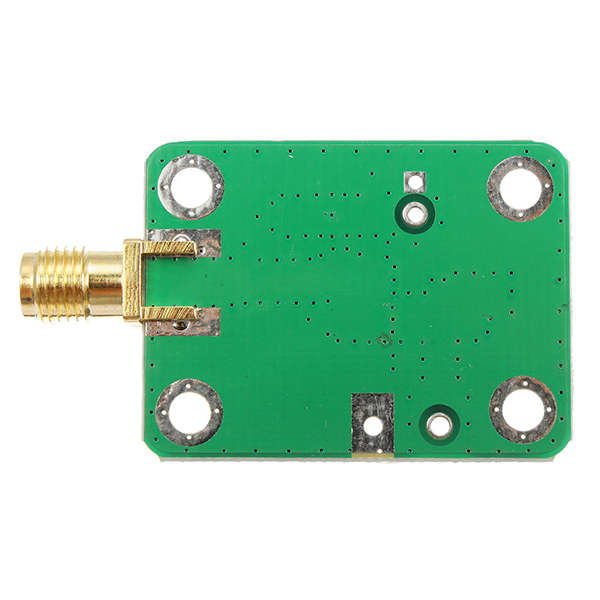

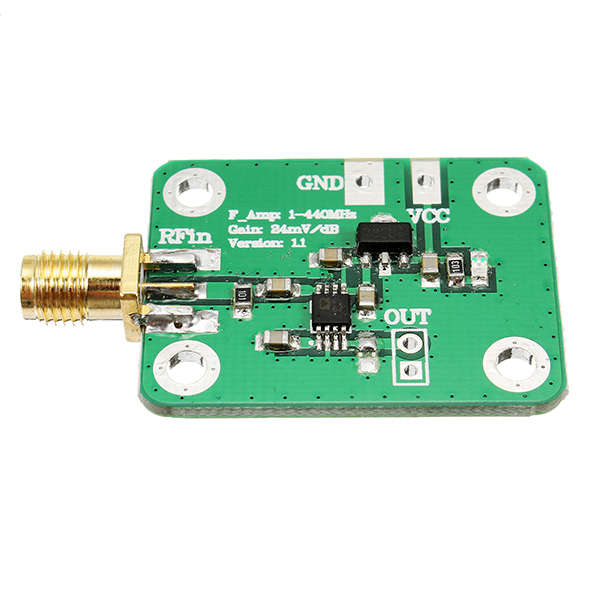

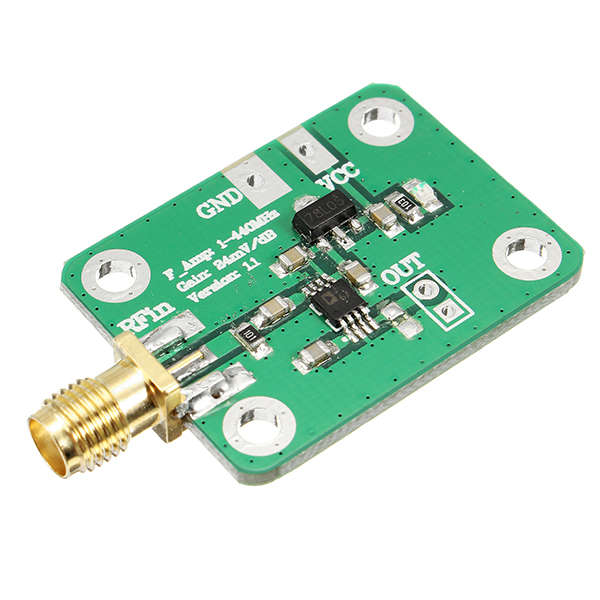

AD8310 0.1-440MHz High-speed H-frequency RF Logarithmic Detector Power Meter For Amplifier

20 available / new

R484.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3456

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641116345

Applications:

The AD8310 is a high-speed voltage-output logarithmic amplifier with a detection frequency range of DC to 440MHz. Has a very fast response time (typically 15 ns) and can be used as an ASK demodulator for more than 10 MHz. It is also the best choice for higher precision IF signal measurement chips. The detector output voltage is equivalent to the input signal dB output, and its applications include RSSI, transmit power control and pulse detection.

Parameter:

1. Operating frequency: 0.1--440 MHz
2. Detection slope: +24 mV / dB
3. Detection intercept: -108 dBV
4. Dynamic range: -77dBm to +18 dBm (95 dB)
5. Linearity error: &pm; 0.4 dB
6. Response time: 15nS
7. Output voltage: 0.35 --- 2.5V
8. Working current: 12mA
9. Operating voltage: 7-15V (with LM78L05 regulator chip)

AD8310 internal block diagram:

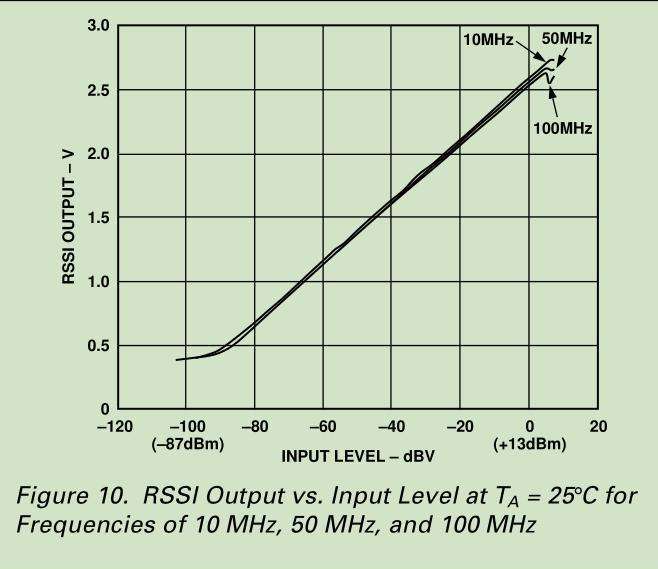

AD8310 detection response curve:

Package included:

1 x AD8310 0.1-440MHz High-speed H-frequency RF Logarithmic Detector Power Meter
