Parameters:

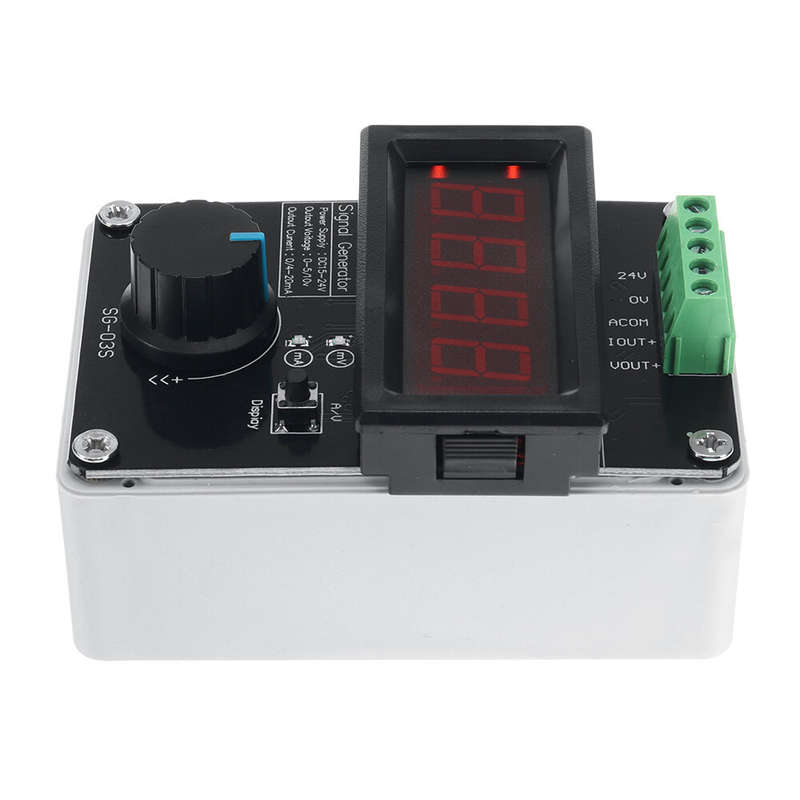

Supply voltage: 24VDCVoltage output: 0-10V adjustable, drive current <20mACurrent output: 0-22mA adjustable, load sampling resistance <500 ohmsAdjustment resolution: 0.1V/0.01V or 0.1mA/0.01mALinearity: better than 0.2%Display mode: 4-digit digital tubeAdjustment method: rotary encoder + keyTerminal interface definition:24v: positive pole of power supply0V: negative pole of power supplyACOM: voltage and current signal output negative poleAout+: Current signal output positive poleVout+: voltage signal output positive poleParameter settings and usage1. Switch voltage/current mode: Click the Display button to switch the current voltage/current mode, the current output value is digitally displayed, rotate the encoder to change the output value, press
