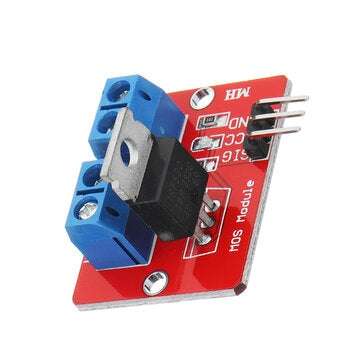

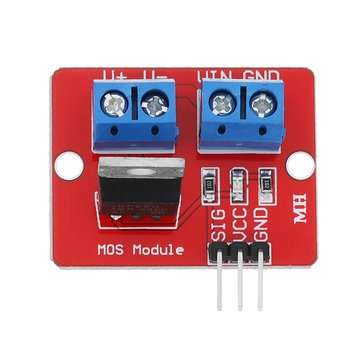

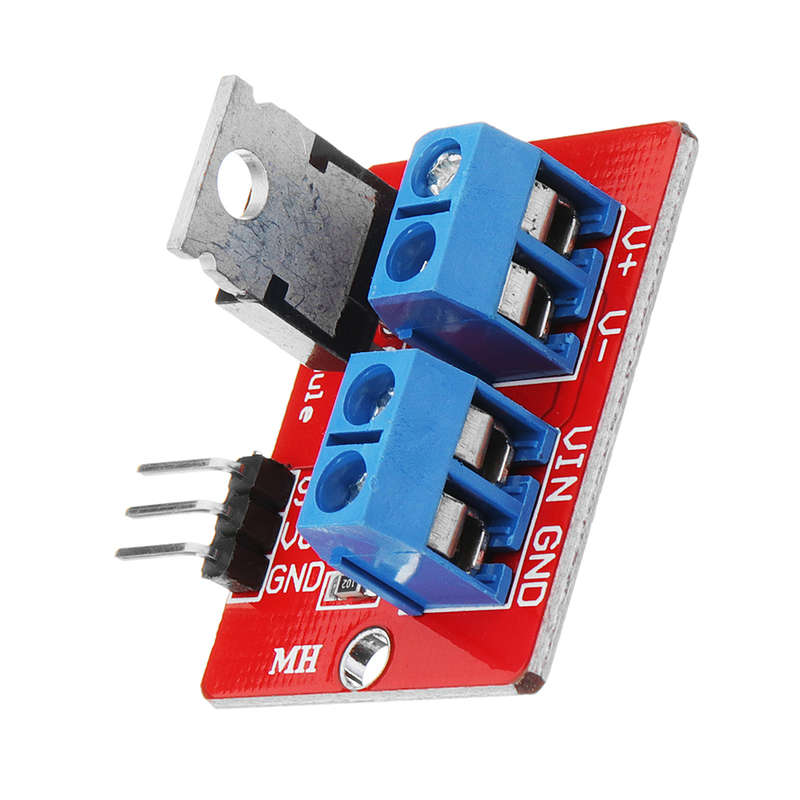

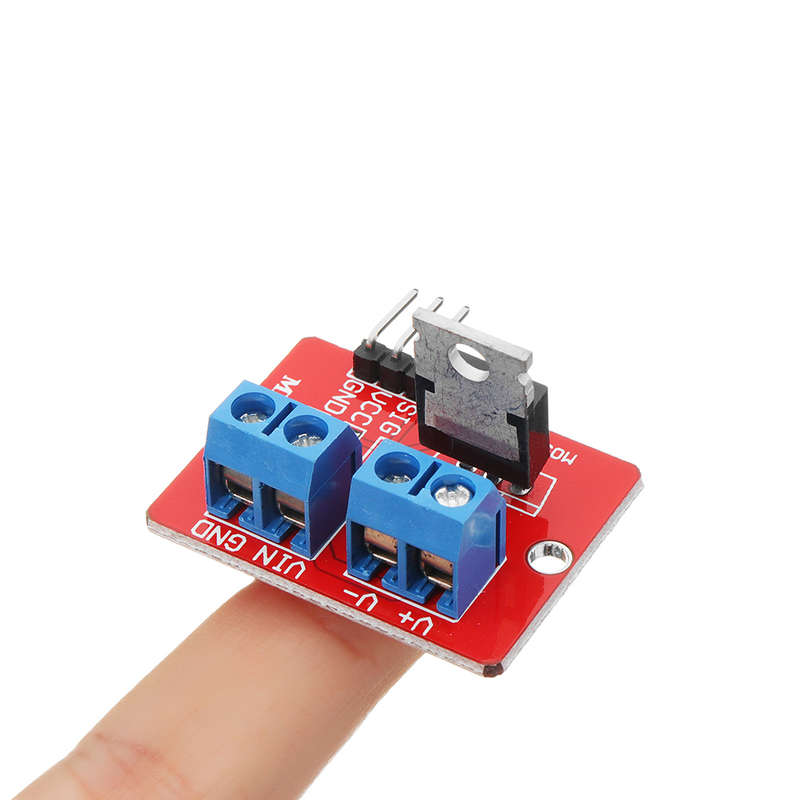

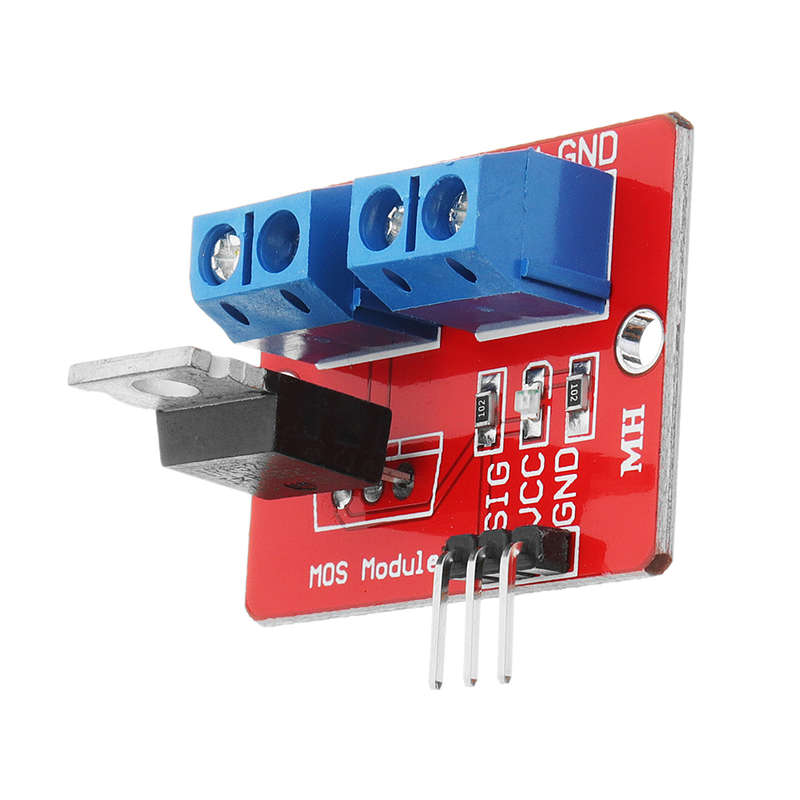

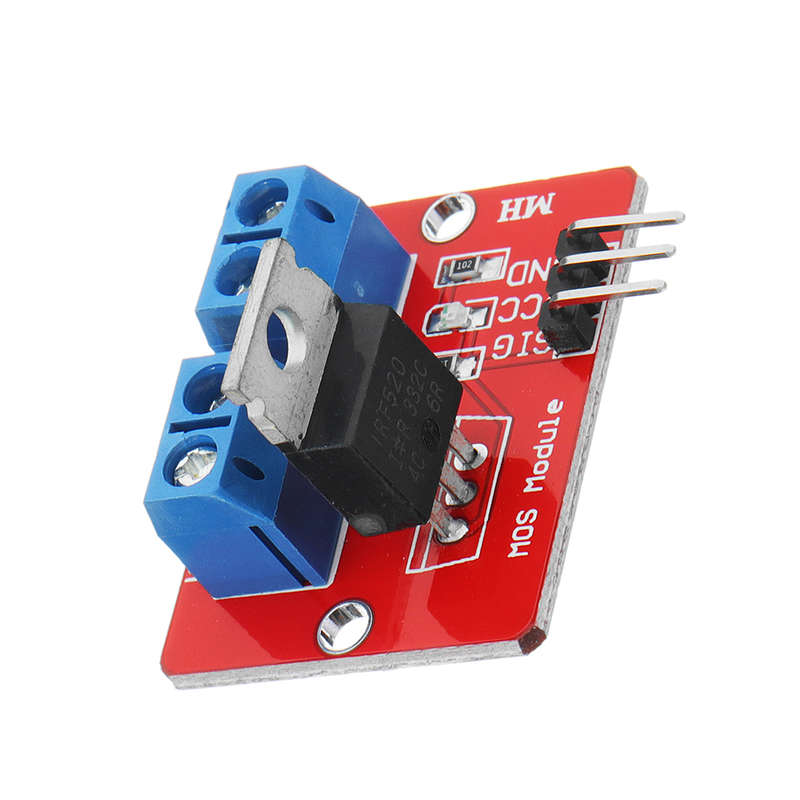

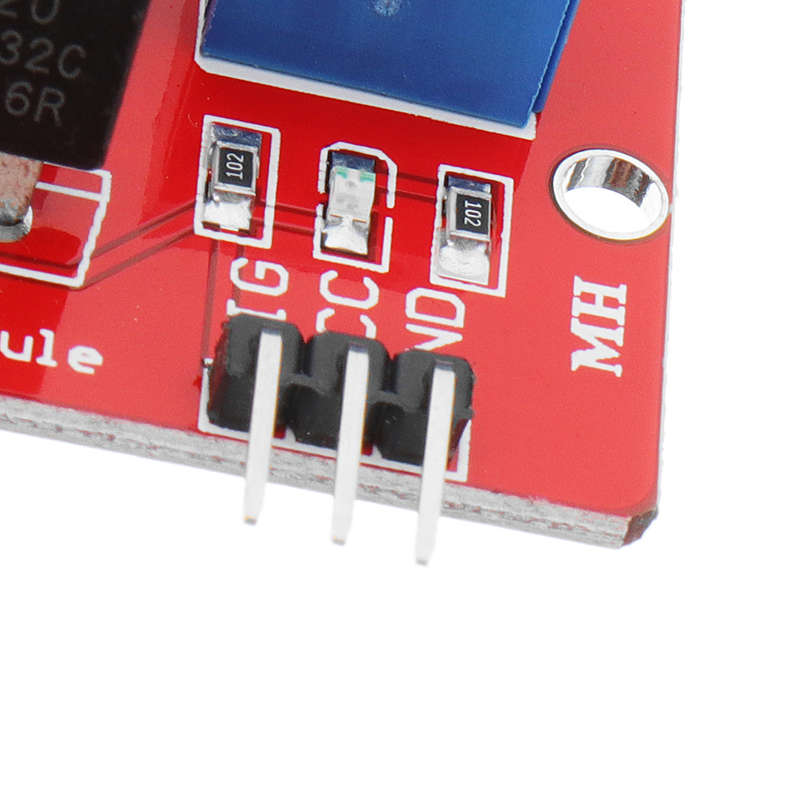

0-24V Top Mosfet Button IRF520 MOS Driver Control Module For MCU ARM Raspberry Pi

20 available / new

R335.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3645

92.95 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

645849759

Features:

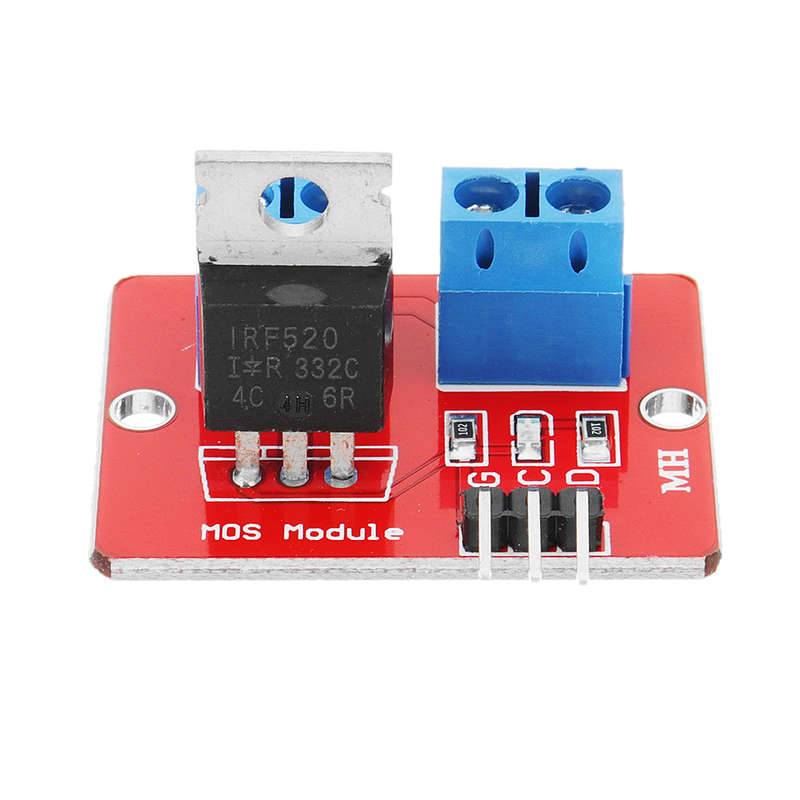

1. Using original IRF520 power MOS tube, can adjust PWM output
2. Can let the drive up to 24v load, such as LED lights belt, DC motor, micro pump, solenoid valve
3. By PWM adjustable can realize stepless dimming LED, motor stepless speed regulation

Specifications:

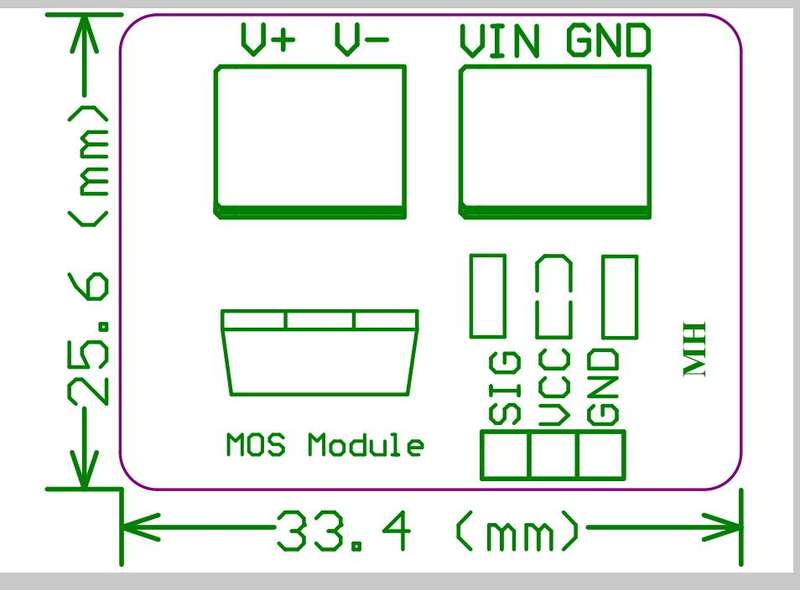

Size: 33.4 * 25.6MM
Voltage: 3.3V, 5V
Port: the digital quantity level
The output load voltage: 0 to 24V
The output load current: < 5A (more than 1A need to add heat sink)
Platform: the , MCU, ARM, Raspberry Pi

Instructions:

PWM signal for high level effectively
When the PWM for high level (3.3 V to 3.3 V) :
As the power supply voltage, between V + and V - working indicator, work load
When the PWM is low level (0 V to 0.5 V) :
V + and V - between 0, work lights out, don't work load

Package Included:

1x IRF520 Module
