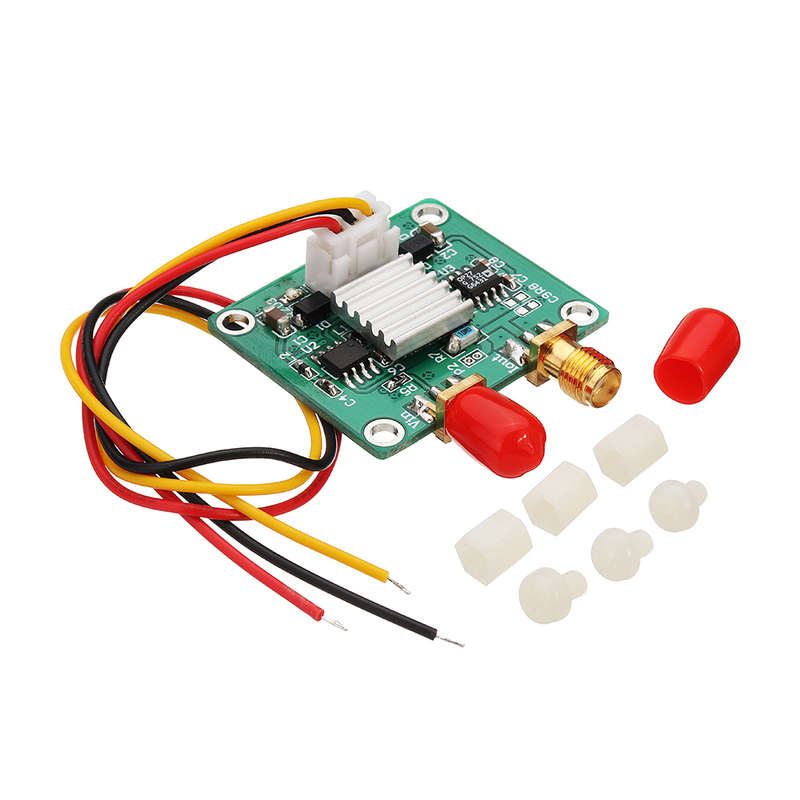

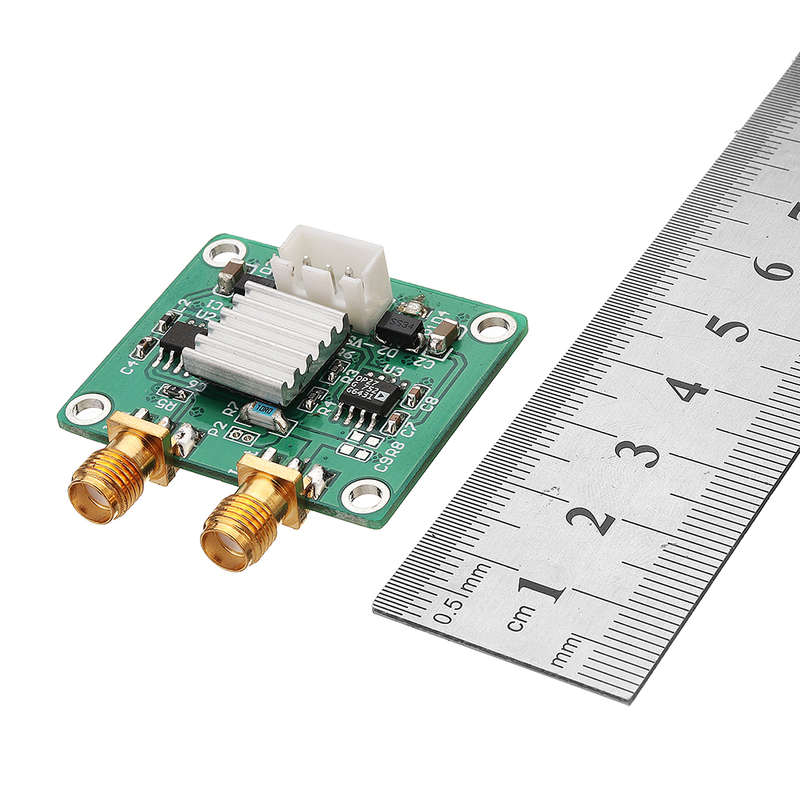

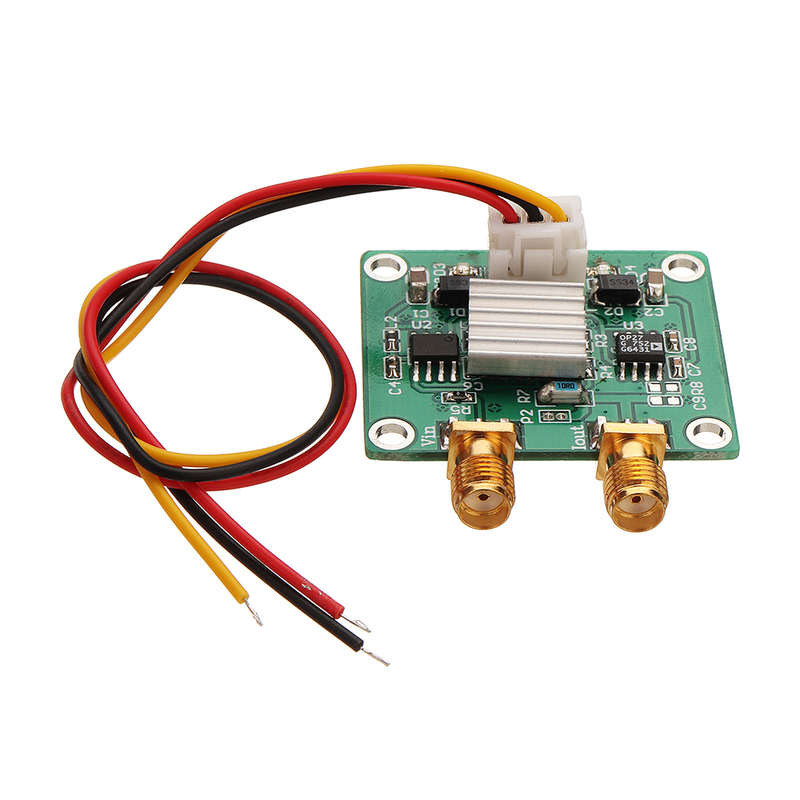

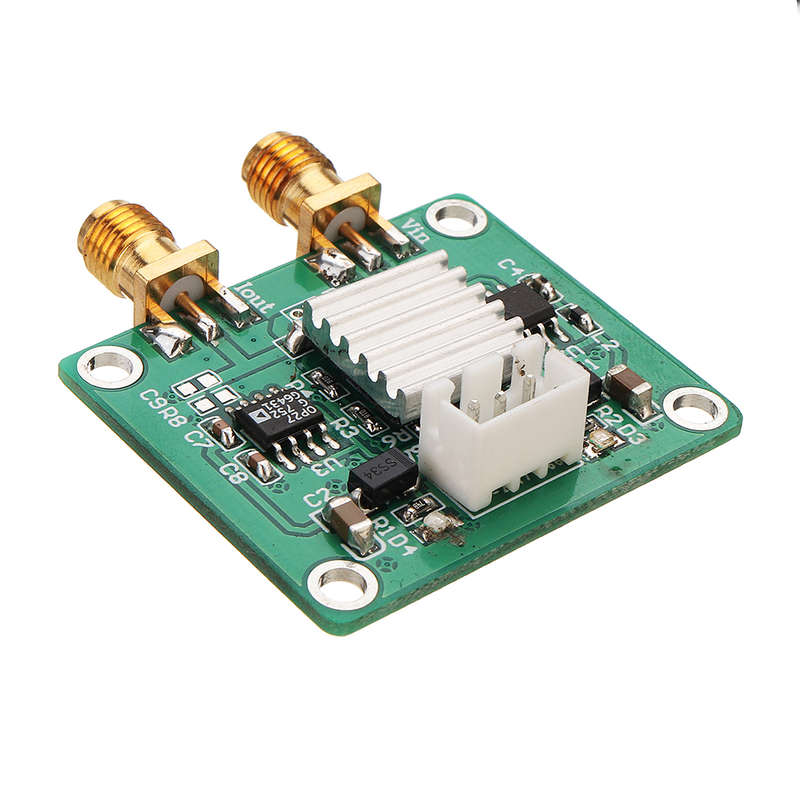

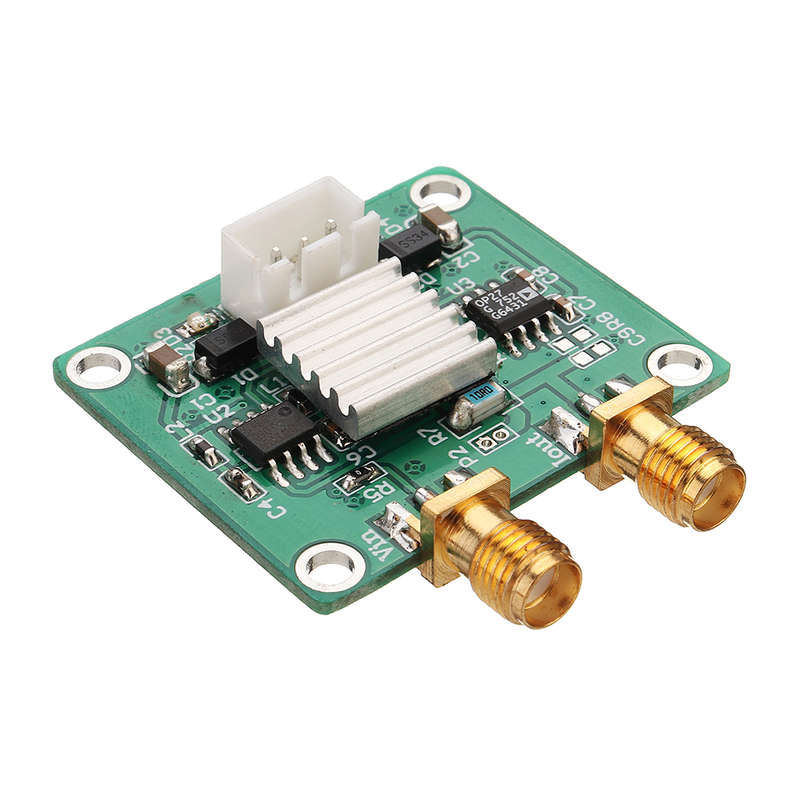

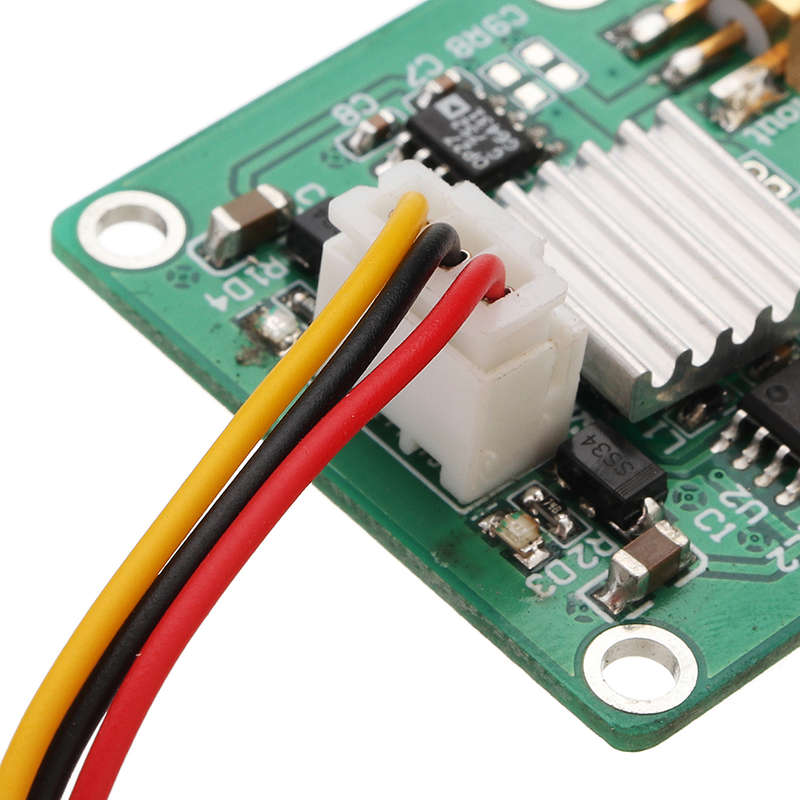

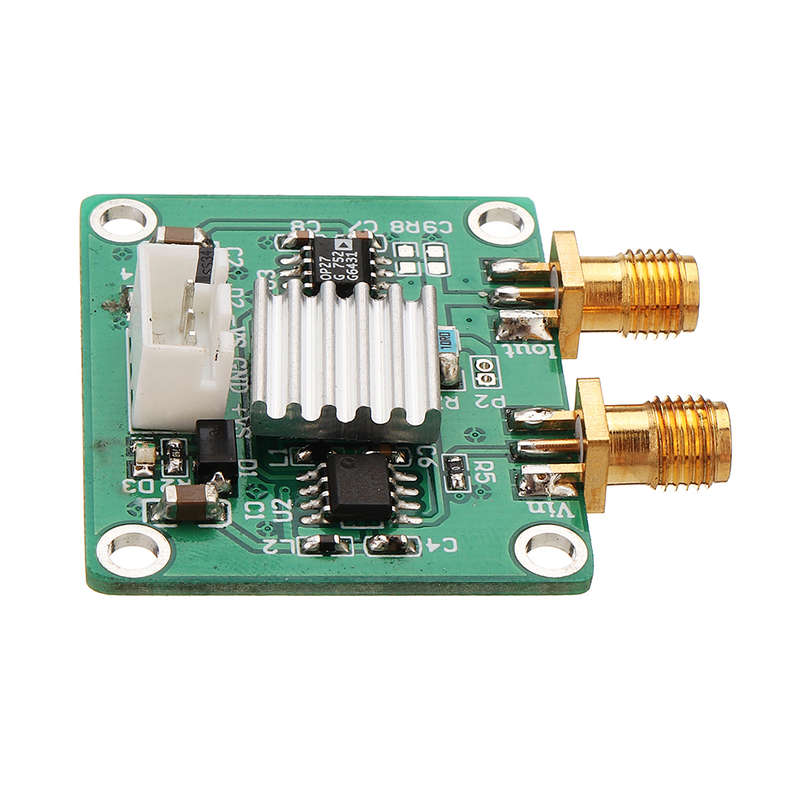

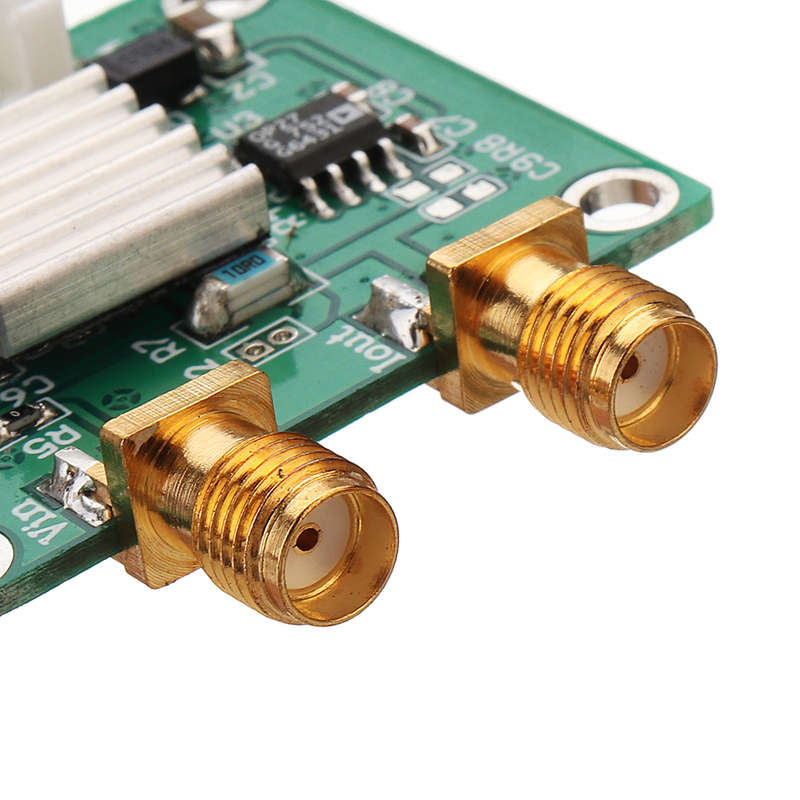

0.5A Voltage Controlled Current Source Constant Module AC and DC Voltage Current Power Converter

Feature: 1. Power supply ±5V~±15V anti-reverse protection, magnetic bead and tantalum capacitor power supply filter can effectively filter high frequency interference. (The higher the power supply, the larger the output voltage can be) 2. Output current and input voltage relationship: Iout=Vin/R(A) R defaults to 3.3R, using 0.1% high precision low temperature drift sampling resistor 3. For better power utilization, the recommended input voltage is 1.2Vrms. 4. The power supply is preferably better than the load of 4V or more to avoid nonlinear distortion saturation. 5. Applicable working frequency range: DC-200KHZ Package includes: 1 x AC and DC Voltage Current Converter
