Product details
Condition
New
Location
International
Bob Shop ID
641097431
More document click to download: Specificatoins: Working voltage: 3.3V Resolution: 128*32 Driver chip: SSD1306 Viewing angle: >160ᆪ Communication method: IIC/3-wire SPA/4-wire SPI and so on Brightness/contrast: can be controlled by program instructions Pin:
number
pin
1
C2P
2
C2N
3
C1P
4
C1N
5
VBAT
6
VBREF
7
VSS
8
VDD
9
RES
10
SCL
11
SDA
12
IREF
13
VCOMH
14
VCC

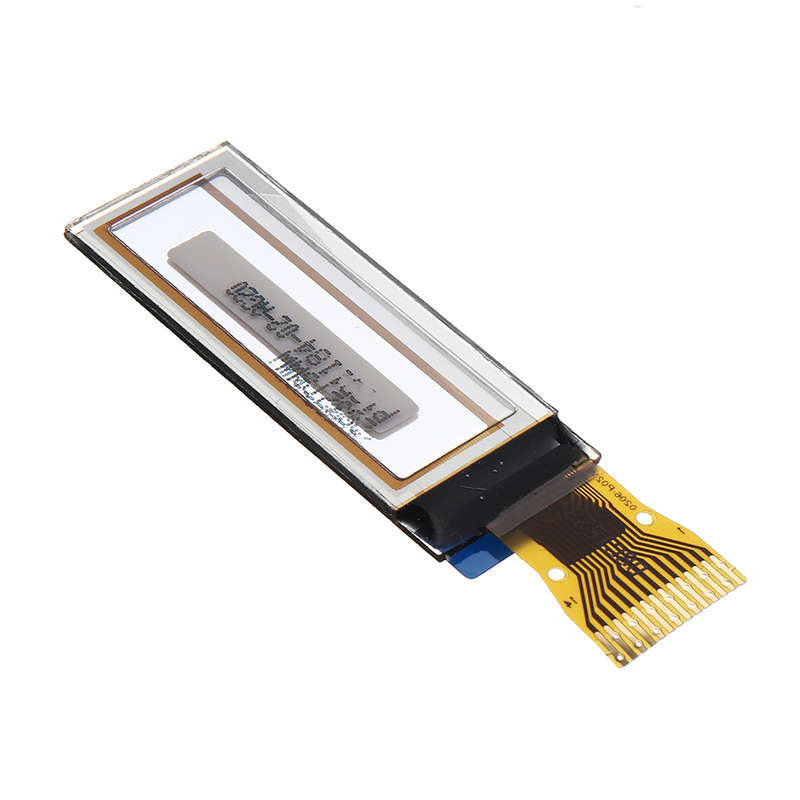

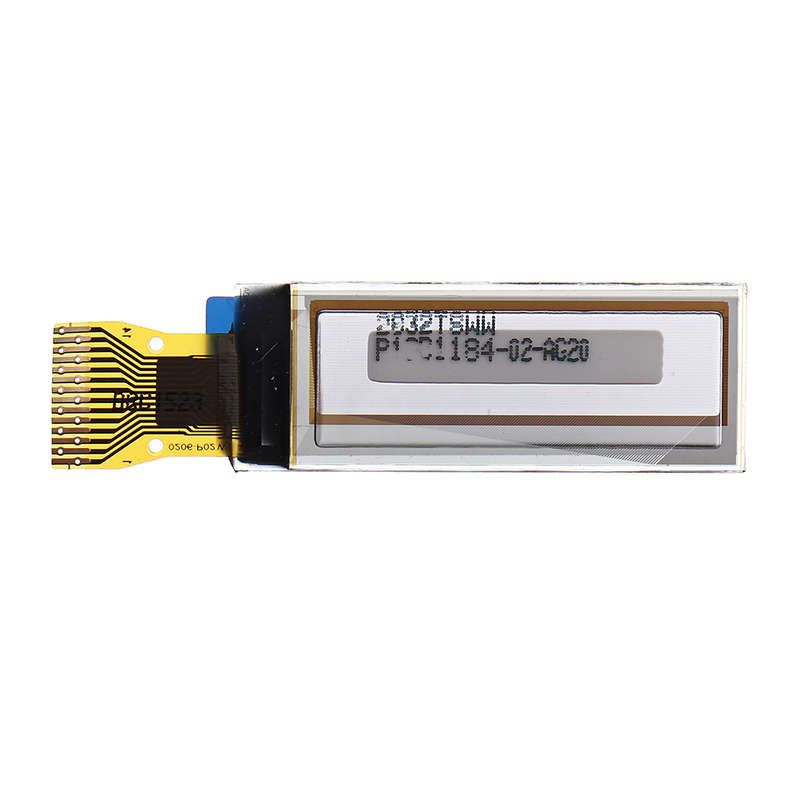

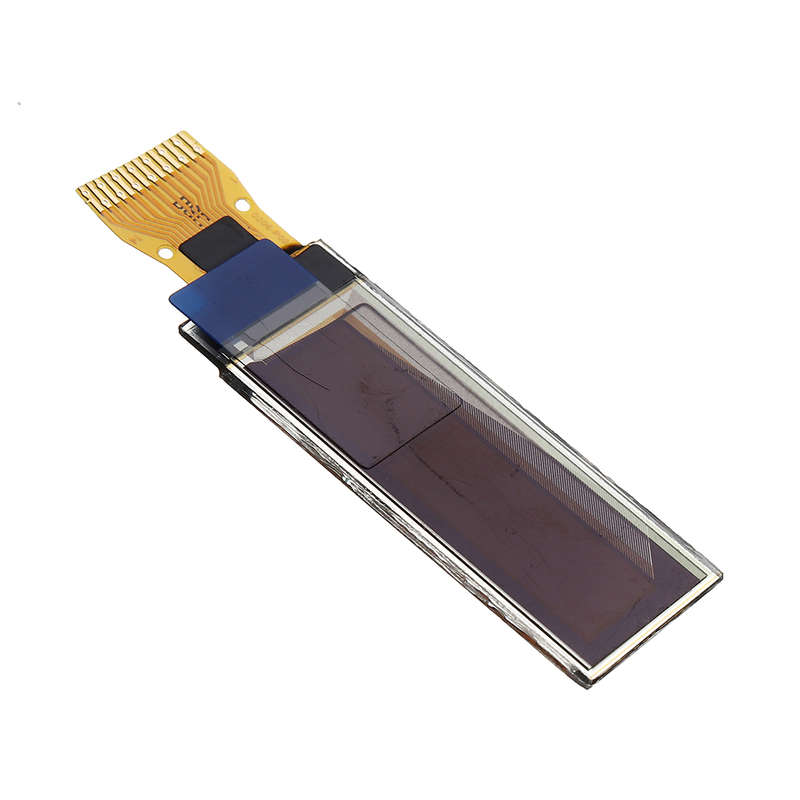

Package Included: 1 x 0.91 Inch White OLED Display Module 12832
