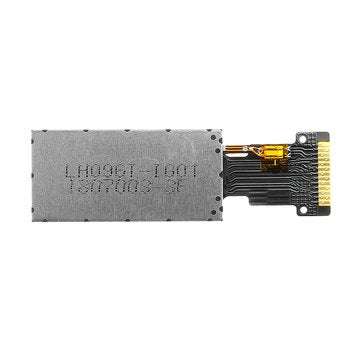

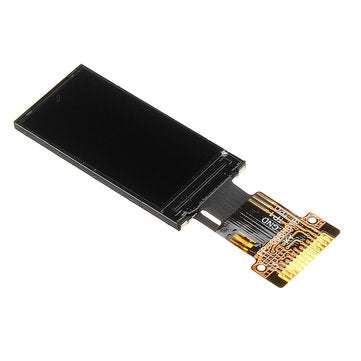

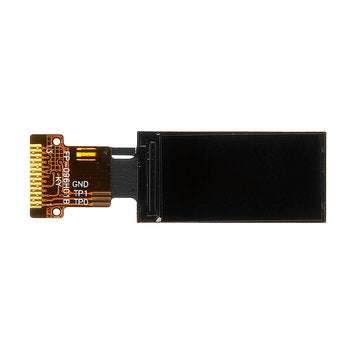

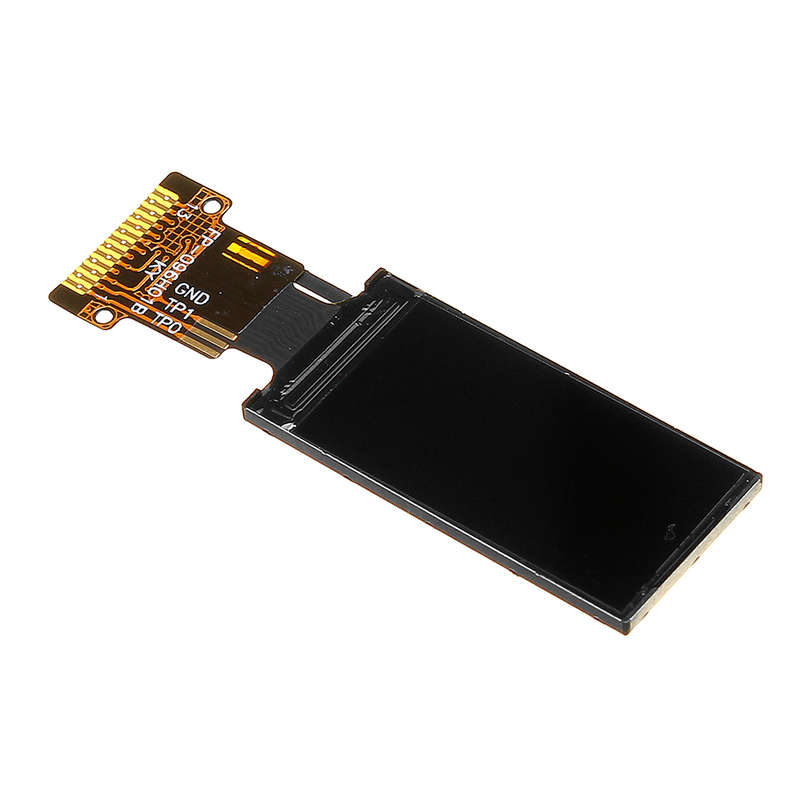

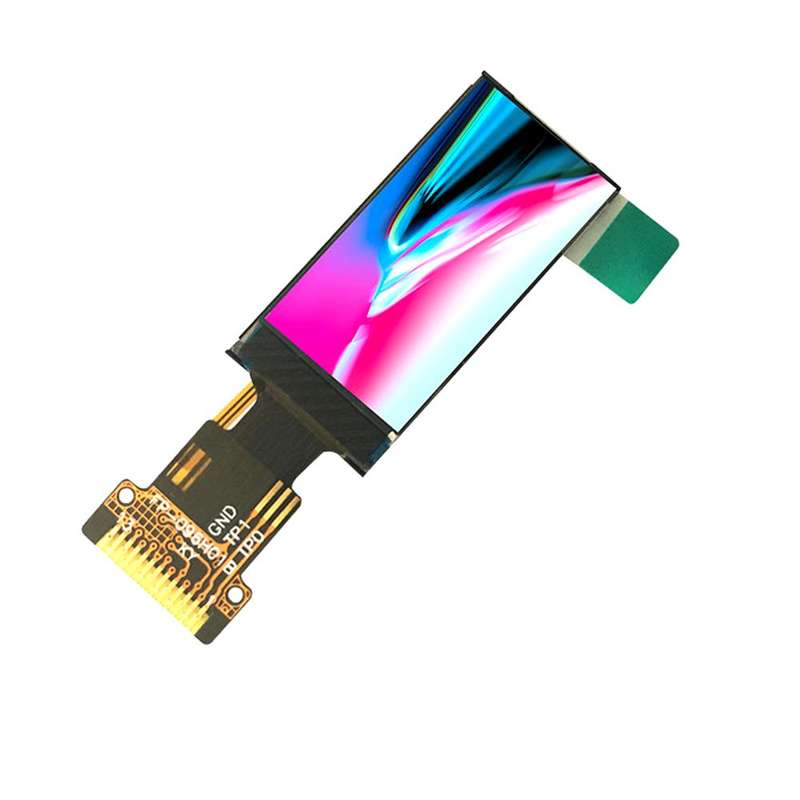

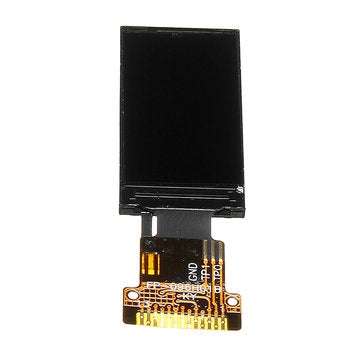

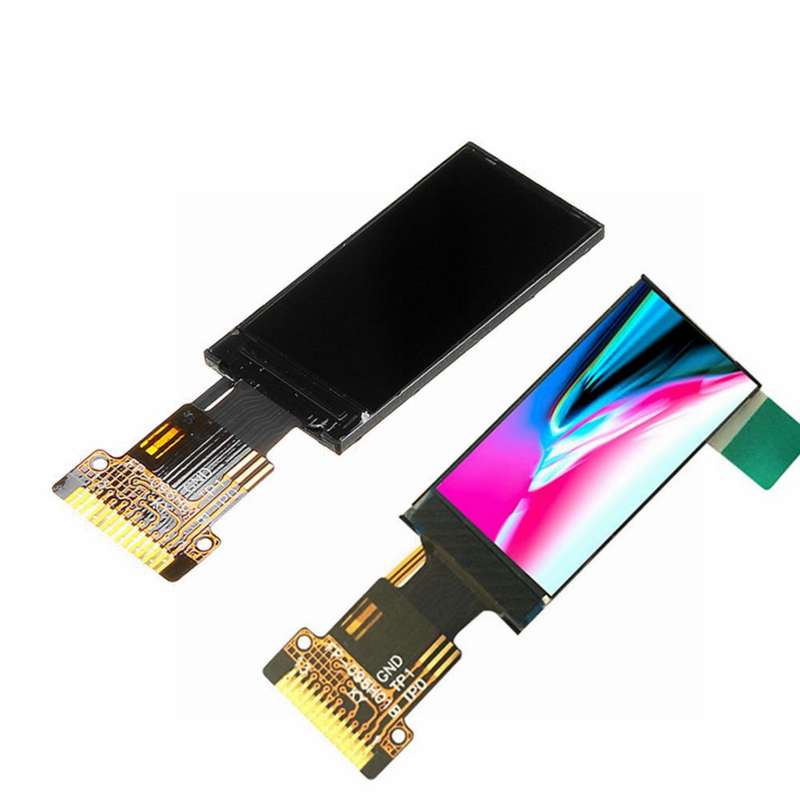

0.96 Inch HD RGB IPS LCD Display Screen SPI 65K Full Color TFT ST7735 Drive IC Direction Adjustable

20 available / new

R421.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643353417

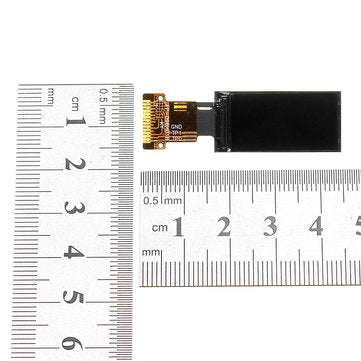

Parameter: 1. LCD Size: 0.96 inches 2. Dot Matrix Size: 80*160 (Display direction can be adjusted, horizontal screen and vertical screen are ok) 3. LCD Color: 65K Full Color 4. Hardware Interface: SPI interface 5. Driver IC: ST7735 6. Operating Temperature: -20a to 70a 7. Working Power Supply: 3.3V 8. PIN NO: 13Pin 9. Display Area: 10.8x 21.696mm 10. Size: 13.3*27.95mm 11 Viewing Direction: Full viewing angle (IPS) Interface Definition:

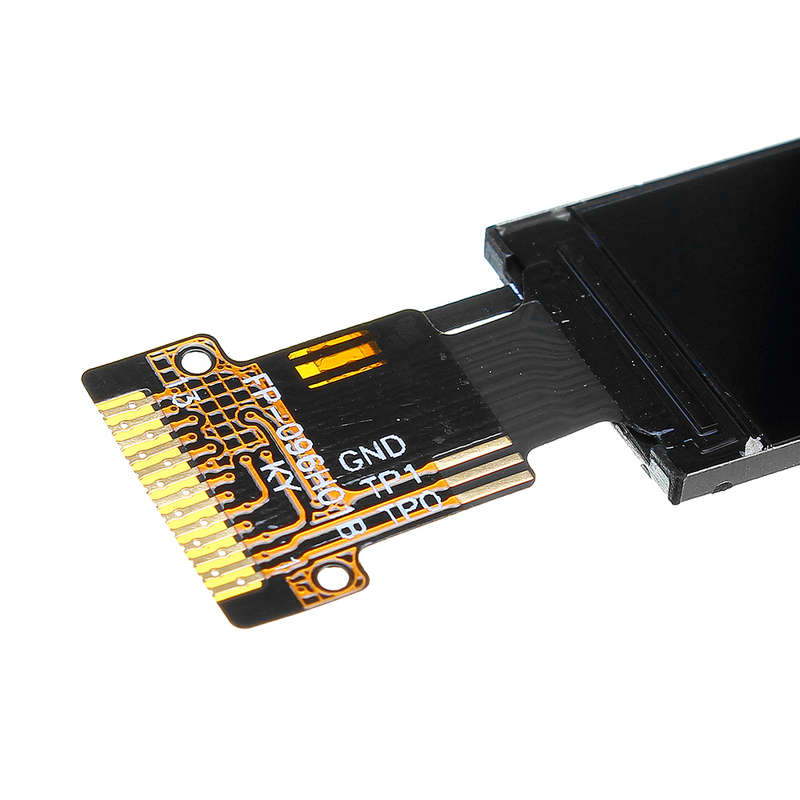

1: TPO 2: TP1 3: SDA 4: SCL 5: RS 6: RES 7: CS 8: GND 9: NC 10: VCC 11: LEDK 12: LEDA 13: GND Package Included: 1 x 0.96 Inch HD RGB IPS LCD Display Screen
