Specifications: Operating Voltage: 3.3V / 5V

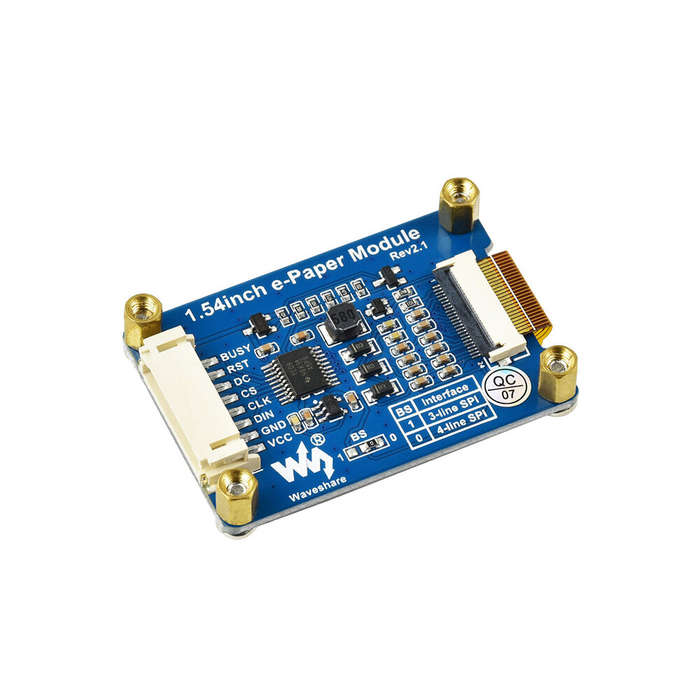

Interface: 3-wire SPI, 4-wire SPI
Overall Dimensions: 48 × 33mm
Display Area Dimensions: 27.6 × 27.6mm
Pixel Pitch: 0.138 × 0.138mm
Resolution: 200 × 200 pixels
Display Colors: Red, Black, White
Grayscale Levels: 2
Full Refresh Time: 14 seconds
Refresh Power Consumption: 26.4mW (typ.)
Standby Current: <0.01µA (near 0)
Viewing Angle: >170°
Features: 1. Low Power Consumption: With an exceptionally low standby current of <0.01µA, this e-Paper display ensures energy efficiency, making it ideal for battery-powered devices or IoT applications.
2. High Display Resolution: The 200x200 pixel resolution offers sharp and clear visuals, suitable for detailed graphics, text, and symbols.
3. Wide Viewing Angle: With a viewing angle exceeding 17
