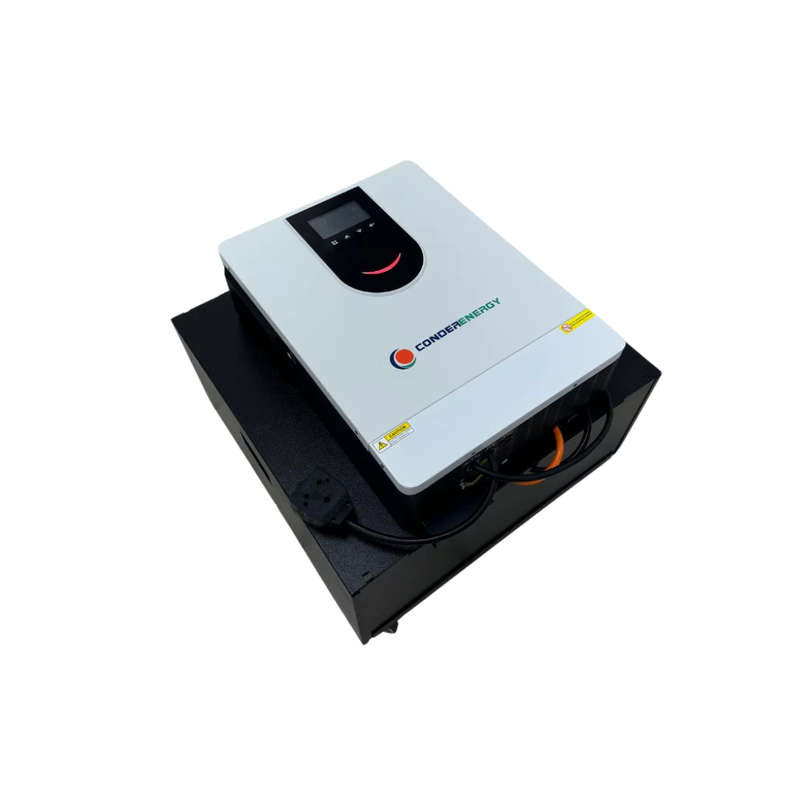

10.2KVA Conderenergy Plug And Play Portable Power System + 5.12kWh Ecco Lithium Battery MPPT 48V

Description:

The Conderenergy 10.2kVA Hybrid Inverter System is a comprehensive plug & play power backup solution, designed for homes and businesses seeking reliable energy during load shedding. This solar-ready system integrates a high-capacity 10200W hybrid inverter with a 5.12kWh lithium battery, offering instant switchover to backup power when outages occur.

Housed in a heavy-duty, portable trolley, this system is easy to maneuver with lockable wheels and secure handles, ensuring convenient mobility for versatile power needs. With pure sine wave output, intelligent battery management, and solar expandability, the Conderenergy system provides a stable and efficient energy solution.

Key Features:

• 10.2kVA Hybrid Inverter Delivers 10200W total output for essential and high-demand loads.
• Plug & Play System Fully assembled for hassle-free setup and immediate use.
• Solar-Ready Design Connect solar panels for off-grid energy independence.
• Heavy-Duty Portable Trolley Built with a reinforced steel frame and lockable wheels for easy movement.
• Pure Sine Wave Output Ensures smooth power delivery for sensitive electronics.
• Automatic UPS Mode Instantly switches to battery power when grid supply fails.
• Smart Battery Charging Maximizes battery lifespan and efficiency.
• LCD Display Allows configuration of voltage settings, charging priorities, and system monitoring.
• Advanced Safety Features Built-in overload, short circuit, and overheating protection.

Battery Backup Performance:

• 100W Load (e.g., TV, WiFi, lights) Operates for 45-50 hours at 100% Depth of Discharge (DOD).
• Solar Expansion Available Connect solar panels for extended backup during outages.

Technical Specifications:

Inverter Specifications:

• Model: Conderenergy 10.2kVA Hybrid Inverter
• MPPT Rating: 100A
• PV Input Voltage Range: 90V 450V DC
• Max PV Array Open Circuit Voltage: 500V DC
• Nominal AC Output Voltage: 220/230/240V
• Grid Voltage Range: 195-253V
• Grid Frequency Range: 49-51Hz ±1Hz
• Nominal Output Current: 15.7A
• Power Factor Range: >0.99
• Conversion Efficiency: 97%
• Operating Frequency: 50/60Hz
• Load Output Power:
  • Main Load: 10200W
  • Secondary Load: 3400W

Battery Specifications:

• Model: 51.2V 106Ah Lithium Battery
• Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Energy: 5.12kWh
• Nominal Voltage: 51.2V
• Capacity: 106Ah
• Installation: Wall-Mounted Option Available
• Efficiency (Round Trip): >97%
• Self Discharge: <3% per month
• Cycle Life (@90% DOD): >6000 Cycles
• Max Parallel Units: 16
• Charge Temperature: -5°C to 65°C
• Discharge Temperature: -20°C to 70°C
• Storage Temperature: 0°C to 30°C
• Max Continuous Charge/Discharge Current: 100A
• Peak Discharge Current: 150A (100ms)
• Built-in BMS: Yes
• Communication Options: CAN/RS485, Optional Bluetooth App & LCD Display

System Inclusions:

• Portable Steel Trolley Lockable wheels for secure placement
• Surge Plug with 1m power cable
• Double-Sided Female Plug Socket
• Fuse + Disconnector for battery safety
• 10.2kVA Hybrid Inverter
• 5.12kWh Lithium Battery
• Expandable Storage Supports an additional battery for extended runtime

Dimensions & Weight:

• System Size: 60cm x 60cm x 45cm
• Battery Weight: 45.6kg
• Total System Weight: Approx. 60kg

Warranty & Compliance:

• Inverter Warranty: 1 Years
• Battery Warranty: 5 Years
• Certifications: UN38.3, CE-EMC, IEC62619, CEI-021

Installation Requirements:

To validate the warranty, installation must be carried out by a qualified electrician or wireman with a valid Department of Labour registration. A Certificate of Compliance (COC) must be issued after installation, in line with SANS 10142 standards.
