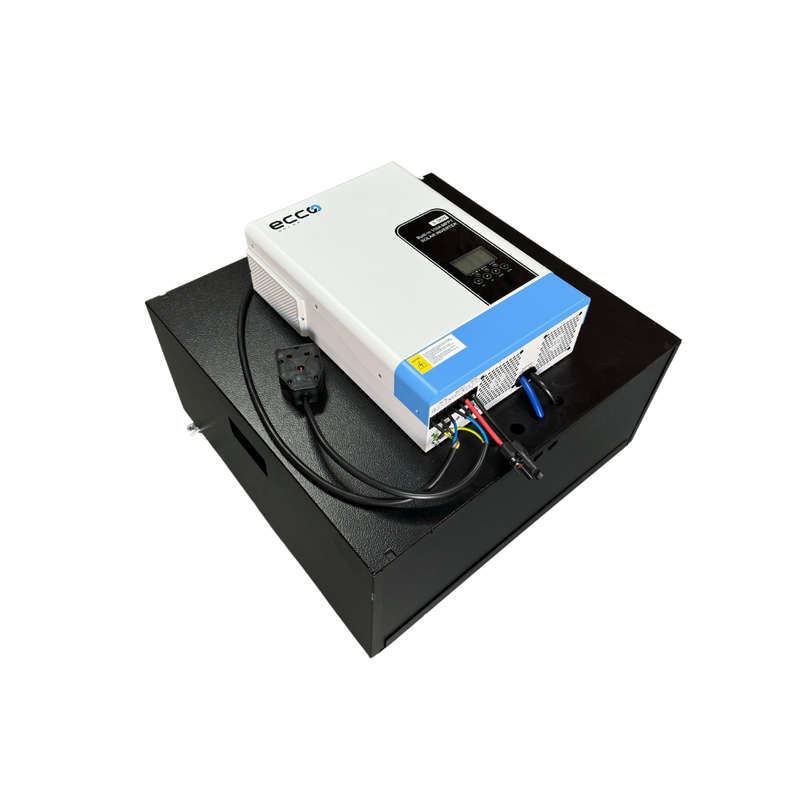

11KVA / 11000W 48V ECCO Hybrid Inverter Plug & Play System + 5.12kWh ECCO Lithium Battery (SOLAR READY)
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 500w which is usually a TV, WIFI, Lights, etc. This portable system will last 16-20 Hours With a 100% DOD.
Combo Includes:
- 1x 11KVA Ecco Hybrid Inverter
- 1x 5.12kWh Ecco Lithium Battery
- Portable Box with 2x lock wheels
- 160A Battery fuse + disconnector
- Surge plug on power point (ac in)
- Double Female Plug (output power / ac out)
Inverter Specifications (HIN11000S)
Type: 11KVA / 11000W Ecco MPPT Hybrid Inverter (Pure Sine Wave)

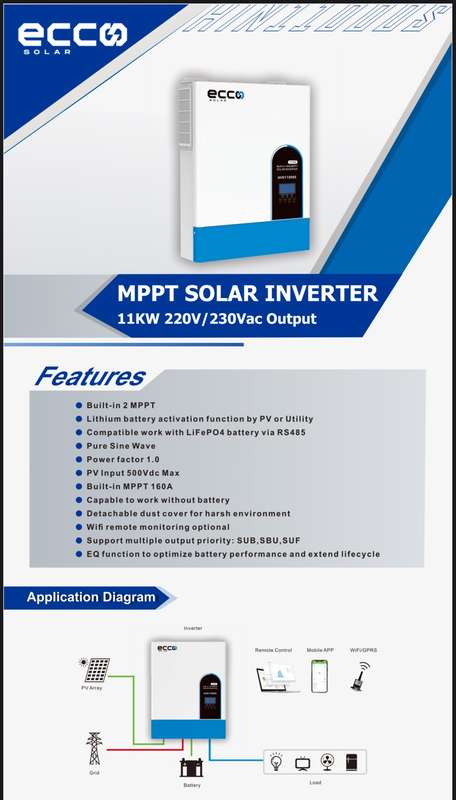

Key Features:
- Built-in 2 MPPT
- Lithium battery activation via PV or Utility
- Compatible with LiFePO4 battery via RS485
- Power factor: 1.0
- Max PV Input: 500Vdc
- Built-in MPPT 160A
- Can operate without a battery
- Detachable dust cover for harsh environments
- WiFi remote monitoring (optional)
- Supports multiple output priority modes: SUB, SBU, SUF
- EQ function optimizes battery performance and extends lifespan

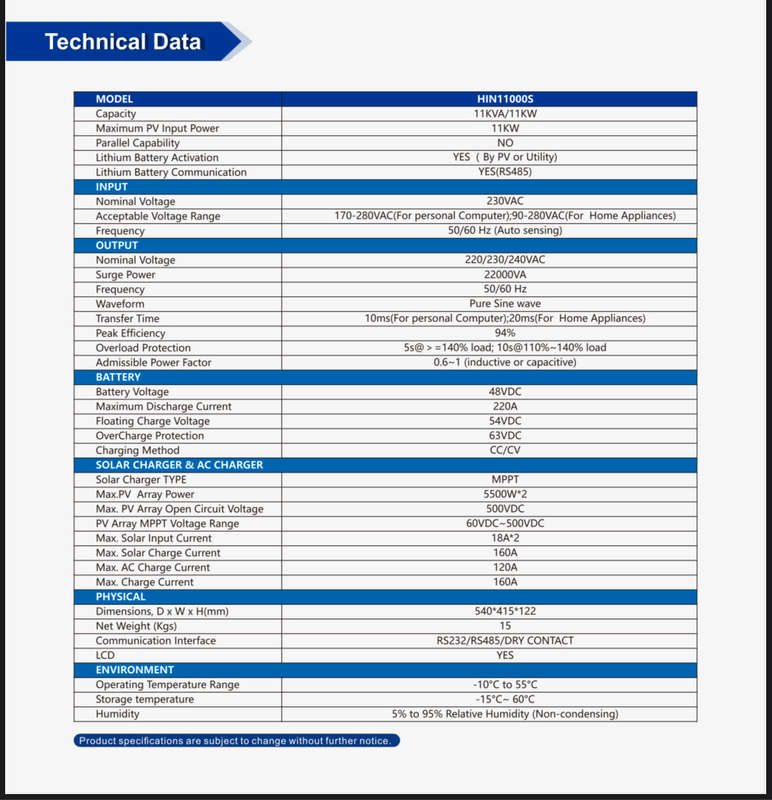

Technical Specifications:
- Capacity: 11KVA / 11KW
- Max PV Input Power: 11KW
- Parallel Capability: No
- Lithium Battery Activation: Yes (via PV or Utility)
- Lithium Battery Communication: Yes (RS485)
Input:
- Nominal Voltage: 230VAC
- Acceptable Voltage Range:
- 170-280VAC (for personal computers)
- 90-280VAC (for home appliances)
- Frequency: 50/60 Hz (Auto Sensing)
Output:
- Nominal Voltage: 220/230/240VAC
- Surge Power: 2200VA
- Frequency: 50/60 Hz
- Waveform: Pure Sine Wave
- Transfer Time:
- 10ms (for computers)
- 20ms (for home appliances)
- Peak Efficiency: 94%
- Overload Protection: 5s @ 140% Load
Battery:
- Voltage: 48V
- Max Discharge Current: 220A
- Floating Charge Voltage: 54VDC
- Overcharge Protection: 63VDC
- Charging Method: CC/CV
Solar & AC Charging:
- Solar Charger Type: MPPT
- Max PV Array Power: 5500W × 2
- Max PV Open Circuit Voltage: 500VDC
- MPPT Voltage Range: 60VDC - 500VDC
- Max Solar Input Current: 18A × 2
- Max Solar Charge Current: 160A
- Max AC Charge Current: 120A
- Max Charge Current: 160A
Physical & Communication:
- Dimensions (mm): 540 × 415 × 122
- Net Weight: 15kg
- Communication Interface: RS232 / RS485 / Dry Contact
- Display: LCD
Lithium Battery (Ecco 51.2V 100Ah 5.12kWh W51100 Wall-Mounted)
Key Features:
-Wall-mounted design easy to install and aesthetically pleasing
-Lithium Iron Phosphate (LiFePO4) cells safe, long life cycle
-Max 1C charge/discharge rate
-User-friendly interface
-Compatible with multiple inverter brands
-Supports up to 16 parallel groups
-Compliant with North American UL & EU TUV standards
Advantages:
- Longer Cycle Life: Up to 20× longer cycle life and 5× longer float/calendar life than lead-acid batteries
- Lighter Weight: ~40% of the weight of comparable lead-acid batteries
- Higher Power: 2× the power of lead-acid batteries while maintaining high energy capacity
- Wider Temperature Range: -20°C to 60°C
- Superior Safety: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits
What's in the Box?
- Battery
- Battery Cables & Mounts
Battery Parameters:
- Battery Type: Set to "USE"
- Bulk Charge Voltage: 56.4-56.6V
- Float Charge Voltage: 54V
- Cut-off Voltage: 47V
Technical Specifications:
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Total Power: 5.12kWh
- Best Operating Voltage Range: 43V - 54.5V
- Short Circuit Protection: Yes
- Power-on Reverse Connection Protection: Optional
- Max Charging Voltage: 57.6V
- Best Charging Voltage: 56.4V (Recommended)
- Max Continuous Output Power: 5500W
- Max Momentary Output Power: 7500W
- Local Parameter Configuration: Supported
- Max Installation Dimensions (mm): 480 × 170 × 500
- Package Size (mm): 590 × 290 × 615
- Weight: 49kg
- IP Class: IP54
- Communication: RS485, RS232, CAN
- Design Life: 15 years
Warranties & Installation Requirements
- 5-Year Warranty
- Installation
