6.2KVA ECCO Hybrid Inverter and Battery 48V ECCO 5.12 KWH Lithium Battery Plus 6 X 460W PANEL

6.2KVA ECCO Hybrid Inverter and Battery 48V ECCO 5.12 KWH Lithium Battery Plus 6 X 460W PANEL

New 7 available
Indicative market price: R28,000.00
R25,900.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
10886290
Bob Shop ID
645957908

6.2KVA ECCO Hybrid Inverter and Battery 48V ECCO 5.12 KWH Lithium Battery Plus 6 X 460W PANEL



6.2 Kva 6200w Hybrid Inverter 48v Mppt 120A Inverter Pure Sine Wave - Ecco

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle

What's in the box
1 x Inverter
1 x User Manual


Lithium Battery Ecco 51.2v 100ah 5.12kWh W51100 Wall-Mounted

Battery Parameters:

Battery Type is set to "USE."
Bulk Charge Voltage is set to 56.4-56.6V.
Float Charge Voltage is set to 54V.
Cut Off Voltage is set to 47V.

Specifications:

Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Operating Voltage Range (V) 43-54.5
Short Circuit Protection yes
Power-on Reverse Connection Protection optional
Maximum Charging Voltage (V) 57.6
Best Charging Voltage (V) 56.4 (recommended)
Maximum Continuous Output Power (W) 5500
Maximum Momentary Output Power (W) 7500
Local Parameter Configuration support
Max Installation Dimension (mm) 480*170*500
Package Size (mm) 590*290*615
Weight (kg) 49
IP Class IP 54
Communication RS485, RS232, CAN
Design Life 15 years

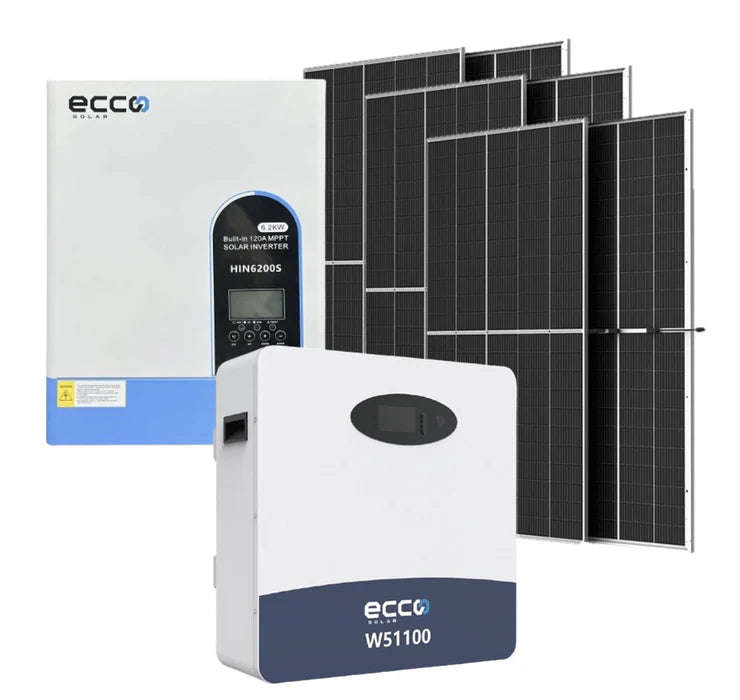

Combo Includes:

1x ECCO Lithium Ion Battery 51.2V 100AH 5.1KWH Wall Mounted ( 5 Years Warranty)
1x Hybrid Inverter Ecco 6.2KVA 6200W Watt MPPT(5 Years Warranty)
6x 460W PANEL
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
