Conderenergy 10.2KVA / 10200W Hybrid Solar Inverter + 5.12kWh Ecco Lithium Battery | MPPT 48V, Pu...

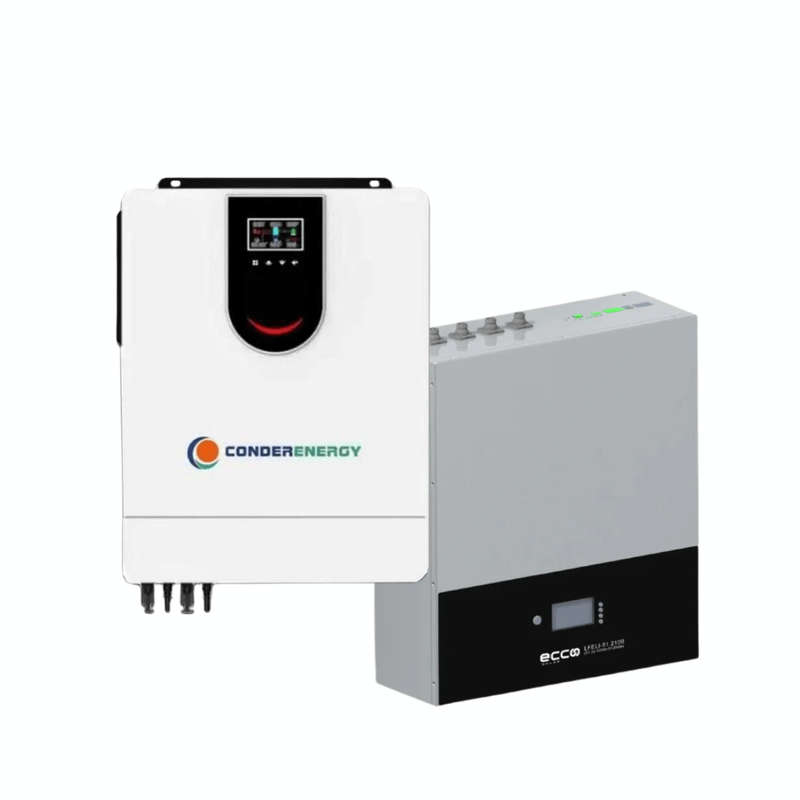

ConderEnergy 10.2KVA / 10200W Hybrid Solar Inverter + 5.12kWh Ecco Lithium Battery | MPPT 48V, Pure Sine Wave, On/Off-Grid

Description:

The ConderEnergy 10.2KVA Hybrid On/Off-Grid Inverter with MPPT 48V combines inverter, solar charging, and battery charging functions to ensure an uninterrupted power supply. Designed for residential and commercial applications, this high-efficiency system provides reliable backup power with smart energy management. Paired with the 5.12kWh Ecco Lithium Battery, it delivers long-lasting performance, enhanced safety, and optimized energy storage for a sustainable power solution.

Key Features:

• Hybrid On/Off-Grid Functionality Works with grid power, solar panels, or a generator.
• Pure Sine Wave Output Ensures stable electricity for sensitive appliances.
• Smart MPPT Solar Charging Maximizes solar energy conversion with up to 500V DC PV input.
• Configurable AC/Solar Priority Customizable settings for efficient power management.
• Advanced Safety Protections Overload, over-temperature, and short-circuit protection.
• Cold Start Capability Allows operation without grid power.
• User-Friendly LCD Display Provides easy access to system settings and monitoring.
• High Efficiency Achieves up to 97% DC/AC conversion efficiency for minimal energy loss.

Technical Specifications:

PV Input:

• Maximum PV Array Open Circuit Voltage: 500V DC
• MPPT Voltage Range: 90V - 450V DC

Grid/AC Output:

• Nominal Output Voltage: 220/230/240V AC
• Feed-in Grid Voltage Range: 195V - 253V AC
• Output Power: 10,200W (Main Load), 3,400W (Secondary Load)
• Frequency: 50/60Hz
• Power Factor: >0.99

Battery Specifications:

• Battery Type: Lithium-Ion Phosphate (LiFePO4)
• Capacity: 51.2V 100Ah (5.12kWh)
• Cycle Life: 20x longer than lead-acid batteries
• Weight: 40% lighter than lead-acid alternatives
• Safety: Explosion-proof, overcharge, and short circuit protection
• Operating Temperature: -20°C to 60°C

What's Included?

• 1x 10.2KVA ConderEnergy Hybrid Solar Inverter
• 1x 5.12kWh ECCO Lithium Battery (Wall Mounted)
• User Manual

Note: Wi-Fi dongle not included.

Warranty: 5-Year Manufacturer's Warranty
