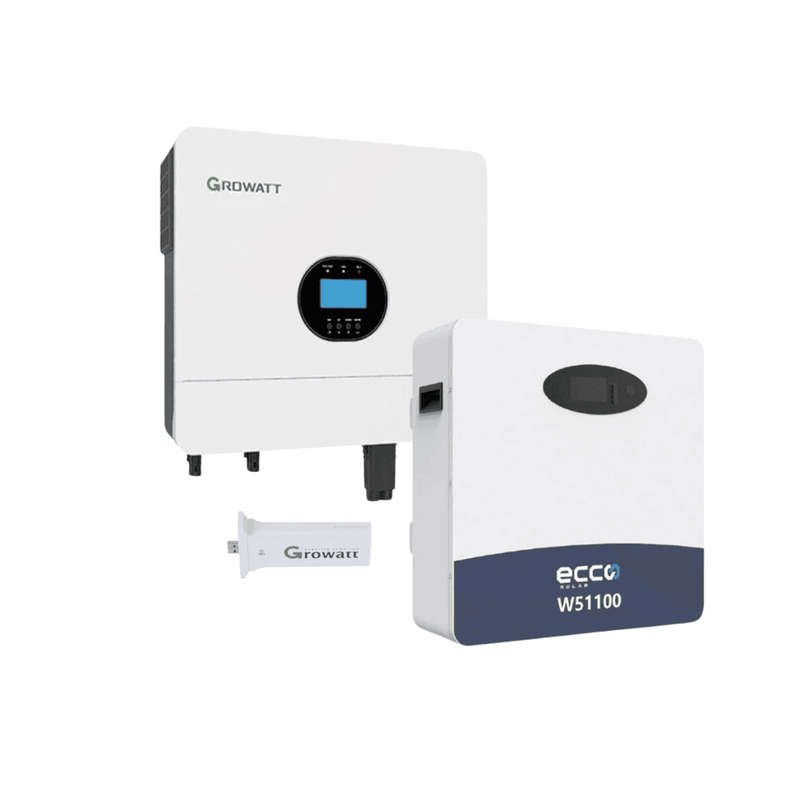

6KVA / 6000W MPPT 100A Growatt Hybrid Inverter + 5.12kWh Ecco Lithium Ion Battery Kit

6KVA / 6000W MPPT 100A Growatt Hybrid Inverter + 5.12kWh Ecco Lithium Ion Battery Kit

Description:

Advanced Power Solution for Off-Grid & Backup Systems

The Growatt SPF6000ES Plus 6kW Off-Grid Inverter is designed for industrial, commercial, and large-scale backup power solutions. This high-performance inverter integrates a 100A MPPT solar charge controller, a pure sine wave inverter, and an automatic UPS function, ensuring reliable energy management for off-grid and hybrid systems.

Key Features:

• 6kW Pure Sine Wave Power Stable, efficient performance for sensitive equipment.
• Generator & Grid Compatible Seamless integration with multiple power sources.
• Parallel Scalability Expand up to 6 units for larger energy systems.
• WiFi Remote Monitoring (Included) Track performance in real-time via smartphone or web.
• Dual AC Inputs with Transfer Switch Supports both utility and generator input.
• Durable & Safe Built-in dust-proof kit, RS485/CAN communication for BMS.
• Peak Power Handling 12kVA surge capacity for heavy loads.

Technical Specifications:

• Battery Voltage: 48VDC (Supports Lithium & Lead-Acid)
• Rated Power: 6000VA/6000W | Surge Power: 12000VA
• MPPT Solar Input: 120VDC 450VDC | Max PV Power: 8000W
• AC Charger: 80A, Input Voltage: 230VAC
• Transfer Time: 10ms (Typical), 20ms (Max)

Battery Description:

The ECCO 5.12kWh 51.2V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is a reliable and long-lasting energy storage solution designed for solar, backup power, and off-grid applications. Engineered for high performance and safety, this wall-mounted battery is compact, easy to install, and compatible with multiple inverter brands.

Key Features:

• Efficient Energy Storage: 5.12kWh capacity with 100Ah nominal rating for stable and reliable power.
• Space-Saving Wall-Mount Design: Compact form factor for a clean, efficient installation.
• Advanced LiFePO4 Battery Technology:
  • Ensures longer cycle life with up to 20x the lifespan of lead-acid batteries.
  • Safer chemistry reduces the risk of combustion or explosion.
• High Power Output:
  • Maximum Continuous Output Power: 5,500W
  • Peak Output Power: 7,500W
• Scalability & Compatibility:
  • Supports up to 16 parallel connections for expandable storage capacity.
  • Compatible with multiple inverter brands for seamless integration.
• Durability & Safety:
  • IP54-rated enclosure for protection against dust and water splashes.
  • Built-in short circuit protection, overcharge/discharge safeguards, and thermal management.
• Optimized Charging & Discharging:
  • Bulk Charge Voltage: 56.4-56.6V
  • Float Charge Voltage: 54V
  • Cut-Off Voltage: 47V
  • Maximum Charging Voltage: 57.6V

Technical Specifications:

• 5.12kWh Ecco Lithium Battery 51.2V 100AH (W51100) Wall-Mount
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Best Operating Voltage Range: 43V 54.5V
• Maximum Continuous Discharge Current: 100A
• Enclosure Protection: IP54
• Communication Protocols: RS485, RS232, CAN
• Design Life: 15 years
• Dimensions (Max Installation): 480mm x 170mm x 500mm
• Package Dimensions: 590mm x 290mm x 615mm
• Weight: 49kg

What's in the Box?

• 1 x ECCO 5.12kWh 51.2V 100Ah Lithium Iron Phosphate Battery
• 1 x Battery Cables
• 1 x User Manual

Warranty & Installation Requirements:

Backed by a  5-Year Warranty on battery and 2-year warranty on inverter.

Installation must be performed by a certified electrician following SANS 10142 compliance. A valid Certificate of Compliance (COC) is required for warranty claims.
