Product details

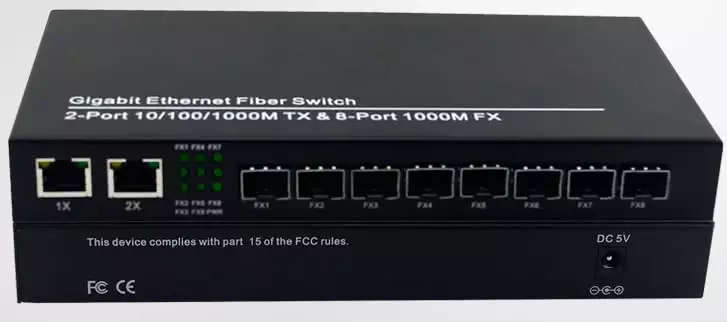

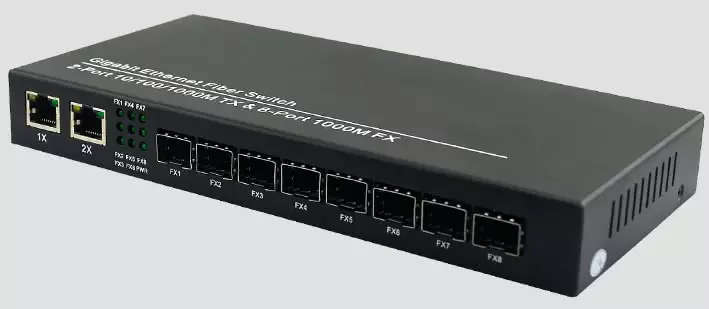

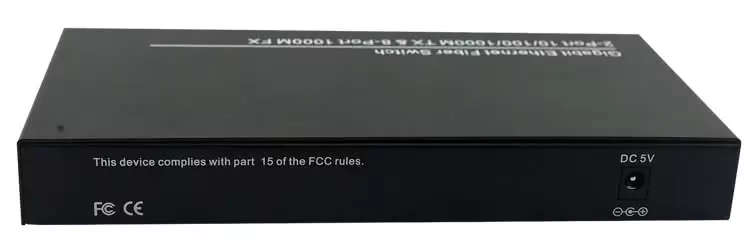

10 Port SFP Gigabit Fiber Media Converter with 8xSFP 1.25Gbps Ports & 2 x Gigabit RJ45 Network Ports
Description
- SFP Media Converter with 8*1000M SFP optical port + 2 adaptive Gigabit Ethernet ports which can be connected to 10Mbps, 100Mbps or 1000Mbps Ethernet Switches
- Automatically adapt to full-duplex or half-duplex mode, can achieve up to 2000 Mbps per port bidirectional transmission rate, 8 Gigabit SFP transceiver module ports to achieve long-distance fiber optic network transmission.
- MAC address self-learning function, to ensure data error-free transmission. Store and forward exchange mode, to prevent the spread of damaged packets in the network.
- Flow control function, can prevent a large number of instantaneous data on the impact of the network, support Auto-MDI / MDIX automatic flip function.
- High-capacity, high-bandwidth, all ports across the switch without blocking data throughput, support for long frame transmission; for Internet cafes, hotels, intelligent community, small and medium enterprises, high-definition network, video surveillance and and security provides a low cost, reliable solution.
Features
- Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, 802.3X, 802.3z
- Fluid Control: Full-duplex: IEEE 802.3x or Half-duplex
- Auto MDI/MDIX
- Store-and-forward
- Rj45 is self-adaption 10/100/1000M port
- Support MAC address automatic study function
- Can work with ANY SFP Type : single bidi fiber SFP / double fiber / single mode / multimode SFP
SFP Modules used with this Media Converter
/20km-single-mode-dual-lc-1-25gbit-1310nm-gigabit-sfp-transceiver-module-cisco-huawei-dell-compatible/
/550m-multi-mode-sfp-module-dual-lc-interface-gigabit-sfp-minigbic-cisco-huawei-dell-compatible/
/rj45-sfp-gigabit-ethernet-transceiver-module-1000tx-mini-gbic/
/20km-single-mode-bidi-sfp-transceiver-module-set-cisco-huawei-dell-compatible-1000basebx-bi-directional/
Technical parameters
| 1000M SFP | 8 |
| 1000M RJ45 | 2 |
| Exchange Mechanism | Store-and-forward |
| Bandwidth | 20G |
| MAC | 4k |
| Environmental | Working Temperature: -20~55 Storage temperature: -40~75 |
| Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing | |
| Power input | DC 5V 2A, Power Adapter Supplied with Product |
| Standards Protocols | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3x |
| Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbps half-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
| Network Media | 10Base-T: Cat.3 and above UTP/STP(100m) 100Base-TX: Cat.5 and above UTP/STP(100m) 1000Base-T: Cat.5 and above UTP/STP(100m) 1000Base-SX:62.5m/50m MMF(2m~550m) 1000Base-LX:62.5m/50m MM(2m~550m) or 10m SMF(2m~5000m) |
| LED Indicator | Lit when TP connection is established SFP: Lit when the SFP port is connection and SFP Module Active,or when transmitting PWR: Lit when power supply is connected |
| Product specifications | Product Size: 225mm*105mm*32mm(L*W*H) package Size: 300mm*175mm*100mm(L*W*H) Weight:1kg |
