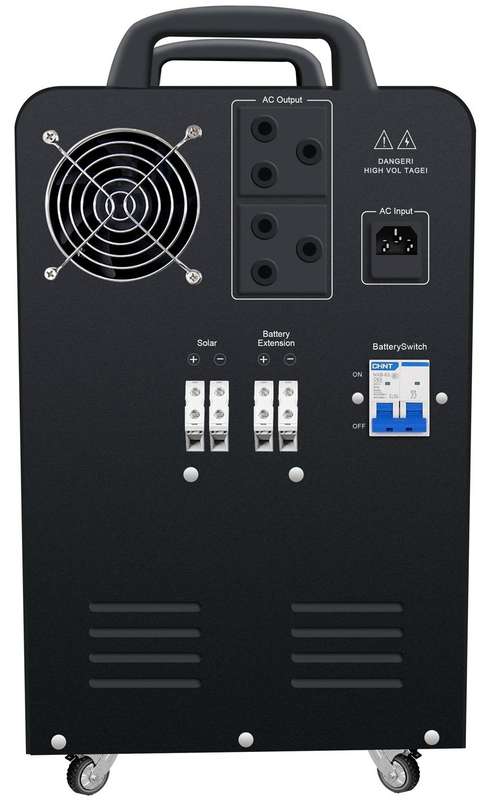

1000W INVERTER WITH 12V100AH BAT- SP1000W Integrated photovoltaic power point energy storage system. Intelligent charge and discharge management system function,
Effectively protect the battery charge and discharge.
Colourful and bright display, visually display the working status of
The machine
Output overload, overvoltage, over temperature, short circuit
intelligent protection: Output pure sine wave, strong load capacity
Built-in solar charge controller, high charging efficiency
Adjustable switching mode, DC, AC, solar priority mode.
Solar Power Inverter Combined PV controller & Battery Model: SP0312-55P SP0512-55P SP1012-100P SP1524-100M SP2024-200M Inverter
Battery Voltage: 12V 24V In-built battery specification: 55AH 55AH 100AH/12V 100AH/12V*2 200AH/12V*2 Rated power :300W 500W 1000W 1500W 2000W Output Voltage: 110VAC/220VAC Output Frequency: 50/60Hz Output Waveform :Pure Sine Wave Charge by a means supply
Rated Voltage: 110VAC/220VAC—x means an optional function Charge Current: 6A 8A 12A 15A 20A Solar Input
Maximum Photovoltaic Voltage(VDC): =25V =145V Charge Voltage(VDC: 13.7V 27.4V Rated Charge Current(A): (PWM)5-10A (MPPT)30A (MPPT)60A Maximum Power(Wp): 360Wp 800Wp 1600Wp Voltage of overcharge Voltage(VDC): =25V =145V Voltage of overcharge recovery:(VDC) 14.0V 28.0V Voltage of floating charge(VDC): 13.7V 27.4V DC Output
Voltage of high-voltage protection(VDC): 16V 32V Voltage of high-voltage recovery(VDC): 15.2V 30.4V Voltage of low-voltage recovery(VDC): 13V 26V
Voltage of low-voltage protection(VDC): 11V 22V 5VDC USB Output Port5VDC USB: 2units/MAX 2A 12VDC Output Port12VDC: 2 DC Ports (MAX 2A) Starting Temperature of the exhaust fan:45 Ambient Temperature for operation:0-4 Ambient Temperature for storage:-25-55
Operation/Storage Conditions/: 0-90%(no condensation) External dimensions: D x W x H(mm) 423 x 260 x 453 x 430x380 x 534 x 555 x 515 x 540 Packing dimensions: D x W x H(mm) 520 x 370 x 520 x 545 x 480 x 620 x 640 x 600 x 695
