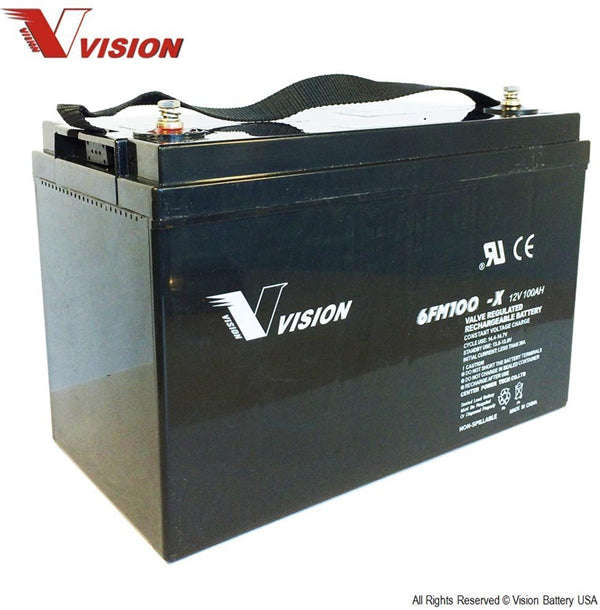

100AH 12V Deep Cycle AGM Battery (eXtra Heavy Duty 6FM100Z-X )

The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized. Should the
battery be accidentally overcharged producing hydrogen and oxygen, special oneway valves allow the gases to escape thus avoiding excessive pressure build-up.
Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak proof and usable in any position.

Features
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.

Not restricted for air transport-complies with IATA/ICAO Special Provision A67.

UL-recognized component.

Can be mounted in any orientation.

Computer designed lead, calcium tin alloy grid for high power density.

Long service life, float or cyclic applications.

Maintenance-free operation.

Low self discharge.

Battery Construction
Component
Raw material

Positive plate
Lead dioxide

Negative plate
Lead

Container
ABS

Cover
ABS

Safety valve
Rubber

Terminal
Copper

Separator
Fiberglass

Electrolyte
Sulfuric acid

Performance Characteristics
Nominal Voltage
12V

Number of cell
6

Design Life
12 years

Nominal Capacity 77oF(25oC)
10 hour rate (10.0A, 10.8V)
100Ah
5 hour rate (17.4A, 10.5V)
87.0Ah
3 hour rate (26.6A, 10.5V)
79.8Ah
1 hour rate (65.2A, 9.6V)
65.2Ah

Internal Resistance
Fully Charged battery 77oF(25oC)
?5.7mOhms

Self-Discharge
3% of capacity declined per month at 20oC(average)

Operating Temperature Range
Discharge
-20~60oC
Charge
-10~60oC
Storage
-20~60oC

Max. Discharge Current 77oF(25oC)
900A(5s)

Short Circuit Current
2100A

Charge Methods: Constant Voltage Charge 77oF(25oC)
Cycle use
2.40-2.45VPC
Maximum charging current
30A
Temperature compensation
-30mV/oC
Standby use
2.20-2.27VPC
Temperature compensation
-20mV/oC

What's in the box
1x 100Ah AGM Battery
