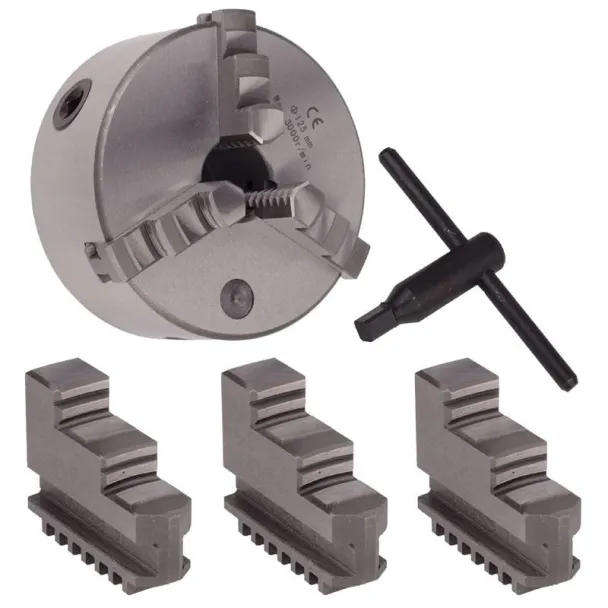

100mm 3-Jaw Self-Centering Chuck
This high-precision 3-jaw self-centering chuck is commonly fitted to engineering lathe machines. Designed for accuracy and efficiency, it includes reverse jaws and a chuck key for quick and easy adjustments. Ideal for securely holding cylindrical workpieces during machining.
Features
High precision engineering accessory
Self-centering 3-jaw design for balanced grip
Includes reverse jaws for versatile workholding
Comes with chuck key for fast adjustments
Suitable for engineering lathe machines
Specifications
Chuck Diameter (D): 100 mm
Registration Recess Diameter (D1): 72 mm
Bolt Circle Diameter (D2): 84 mm
Center Hold (D3): 22 mm
Registration Recess Depth (h): 3 mm
Max Height (H): 74.5 mm
Body Thickness (H1): 55 mm
Number of Bolts: 3
Size of Bolts: M8
Maximum RPM: 3,000
Handle Length: 160 mm
