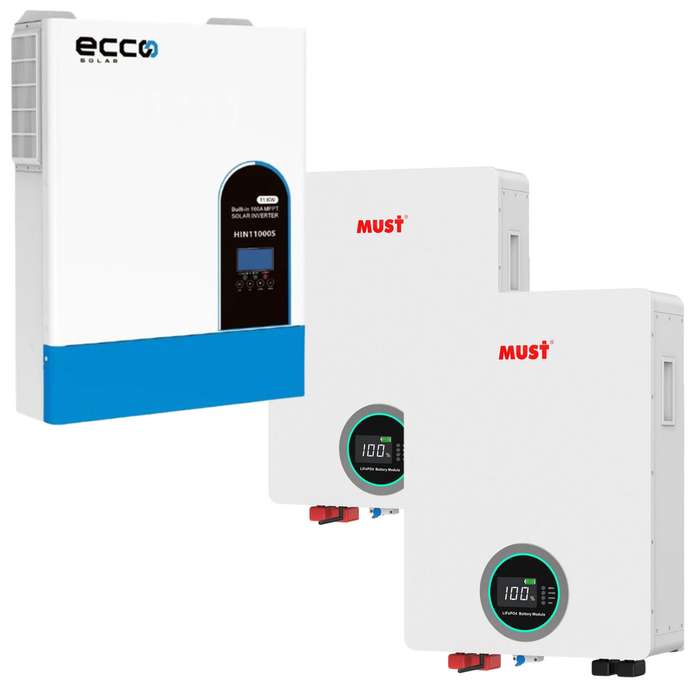

11KVA Ecco Solar Inverter and 2 X 5.12 KWH 100AH Must Lithium Ecco Solar Batteries combo

11KVA Ecco Solar Inverter and 2 X 5.12 KWH 100AH Must Lithium Ecco Solar Batteries combo

New 5 available
Indicative market price: R35,000.00
Only 5 left – grab it before it’s gone!
R30,000.00
14% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
11636902
Bob Shop ID
651711634

11 Kva 11000w Hybrid Inverter 48v MPPT 160A Inverter Pure Sine Wave - Ecco

Features

Built-in 2 MPPT
Lithium battery activation function by PV or Utility Compatible work with LiFePO4 battery via RS485
Pure Sine Wave
Power factor 1.0
PV Input 500Vdc Max
Built-in MPPT 160A
Capable to work without battery
Detachable dust cover for harsh environment
Wifi remote monitoring optional
Support multiple output priority: SUB,SBU, SUF
EQ function to optimize battery performance and extend lifecycle

Specifications:

MODEL : HIN11000S
Capacity : 11KVA/11KW
Maximum PV Input Power : 11KW
Parallel Capability : NO
Lithium Battery Activation : YES (BY PV  OR UTILITY)
Lithium Battery Communication : YES(RS485)

INPUT
Nominal Voltage : 230VAC
Acceptable Voltage Range : 170-280VAC(For Personal Computer) : 90-280VAC (For Home Appliances)
Frequency : 50/60 Hz (Auto Sensing)

OUTPUT
Nominal Voltage : 220/230/240VAC
Surge Power : 2200VA
Frequency : 50/60 Hz
Waveform : Pure Sine Wave
Transfer Time : 10ms(For Computers) 20ms(For Home Appliances)
Peak Efficiency : 94%
Overload Protection : 5s @ 140% Load

BATTERY
Battery Voltage : 48V
Maximum Discharge Current : 220A
Floating Charge Voltage : 54VDC
OverCharge Protection : 63VDC
Charging Method : CC/CV

SOLAR CHARGER & AC CHARGER
Solar Charger TYPE : MPPT
Max.PV Array Power : 5500W*2
Max. PV Array Open Circuit Voltage : 500VDC
PV Array MPPT Voltage Range : 60VDC-500VDC
Max. Solar Input Current : 18A*2
Max. Solar Charge Current : 160A
Max. AC Charge Current : 120A
Max. Charge Current : 160A

PHYSICAL
Dimensions, D x W x H(mm) 540 X 415X 122
Net Weight (Kgs) 15KG
Communication Interface RS232/RS485/DRY CONTACT
LCD



Specifications:

3-in-1: Wall-mounted, Stacked-mounted, Rack-mounted(optional)
Vertical-mounted only for LP16-48300 & LP16-48320
Large capacity, high power output
Safest lithium iron phosphate battery cell with high energy density
Modular design: supports up to 40 units in parallel
Support CAN & RS485 communication with mainstream inverters
Local monitoring via LCD monitor
Built-in WiFi Smart BMS Module

 Combo includes:

  • 2x 5.12kWh Lithium Battery Ecco 51.2v 100ah ME51100 Wall-Mounted (Wall Mount)(5 Years Warranty)
  • 1x Hybrid Inverter 48v 11 Kva 11000w MPPT 160A Inverter Pure Sine Wave - Ecco (5 Years Warranty)

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
