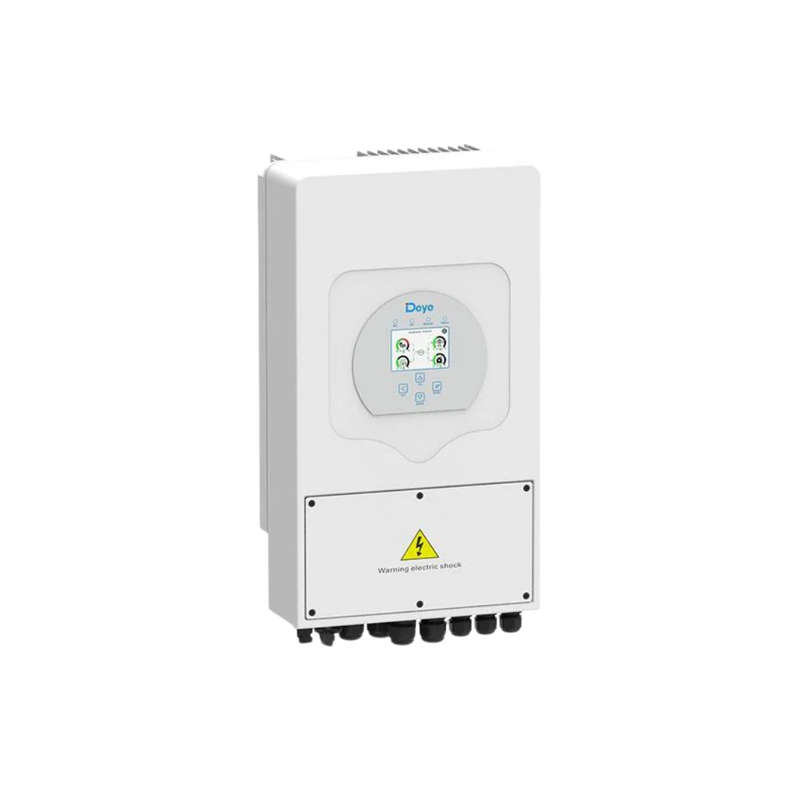

16kW Single Phase Hybrid Inverter 3 MPPT, 290A Charge, IP65
PLEASE NOTE THAT THIS IS ONLINE DEAL ONLY , AND CAN BE ARRANGED FOR IN STORE COLLECTION.
Description:
This advanced 16kW single-phase hybrid inverter delivers industry-leading performance for large residential and light commercial energy systems. Designed for seamless integration of solar, battery, and generator power, it offers high flexibility, robust build quality, and intelligent system control.
Key Features:
High-Efficiency Solar Performance
-Achieves up to 97.6% conversion efficiency with 99.9% MPPT tracking efficiency
-Supports up to 20.8kW of DC input with a 500V max voltage
-Three MPPT trackers with 2 strings each for optimized energy harvesting
-MPPT voltage operating range: 150425VDC with 370V rated input
-Maximum input current: 26A per tracker (Isc: 44A per tracker)
Robust Battery Integration
-Compatible with lithium-ion and lead-acid battery technologies
-Wide battery voltage range: 40VDC to 60VDC
-High charge/discharge current: 290A for rapid cycling
-Smart BMS compatibility with self-adaptive charging
-UPS output rated at 12,000W for critical backup loads
-Supports 3-stage/equalization charging and includes external temp sensor
Powerful AC Output
-Rated output: 16,000W single-phase (69.6A)
-100A continuous AC passthrough capability
-Peak power handling: 2x rated power for 5 seconds in off-grid mode
-50/60Hz output, voltage range: 220/230VAC (L/N/PE)
Scalable and Intelligent Operation
-Supports paralleling of up to 16 inverters
-Generator-ready for off-grid and hybrid installations
-Advanced communication via RS485 and CAN for BMS/inverter sync
-Intelligent cooling system operates below 30 dB
Durability and Safety
-Wall-mountable with IP65 protection for harsh conditions
-Operating temperature: -45°C to 60°C
-Certified to IEC/EN 61000 and IEC/EN 62109 safety and electromagnetic standards
Physical Specs
-Dimensions: 79.84 × 46.4 × 30 cm
-Weight: 48.5 kg
Warranty & Installation
This product includes a manufacturer-backed warranty.
Installation must be completed by a certified electrician or registered wireman with a valid Department of Labour license. A compliant Certificate of Compliance (COC) is required. The system must adhere to SANS 10142 and related electrical regulations.
Failure to comply with installation standards may void warranty claims.
