Description
Dewalt - 18V Brushless Hammer Drill & 2 Batteries - Yellow
The Dewalt DCD796 XR Brushless Compact Hammer Drill Driver has an ultra compact, lightweight design that makes it perfect for use in confined spaces. The two speed all metal transmission provides increased runtime and longer tool life with drill driver and hammer features for multiple applications. It offers a 15 position adjustable torque control for consistent screw driving into a variety of materials. Intelligent trigger design allows for total control of application and it has an improved ergonomic design with rubber grip over mould. Part of the intelligent XR Lithium Ion Series for efficiency and making applications faster.
Features:
- 18V XR Li-Ion compact hammer drill driver featuring NEW 5.0Ah XR Li-Ion battery technology
- Brushless Motor Technology for excellent efficiency
- Ultra compact, lightweight design allows use in confined spaces
- Two speed all metal transmission for increased runtime and longer tool life
- Drill Driver and Hammer feature for multiply applications
- 15 position adjustable torque control for consistent screw driving into a variety of materials
- Intelligent trigger design allows for total control of application
- Improved ergonomic design with rubber grip over mould improving users comfort
- Li-Ion battery packs allows for superior insertion and removal with state of charge indicator
- Steel belt hook and magnetic bit holder ensures strong storage solutions
- Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster
- Multi voltage charger for use with 18V, 14.4V and 10.8V XR Li-Ion battery packs.
Applications:
- Manufacture and Assembly, small Drill/Pilot holing and Screwdrive fixing
- Drilling into metal and PVC. Installing Consumer Units, Junction Boxes and Light Fittings
- Assembly of Timber & Metal Products. Drilling Pilot Holes, low/med volume Screwdriving
- Use in Metal & Wood Drill Bits, Flat Spade Bits & Screwdriving
- Assembly, Fitting and Hanging cabinets
- Fastening to Metal and Wood to secure small Drywall Screws
- Drilling Pilot Holes with a variety of Drill Sizes (Pre Fabricated Furniture/Flat Packs)
- Hanging Boilers, Piping and Light Wall Fixing
- Installation of Wood/PVC Window Frames
Specifications:
- Dimensions: 43.5 x 35.5 x 12cm
- Weight: 4.73kg
- Colour: Yellow & black
- Material: Polypropylene
- Voltage: 18 V
- Chuck Capacity: 1.5-13 mm
- Beats per Minute: 0-9350/34000 bpm
- Maximum Drilling Capacity [Wood]: 40 mm
- Maximum Drilling Capacity [Metal]: 13 mm
- Maximum Drilling Capacity [Masonry]: 13 mm
- Battery Capacity: 5.0 Ah
- No Load Speed: 0-550/2000 rpm
- Battery chemistry: XR Li-Ion
- Max Torque (Hard): 70 Nm
- Max Torque (Soft): 27 Nm
- Power Output: 460 Watt
- Sound Pressure: 89 dB(A)
- Sound Pressure Uncertainty: 3 dB(A)
- Sound Power: 100 dB(A)
- Sound Power Uncertainty: 3 dB(A)
- Hand/Arm Vibration - Drilling into metal: <2.5 m/s²
- Uncertainty K 1 (Vibration): 1.5 m/s²
- Hand/Arm Vibration - Hammer drilling into concrete: 11.5 m/s²
- Uncertainty K 2 (Vibration): 1.6 m/s²
- Hand/Arm Vibration - Screw driving without impact: <2.5 m/s²
- Uncertainty K 3 (Vibration): 1.5 m/s²
- Warranty: 36 Months

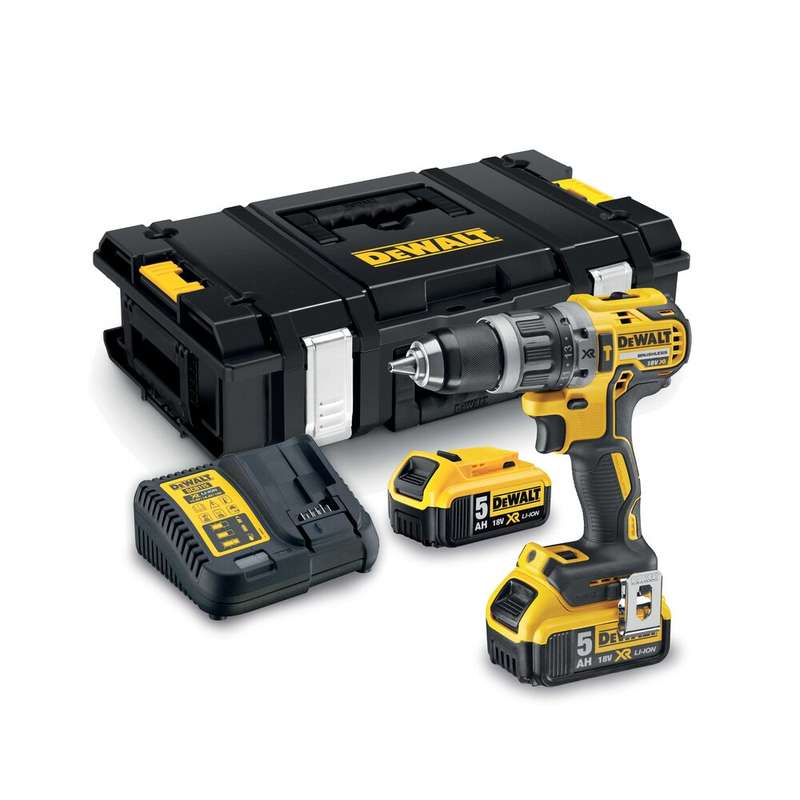

What's in the box
x 1 DEWALT 18V Brushless Hammer Drill
x 2 5.0Ah Li-Ion battery pack with state of charge indicator
x 1 Multi-voltage XR charger
x 1 Belt hook
x 1 Magnetic bit holder
x 1 TSTAK heavy duty kitbox
