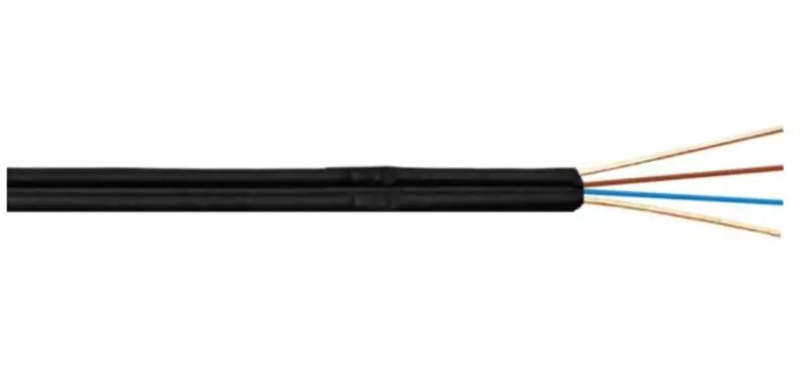

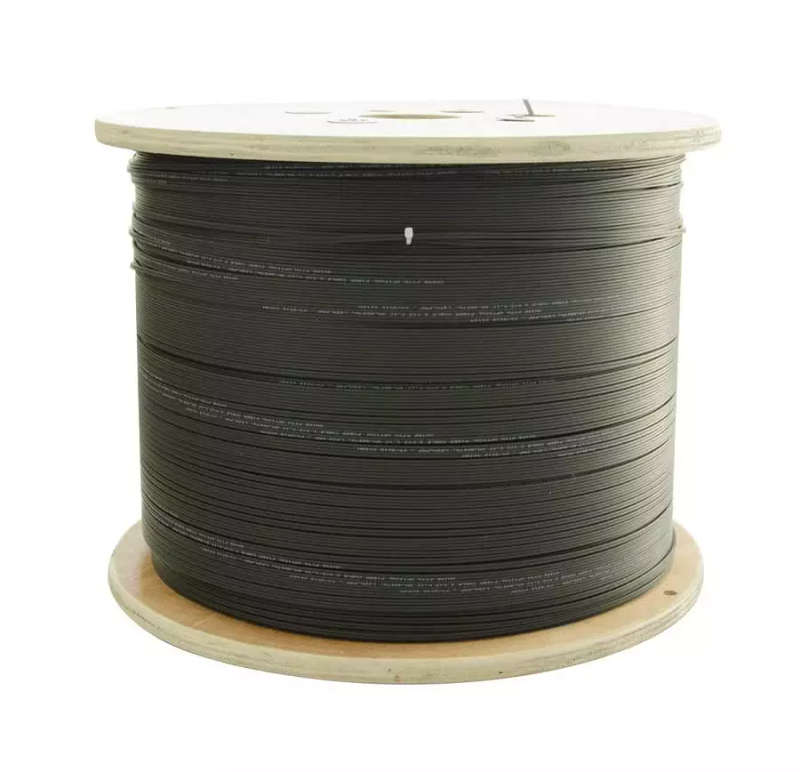

1km Roll | 2 Core Single Mode Flat OS2 100Gbps Fiber Optic Drop Cable | G.657A2 Outdoor Fiber Cable
Single Mode fiber optic patch cables come with a 9 micron diameter glass core. With the cladding layer, they are 125 micron, and with the buffer layer they are 250 micron. To prevent excessive loss (attenuation), you should ensure that you only connect single mode cables to other single mode fibers already in your system.
This Fiber Cable exceeds OS2 100Gbps Rated Requirements which has a requirement of <0.40 dB/km signal loss at 1310nm and <0.30 dB/km signal loss at 1550nm. Please see technical product specifications for signal attenuation and compliance on pdf at 2 Core Fiber Optic Cable with Kevlar Strength Members
Specifications:
- Indoor/Outdoor Cable
- Diameter : 3mm

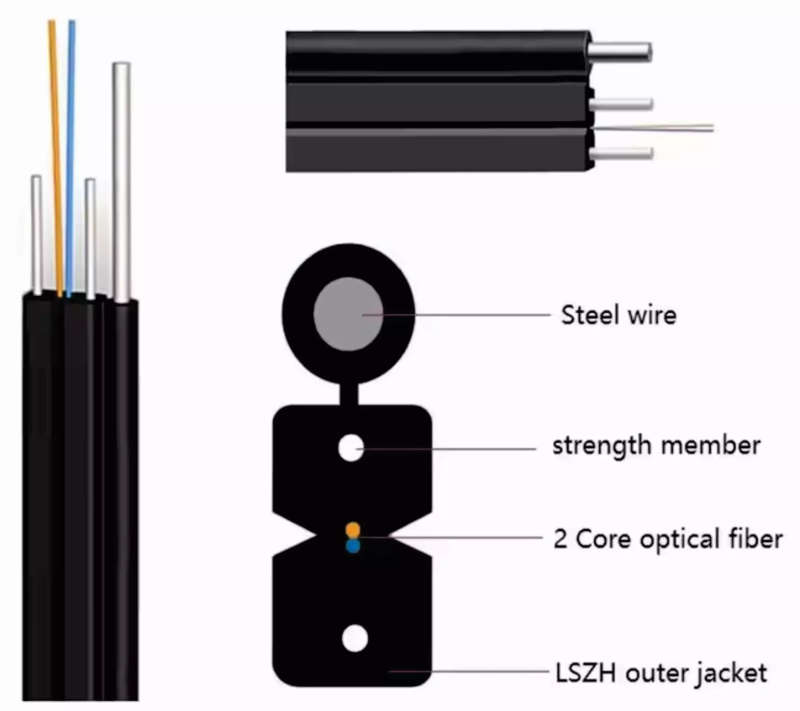

- 2*0.45mm steel strength member
- 2 Fiber Cores
- G.657A2, 2.0x3.0mmmm
- LSZH (Low Smoke, Zero Halogen)
- UV resistant
- Max Speed : 100Gbps OS2 Rated
Tensile Strength
Always take care when installing fiber cables to ensure not to break the fiber inside the cable by over-bending or twisting cables. These cables strengthened by the 2*0.45mm steel wires provide more than enough pulling strength to easily install these cables in difficult environments without breaking the cable.
G.657A2 Bend Ratio vs Other Specifications
| Fibre Type | Bending Radii | Attenuation Increase (db) |
| G652D | 100 turns on 25mm mandrel at 1310/1550nm | 0.03 |
| G652D | 100 turns on 30mm mandrel at 1625nm | 0.1 |
| G657A2 | 10 turns on 15mm mandrel at 1550nm | 0.05 |
| G657A2 | 10 turns on 15mm mandrel at 1625nm | 0.1 |
| G657A2 | 1 turn on 10mm mandrel at 1550nm | 0.1 |
| G657A2 | 1 turn on 10mm mandrel at 1625nm | 0.2 |
| G657A2 | 1 turn on 7.5mm mandrel at 1550nm | 0.5 |
| G657A2 | 1 turn on 7.5mm mandrel at 1625nm | 1.0 |
