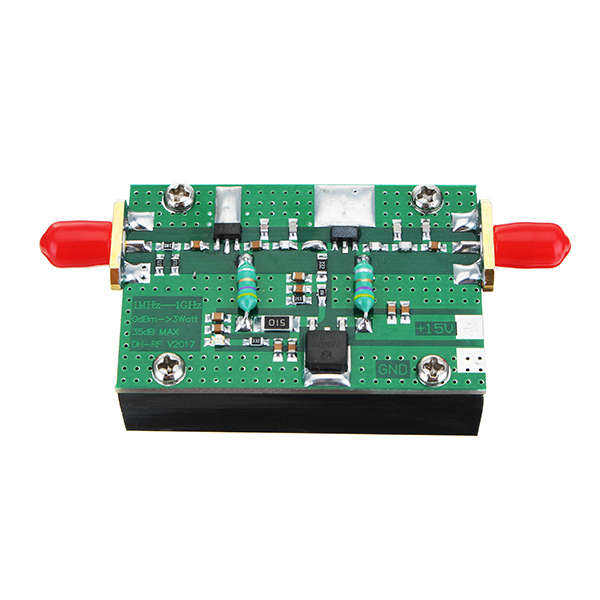

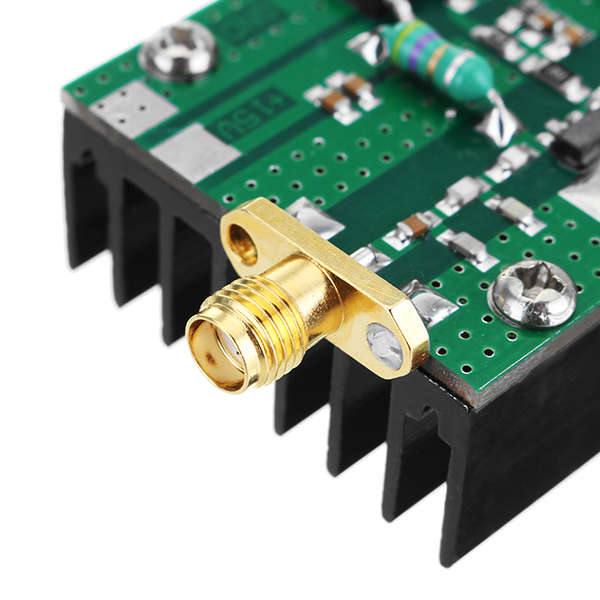

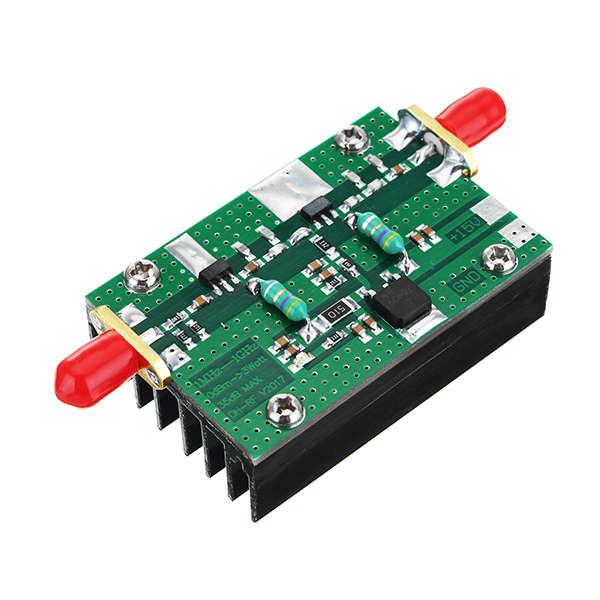

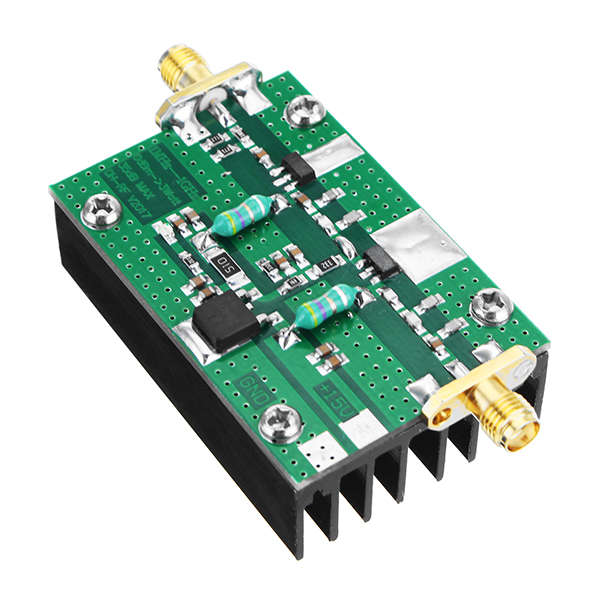

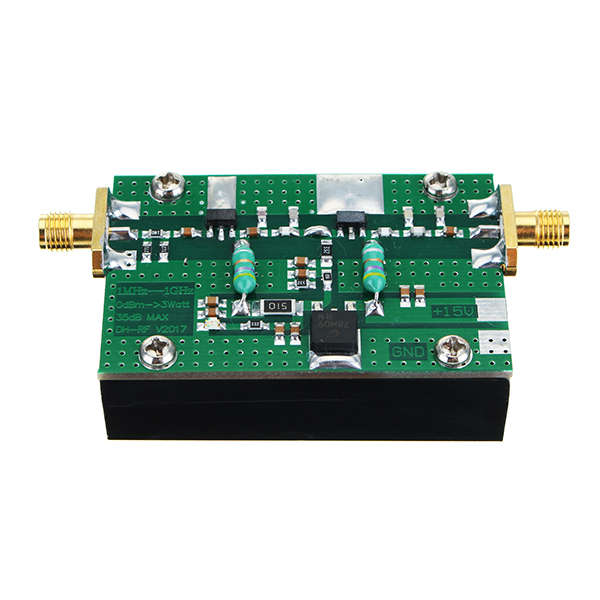

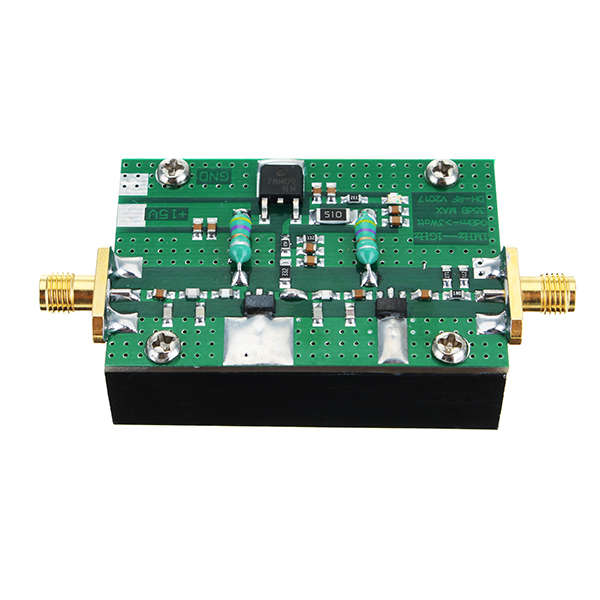

1MHz-1000MHZ 35DB 3W HF VHF UHF FM Transmitter Broadband RF Power Amplifier For Ham Radio

20 available / new

R928.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641102837

Application:

This Broadband RF power amplifier, suitable for all kinds of radio, FM radio remote control toy, radio and so on, the input of 1 MW (0DBM) maximum output of 3 watts, 15V voltage power supply, broadband 1MHZ to 1000MHZ can work. Because of the excellent design, in low frequency can reach 35DBM (3W), when 500M the output power can reach 32DBM (1.6W).

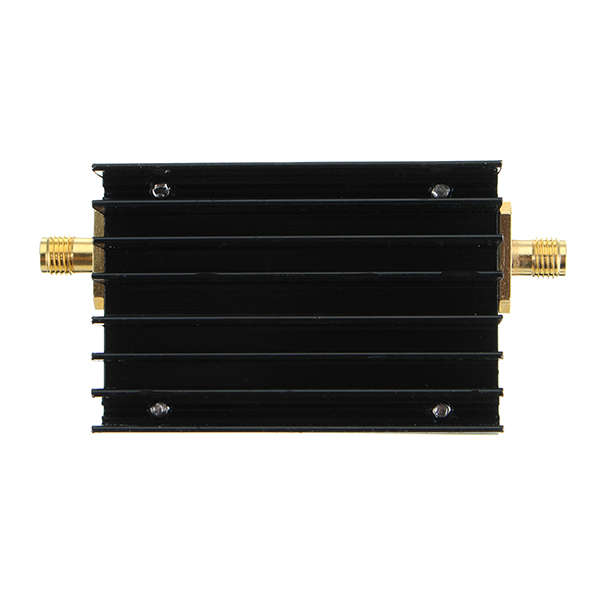

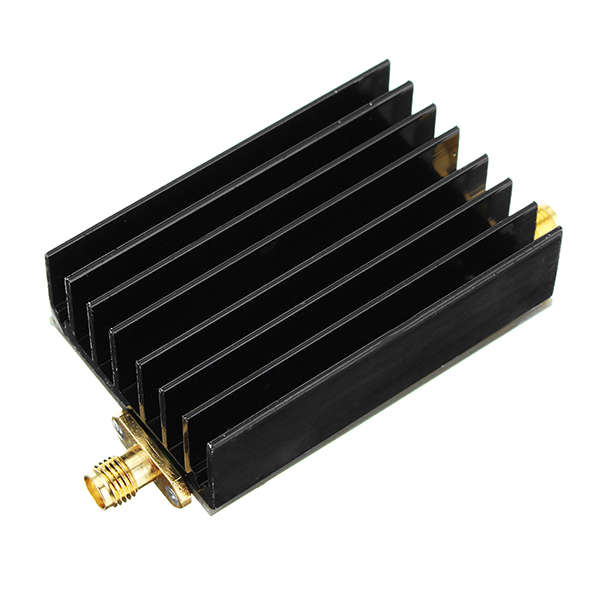

Power amplifier size 37MMx56CMx1.5CM (behind with a large heat sink)

Technical indicators:

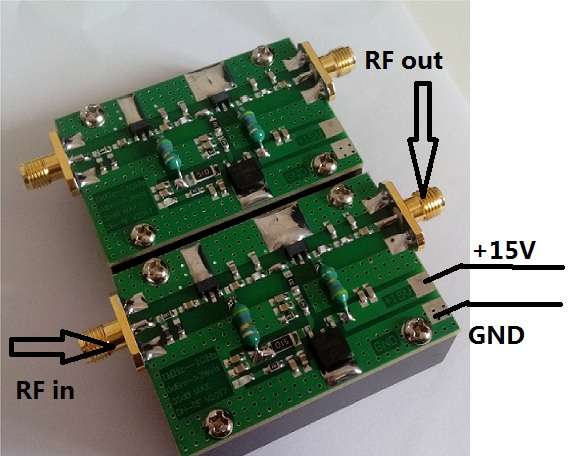

1. Supply voltage: + 15V DC (typical current value 450mA / maximum gain output)
2. The working frequency: 1MHZ-1000MHZ, input and output impedance: 50 ohms;
3. The maximum output range: 35dbm (3W / 50 ohms)
4. Gain: 35 dB (see the specific curve S21 curve, there are differences between different frequency)
5. The input signal size: low frequency band (0DBM / 1 mW), high frequency band (2DBM)

Package included:

1 x1MHz-1000MHZ 3W HF VHF UHF FM transmitter RF Power Amplifier For Ham Radio
