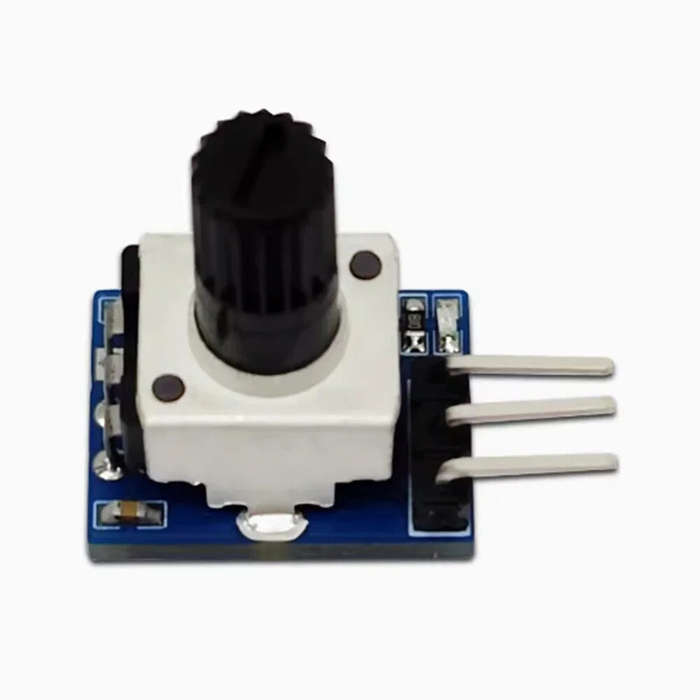

1pc - Small Servo Motor Electric Tuning Tester PWM Control DIY Brushless Fan Model Aircraft Motor PW

Description:

It is easy to detect and set the virtual position, jitter, and median of the server. Can connect two sets of servos or electronic controllers; Controlled by a microcontroller, it has good stability and high accuracy. Rotate the knob to detect the servo. If connected to an electronic speed controller (with or without brushes), it can be used to manually adjust the speed without the need for remote control devices. It is very practical for testing the performance of the speed controller or motor, and there is no need to connect the remote control and receiver again. It is equivalent to a 'manual receiver' function, simulating transmitter steering through a knob.

Parameters:

Adjustment method: manual
Power input voltage: 5~24V
Scope of use: Testing brushless motors, servos
Output signal: 50Hz high level 0.5ms to 2.5ms

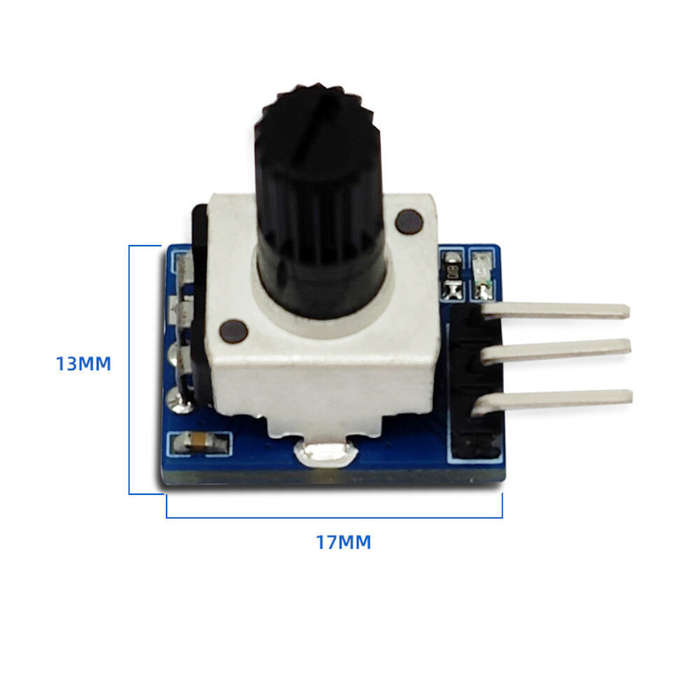

Product size: 17 * 13mm
Weight: 3.5g
