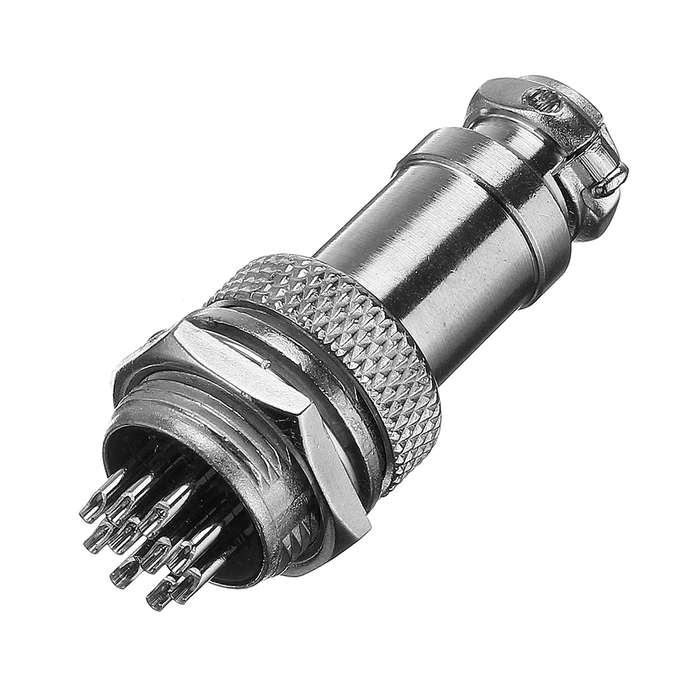

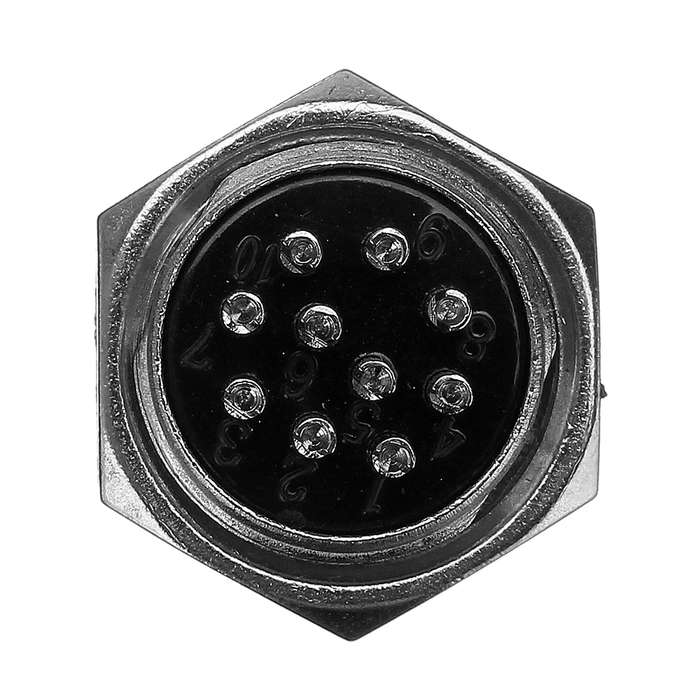

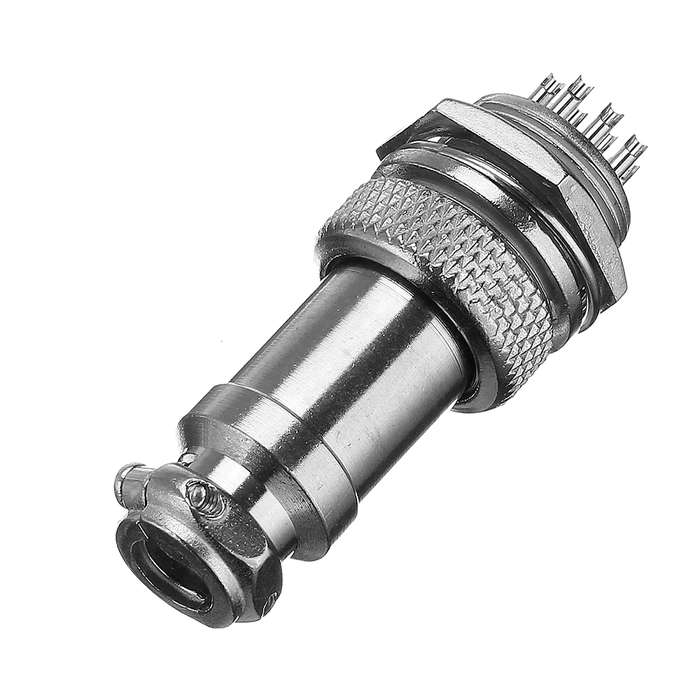

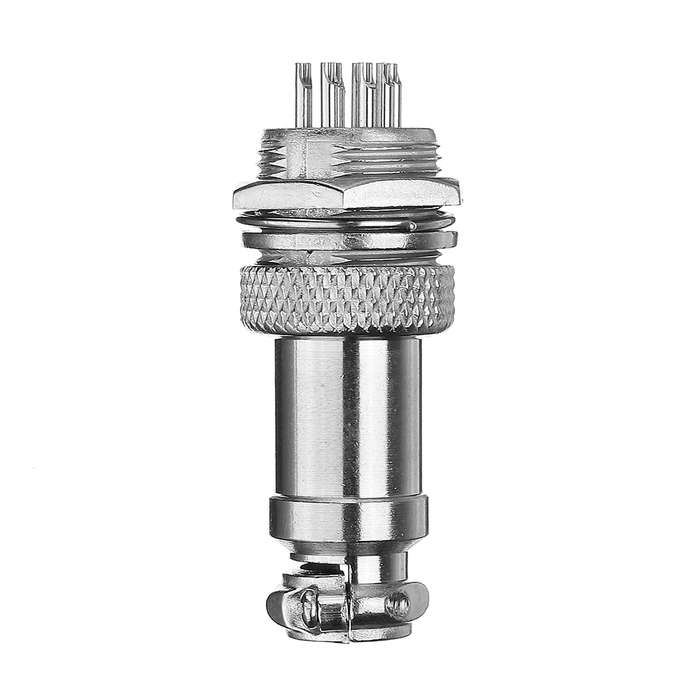

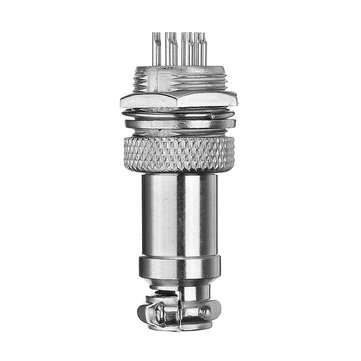

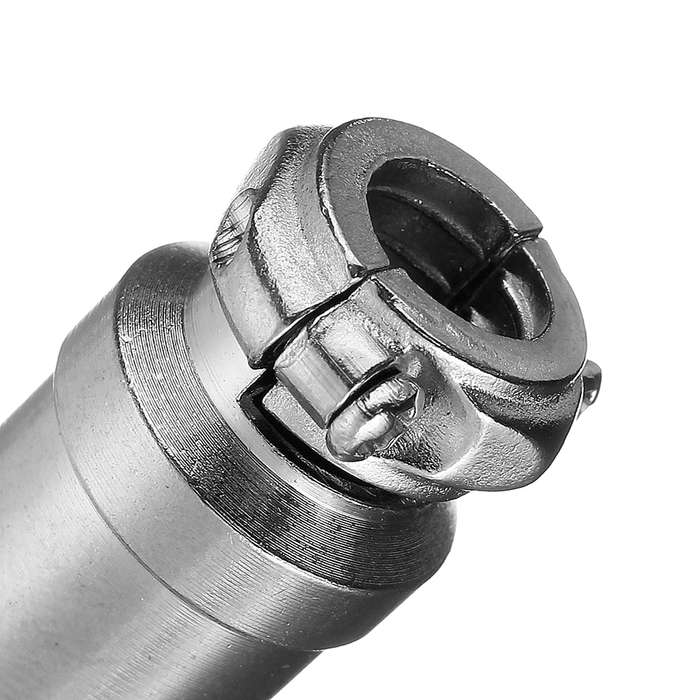

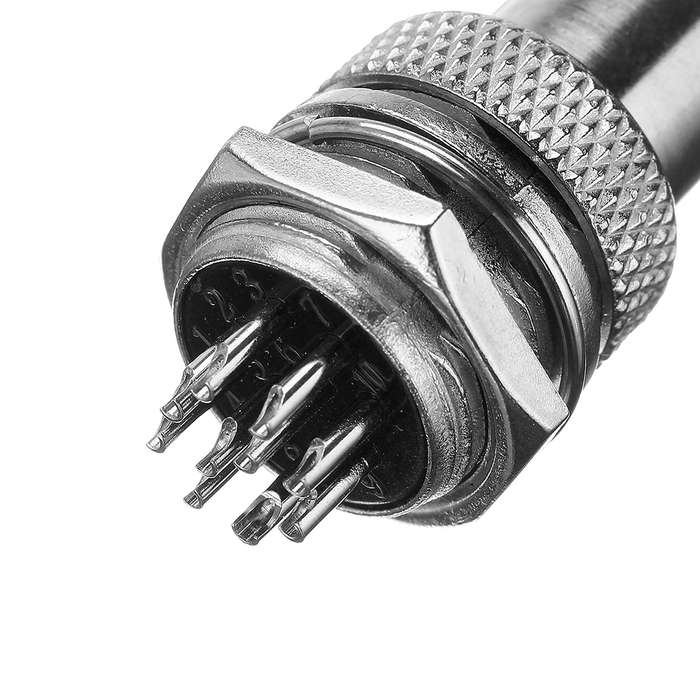

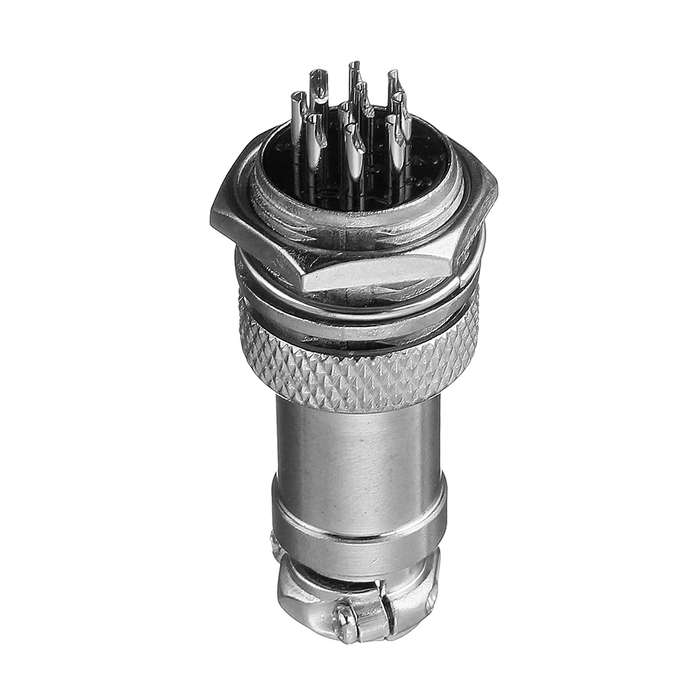

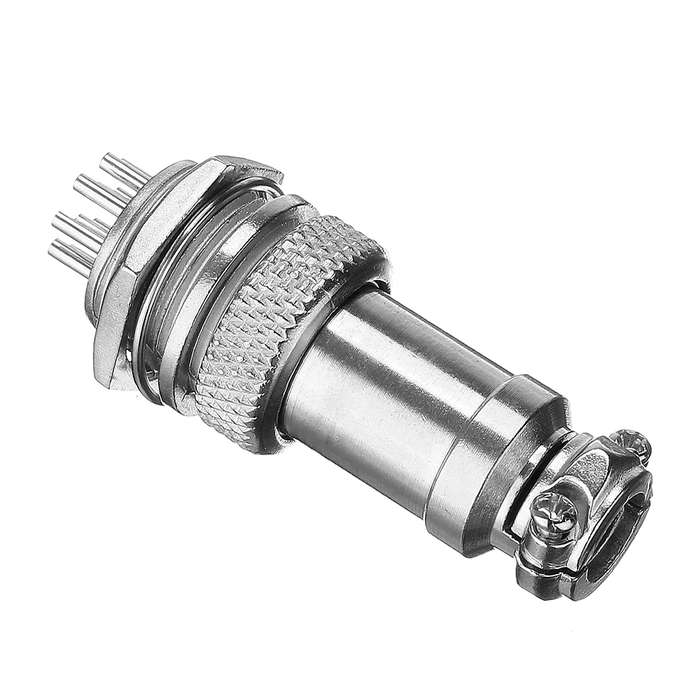

1Set GX16-10 Pin Male And Female Diameter 16mm Wire Panel Connector GX16 Circular Aviation Connector

Detail informations: Model: GX 16 Environmental conditions Ambient temperature: -50 ~ +70 C Relative humidity: up to 98% at +40 C Atmospheric pressure: up to 4,4 kpa Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2 Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2 Centrifugal: acceleration 250m/s2 Plug diameter: 16 mm Main technical characteristics: Contact resistance: (each contact pair)Less than 0.005 Insulation resistance: In normal conditions, not less than 1000M; after constant warm tests, not less than 20M. Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single foot separation Force Temperature Rise: at rated load, the contact of the temperature rise should not exceed +50 C ambient temperature Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged. Application: Straight and unshielded type, series circular connector Used widely in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems, audio, video, test and measurement, communications, etc. Package included: 1 x Male Connector 1 x Female Connector
